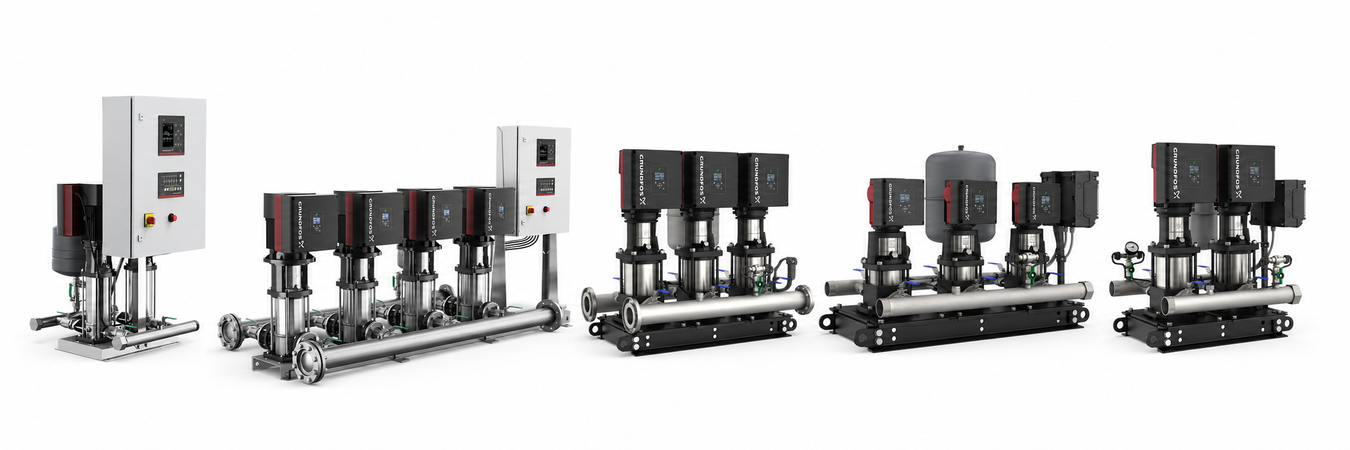

Grundfos Multi Booster Pumps

Low water pressure across a building, a farm or a work site is usually a pump problem rather than a plumbing problem. A Grundfos hydro booster set solves it with one piece of equipment. Two or more pumps arrive already mounted, piped, wired and factory-tested on a single frame, so your installer connects suction, discharge and power instead of building a system out of loose parts.

Pumptastic carries the full Grundfos Hydro Multi-E and Hydro MPC-E range, with every model priced in Australian dollars on this page. Sets here start around $9,500 for a small two-pump Multi-E and run past $144,000 for a large three-pump MPC-E. We are based in Western Australia, and we ship Australia wide. If you would rather talk it through than scroll, call (08) 6384 5884 and you will get someone who works with these pumps every day.

What Comes in a Grundfos Booster Set

Every set on this page is built by Grundfos, not put together locally from separate components. A typical set includes:

• Two, three or four CR-series multistage pumps piped in parallel
• Suction and discharge manifolds in stainless steel
• An isolating valve and a non-return valve on each pump
• Pressure transmitter and pressure gauge, already fitted and wired
• A diaphragm pressure tank on the discharge side
• A common base frame, plus a control cabinet on MPC-E models

The pumps share the work between them. At the morning peak, extra pumps ramp up. At three in the morning when the building is quiet, one pump ticks over slowly. Your taps, showers and process lines see steady pressure either way. If one pump drops out, the others pick up the load, so a single fault does not become a water outage.

That last point is why so many Australian consulting engineers specify these sets. A hospital ward, an apartment tower or a mine camp cannot afford to lose water because one pump failed on a Sunday.

Hydro Multi-E or Hydro MPC-E: Which One Suits Your Job

Both families use the same proven CR pump hydraulics. The difference is how they are controlled and how big the job is.

Hydro Multi-E: the simpler option

There is no separate control cabinet. The variable speed drive and the controller sit on each pump motor, and the pumps talk to each other directly. Any pump can act as the master, so you have backup at the control level too, not just the pump level. Your contractor commissions it through the display on the lead pump, or over Bluetooth using the Grundfos GO app.

This is the right fit for hotels, schools, aged care homes, gyms, retail centres, smaller apartment blocks, wash bays and irrigation duties. Multi-E 2 means two pumps, Multi-E 3 means three.

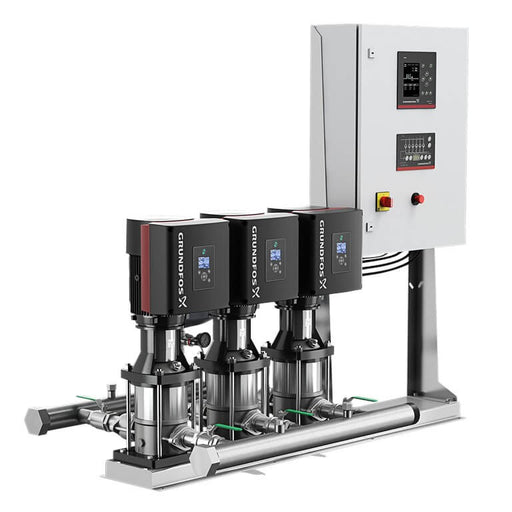

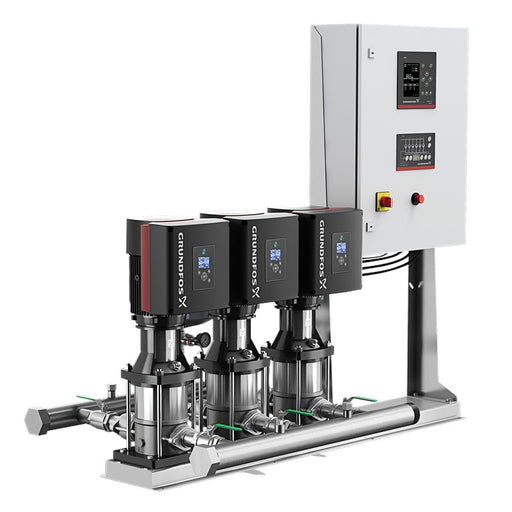

Hydro MPC-E: for larger or more complex jobs

The MPC-E adds a dedicated CU 352 control panel. That brings cascade control across up to six pumps, pipe-fill mode for filling empty risers gently, proportional pressure control, and redundancy on the sensors. An optional CIM module connects the set to a building management system over Modbus, BACnet or Profinet.

Specify MPC-E for hospitals, high-rise towers, water authorities and industrial process water, or any project where the engineer has written a control specification. The MPC-E sets on this page reach flows above 340 cubic metres per hour.

A rough rule: if nobody has asked for building management integration and your duty sits under about 70 cubic metres per hour, a Multi-E will usually do the same job for less money. If your project needs single pumps rather than a packaged set, our Grundfos vertical multistage pumps use the same CR hydraulics, and our Grundfos pressure boosting pumps cover smaller domestic and light commercial duties. For a compact single-pump option, look at the Grundfos CMB range.

Sizing a Booster Set: Three Numbers We Need

Buying the wrong booster set is an expensive mistake at these prices, so it is worth pinning down three things first.

1. Peak flow. The most water the system will ever need at one time, in litres per second or cubic metres per hour. Work out what runs at the same time, not the total of every fixture on the drawing.
2. Discharge pressure. What you need at the highest or furthest outlet, in metres of head or kPa. Allow for the height of the building and for friction losses along long pipe runs.
3. Suction conditions. Is the set fed from a storage tank, from town mains already under pressure, or from a bore? Inlet pressure changes which model suits.

Send those three numbers through our contact page and we will come back with a model number and a price, usually the same business day. A hydraulic schedule or a set of drawings works just as well.

Check your power supply before you order, too. Most sets in this range need 380 to 415V three phase. A smaller number of Multi-E models run on 200 to 240V single phase. Use the Pump Phase filter above to show only what suits your switchboard.

Where These Sets Get Used Around Australia

Apartment towers in Perth, Sydney and Melbourne use them to get usable pressure to the top floor at dinner time. Hospitals and aged care facilities use them because the redundancy is built in. Mine camps and pastoral stations across the Pilbara, the Goldfields and the Kimberley use them because the water has to keep running with no technician on site. Broadacre farms running pivots and long mainlines use them to hold flow steady across the paddock.

If your water comes from a bore, the booster set sits downstream of the bore pump. Pair it with one of our submersible bore pumps and we will match the two hydraulically so they are not fighting each other. If you need extra storage or a larger vessel on the discharge side, our pressure tanks fit the same installation, and our pump controllers and pressure transducers cover replacements and upgrades.

Buying From Pumptastic

Every set on this page shows a live Australian price, so you can budget a project without waiting a week for a quote to come back. That is unusual in this part of the market and it is deliberate.

Because these are large made-to-order systems rather than shelf stock, ring us on (08) 6384 5884 before you commit so we can confirm current lead time on your exact model number. We regularly sharpen pricing on multi-unit and project work, so it is worth the call either way.

We are a Western Australian business and we keep critical Grundfos spares here rather than ordering them in from overseas when something fails. That includes shaft seals, pressure transmitters and replacement diaphragm tanks. Our Grundfos parts range and Grundfos electric motors cover the common service items. Freight timeframes and terms are set out on our delivery and shipping page.

Frequently Asked Questions

What is a Grundfos hydro booster set?

It is a complete pressure boosting system built and tested by Grundfos. Two or more multistage pumps sit on one base frame with stainless manifolds, valves, a pressure tank, a transmitter and controls already fitted. You connect suction, discharge and power, then commission it. You are not assembling a system from parts on site.

Which booster set suits a commercial building?

For most hotels, offices, schools and aged care sites, a Hydro Multi-E 2 or Multi-E 3 is the sensible choice. It is compact, has redundancy built in and is quick to commission. Step up to the Hydro MPC-E with the CU 352 controller for high-rise towers, hospitals, or any job needing building management integration.

How much does a Grundfos booster set cost in Australia?

It depends entirely on the duty point and how many pumps are in the set. Prices on this page run from roughly $9,500 for a small two-pump Multi-E up to about $144,000 for a large three-pump MPC-E. Every price shown is in Australian dollars. Call us for project or multi-unit pricing.

What is the real difference between Multi-E and MPC-E?

The Multi-E has no separate control cabinet. The pumps run themselves and coordinate with each other. The MPC-E adds a CU 352 panel with advanced cascade control and optional fieldbus for Modbus, BACnet and Profinet. Multi-E covers most commercial duties. MPC-E covers the complex and critical ones.

Can I run a booster set on single phase power?

Some smaller Hydro Multi-E models are available in 200 to 240V single phase. Larger sets need 380 to 415V three phase. Check the specifications on the individual listing, or use the Pump Phase filter above to narrow the range to what your board can supply.

Are these sets suitable for drinking water?

Grundfos builds these sets with stainless wetted parts and offers drinking water approvals on many models, but the approvals vary by configuration and by which materials are specified. Tell us the application when you enquire and we will confirm the certification on the exact model number before you order rather than guessing from the catalogue.

How do I size a set for my site?

Send us your peak flow, the discharge pressure you need, and your suction conditions. Our engineers will come back with a sized model and a price, usually the same business day. Drawings or a hydraulic schedule are fine if you have them. Get in touch through the contact page.

Do you deliver to regional Western Australia?

Yes. We dispatch from our WA warehouse to Perth metro and to regional centres including Geraldton, Kalgoorlie, Albany, Karratha, Port Hedland and Broome, as well as every other state. Because booster sets are heavy freight rather than parcel post, we quote freight on these individually. See our wider booster pump range if you need something smaller that ships as a standard parcel.

What is the lead time?

These are large configured systems, so lead time depends on the model and on current Grundfos supply. Call (08) 6384 5884 with your model number and we will give you a straight answer before you order.

Do you stock spare parts for these sets?

Yes. We hold common service items including shaft seals, pressure transmitters and diaphragm tanks in Western Australia, so a planned shutdown is not held up waiting on overseas freight. Browse the parts range or call us with the pump nameplate details.

What other Grundfos pumps do you carry?

Quite a lot. The full Grundfos range at Pumptastic covers bore pumps, sewage and drainage pumps, circulators, multistage pumps and motors alongside these booster sets.
