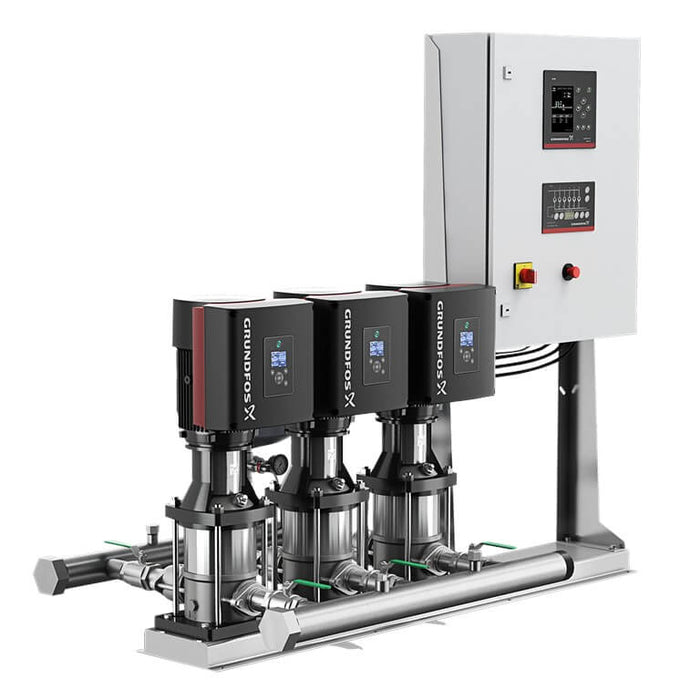

Grundfos Hydro MPC-E 3 CRNE 5-2 Booster Set - 99726908
by Grundfos
SKU 99726908
Original price
$28,813.74
-
Original price
$28,813.74
Original price
$28,813.74
$28,813.74
-
$28,813.74
Current price
$28,813.74
📢 For orders over $100, FREE Shipping Australia-wide

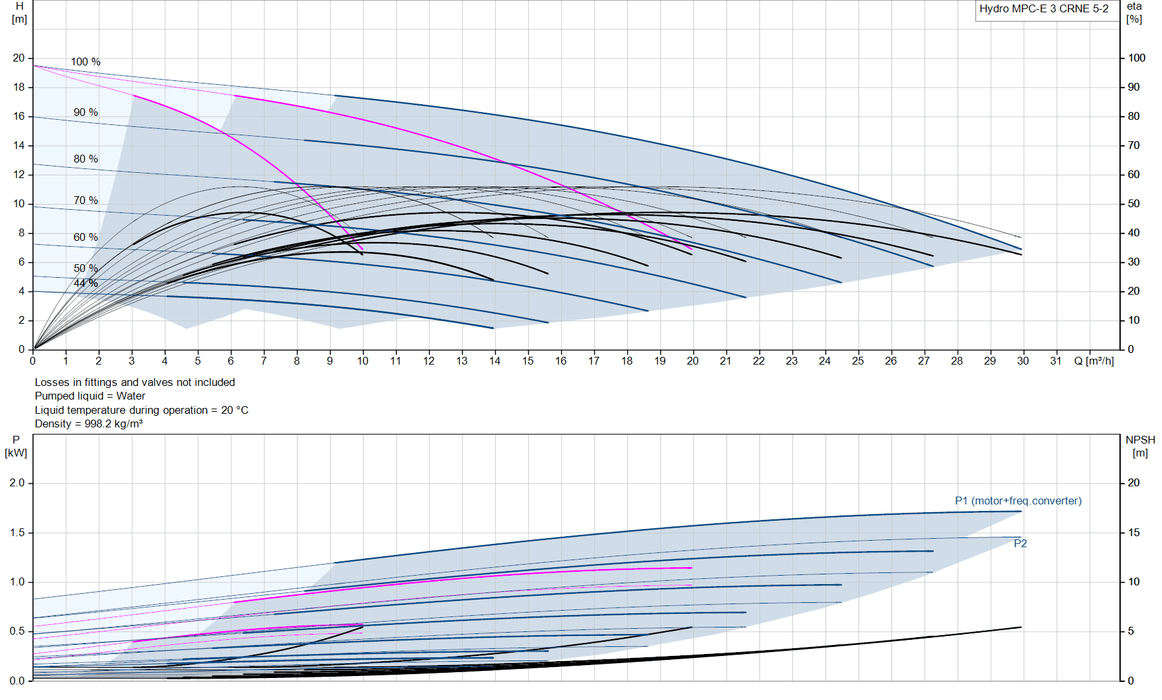

The Grundfos Hydro MPC-E 3 CRNE 5-2 is a pressure boosting system with 3 parallel-connected, frequency-controlled CRNE 5-2 multistage centrifugal pumps. It delivers a rated flow of 21 m³/h (maximum 30.6 m³/h) at a rated head of 13 m (maximum 19 m). The inlet and outlet manifolds are stainless steel EN 1.4571 / AISI 316 Ti with R 2 (2 inch) connections, rated PN 16 for a maximum operating pressure of 16 bar, and the set includes an 18 l diaphragm tank. It handles liquid temperatures from 5 to 60 °C and runs on a single-phase 220-240 V supply.
Suitable Applications
- Commercial heating
- Commercial water pressure boosting
- District heating
- District cooling
- Wash and clean
- Industrial heating
- Cooling
- Industrial water supply
- Desalination
- Drinking water treatment
- Water distribution
- Irrigation
- Community water supply
- Wastewater treatment
- Rotor & spray irrigation
- Ground water transfer
- Pivot
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
- Booster systems with frequency-controlled pumps
Key Specifications
| Product Name | Hydro MPC-E 3 CRNE 5-2 |
|---|---|
| Product Number | 99726908 |
| EAN | 5713833460389 |
| Pump Type | Booster system with 3 parallel-connected, frequency-controlled CRNE multistage centrifugal pumps |
| Number of Pumps | 3 |
| Rated Flow | 21 m³/h |
| Maximum Flow | 30.6 m³/h |
| Rated Head | 13 m |
| Maximum Head | 19 m |
| Main Pump | CRNE 5-2 (99631161) |
| Liquid Temperature Range | 5 to 60 °C |
| Max Operating Pressure | 16 bar (PN 16) |
| Manifold Connections | R 2 (2 inch) |
| Manifold Material | Stainless steel EN 1.4571 / AISI 316 Ti |

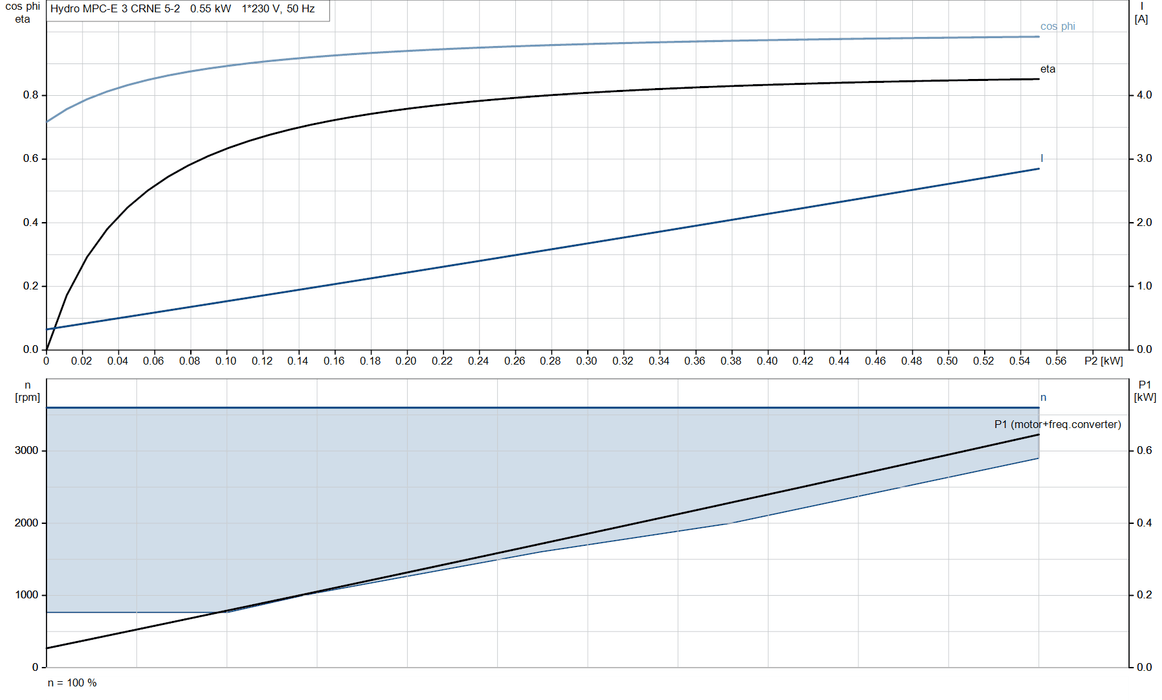

| Motor Power (per pump) | 0.55 kW |
| Voltage | 1 x 220-240 V |
| Frequency | 50 / 60 Hz |
| Rated Current of System | 8.7 A |
| Enclosure | IP54 |
| Diaphragm Tank | 18 l |
| Net / Gross Weight | 417 / 427 kg |
| Country of Origin | AU |
