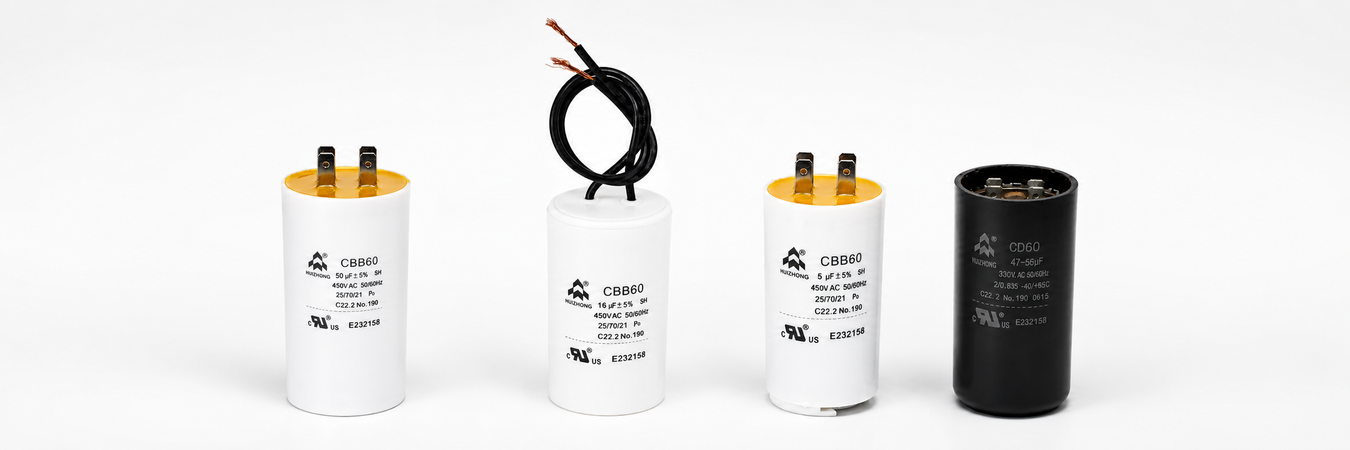

Pump Capacitors Australia

Start, Run and Pump Capacitors for Every Pump

If your pump hums but refuses to start, trips the breaker, or runs hot and shuts down unexpectedly, a faulty capacitor is one of the most likely causes. Pump capacitors are small electrical components but they carry enormous responsibility. Without a functioning capacitor, your pump motor simply cannot do its job.

At Pumptastic, we stock a wide range of pump capacitors to suit residential and commercial applications across Australia, including pool pumps, water pumps, bore pumps, and irrigation systems.

What Are Pump Capacitors and Why Do They Matter?

A pump capacitor is an electrical component that stores and releases energy to help a motor start or run efficiently. Most single-phase electric motors, including the motors inside pool pumps and water pumps, rely on capacitors to generate the phase shift needed to create torque and get the motor spinning.

Without a correctly rated capacitor, your pump motor will either fail to start altogether or run inefficiently, drawing too much current and shortening the lifespan of the motor. Replacing a faulty capacitor is one of the most cost-effective repairs you can make, typically costing a fraction of a full motor or pump replacement.

Start Capacitors vs Run Capacitors - What Is the Difference?

These two types of capacitors perform different roles in a motor circuit and are not interchangeable.

A start capacitor provides a high-energy boost during the initial moment of motor startup. Once the motor reaches around 75 percent of its rated speed, a centrifugal switch disconnects the start capacitor from the circuit. Start capacitors are rated in microfarads (uF) and are typically used for short bursts only.

A run capacitor stays in the circuit continuously while the motor is operating. It improves the efficiency and power factor of the motor throughout the full run cycle. Run capacitors are built to handle continuous voltage and are generally more durable by design.

Some motors, known as capacitor start-capacitor run (CSCR) motors, use both types simultaneously for optimal performance. Knowing which type your pump requires is essential before purchasing a replacement.

Signs Your Pump Capacitor Needs Replacing

Identifying a failing capacitor early can save you from a full motor burnout. Watch for these warning signs:

A pump that hums loudly but does not start is a classic indicator of a failed start capacitor. The motor receives power but cannot generate enough torque to begin rotating.

A pump that starts slowly, struggles under load, or overheats is often suffering from a deteriorating run capacitor. Excess heat is damaging to motor windings and can cause permanent failure if left unchecked.

Swelling, bulging, or oil leakage on the capacitor body is a clear visual sign the component has failed and must be replaced immediately.

Frequent tripping of your circuit breaker or RCD during pump startup is another symptom worth investigating. An undersized or faulty capacitor forces the motor to draw excessive current.

Common Pump Capacitor Failure Symptoms in Australian Conditions

Australian summers are brutal, particularly in Western Australia, Queensland, and the Northern Territory. High ambient temperatures accelerate capacitor degradation. Capacitors stored in direct sunlight or in poorly ventilated pump enclosures will fail faster than manufacturer specifications suggest.

Additionally, voltage fluctuations that occur in regional and rural areas of WA and regional Australia can stress capacitor dielectrics over time. If you are in a remote or off-grid location, investing in quality capacitors rated for extended temperature ranges is strongly recommended.

How to Choose the Right Pump Capacitor

Selecting the correct replacement capacitor comes down to three key specifications: microfarad (uF) rating, voltage rating, and physical size.

Always match the microfarad rating exactly. Using a capacitor with a higher or lower uF value will cause incorrect motor behaviour, reduced efficiency, and potential damage. The uF value is printed on your existing capacitor or listed in your pump motor documentation.

The voltage rating of the replacement capacitor must meet or exceed the original specification. Installing an underrated capacitor will cause it to fail quickly, sometimes dangerously.

Matching Capacitor Ratings to Your Pump Motor

Check your existing capacitor label or your motor nameplate for the following information before ordering:

• Capacitance rating in microfarads (uF)

• Voltage rating (VAC)

• Type: start or run

• Physical dimensions and terminal type

If your capacitor is damaged beyond reading, cross-reference your pump model number with the manufacturer specifications. Our team at Pumptastic can assist with identification.

Capacitors for Pool Pumps, Water Pumps and Bore Pumps

Pool pump capacitors are among the most commonly replaced components in Australian backyards. Seasonal use, combined with heat and outdoor exposure, means these components typically need replacement every few years in hotter climates.

Bore pump capacitors and irrigation pump capacitors face different conditions, including submersible environments and continuous run cycles, which can stress capacitors differently. Always confirm the operating duty cycle when selecting a replacement.

Pump Capacitors for Western Australia and Regional Areas

Western Australia presents unique challenges for pump systems. Extreme summer temperatures across Perth, the Pilbara, Kimberley, and Goldfields regions mean pump systems work harder and components degrade faster.

Regional property owners often deal with limited access to tradespeople and long waits for parts. Stocking a spare pump capacitor is a practical and low-cost strategy for WA farms, lifestyle blocks, and rural properties. A failed pump in a remote location during a heatwave is a serious problem. Having a replacement capacitor on hand can be the difference between a ten-minute fix and days without water.

Why WA Conditions Affect Pump Capacitor Lifespan

Capacitor electrolyte degradation accelerates above 40 degrees Celsius, temperatures that are routine across inland WA during summer. Pumps running in direct sun or enclosed sheds are exposed to even higher ambient temperatures.

Pumptastic offers fast dispatch to Perth, regional WA, and all Australian states and territories. We understand that for many customers, especially those in rural and remote areas, reliability and speed of delivery are critical.

Frequently Asked Questions

1. How do I know if my pump capacitor is blown?

The most common signs are a pump that hums but does not start, a motor that overheats quickly, or a visibly swollen capacitor casing. A multimeter with capacitance testing function can confirm a failed capacitor by comparing the measured uF value to the rated value printed on the component.

2. Can I replace a pump capacitor myself in Australia?

Yes, capacitor replacement is a relatively straightforward task for a handy homeowner. However, always ensure the pump is fully isolated from the power supply before opening any electrical enclosure. Capacitors can hold a charge even after power is disconnected. If you are unsure, engage a licensed electrician.

3. What capacitor do I need for my pool pump in WA?

The capacitor specifications depend on your specific pump motor. Check the label on the existing capacitor for the uF and voltage rating. Common pool pump capacitor values in Australia range from 20uF to 50uF at 250VAC to 450VAC. Pumptastic stocks a broad range to cover most residential pool pump brands sold in Australia.

4. How long does a pump capacitor last in Australia?

In moderate climates, a quality run capacitor may last 8 to 12 years. In hot regions like WA, Queensland, and the NT, expect a shorter lifespan of 4 to 7 years due to elevated operating temperatures. Start capacitors generally last longer as they are only in circuit for seconds at a time.

5. Do you ship pump capacitors to regional Western Australia?

Yes. Pumptastic ships pump capacitors to all postcodes across Western Australia, including regional centres like Geraldton, Kalgoorlie, Broome, Karratha, and Port Hedland, as well as remote stations and rural properties. Delivery times vary by location but we dispatch quickly to minimise your downtime.

Shop Pump Capacitors at Pumptastic

Pumptastic is your trusted Australian supplier for pump capacitors, motor components, and pump accessories. Whether you are maintaining a backyard pool pump in Perth, running irrigation on a WA farm, or servicing bore pumps across regional Australia, we have the right capacitor at a competitive price.

Browse our full range of pump capacitors and order with confidence. Fast dispatch, Australia-wide delivery, and genuine product support from people who know pumps.
