Grundfos Hydro MPC-E 3 CRNE 95-2-2 Booster Set - 99743558
📢 For orders over $100, FREE Shipping Australia-wide

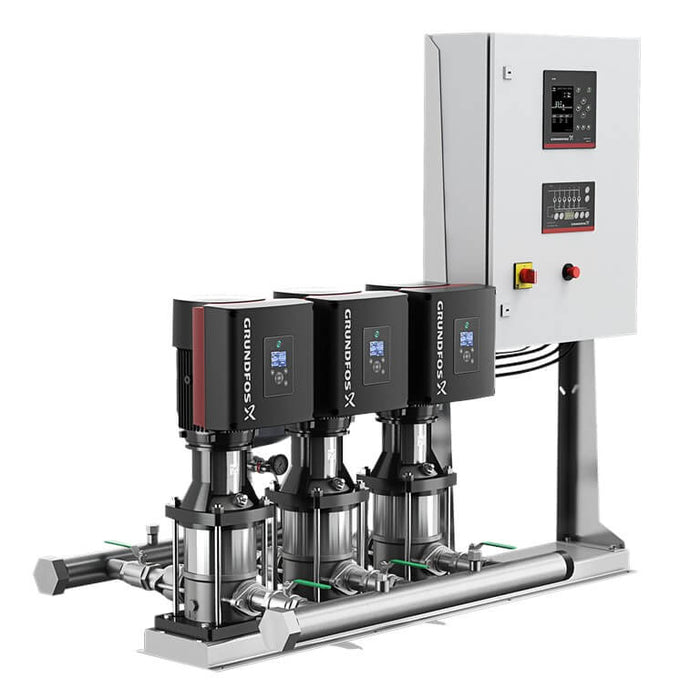

Grundfos Hydro MPC-E is a complete pressure boosting system with 3 parallel-connected, frequency-controlled CRNE 95-2-2 multistage centrifugal pumps mounted on a common base frame with integrated controller cabinet. Designed for commercial, municipal, industrial, water treatment, and irrigation applications, the system maintains constant pressure through continuous speed control regardless of demand fluctuations. It features stainless steel pumps and manifolds, intelligent cascade control, automatic pump changeover, dry-running protection capability, PID control, redundant sensor support, alarm logging, and advanced monitoring through the Grundfos CU 352 controller. Each pump is driven by a high-efficiency MGE motor (P2 = 18.5 kW) and operates with variable frequency drives to ensure optimum energy efficiency and system performance.
Suitable Applications
- Commercial heating
- Commercial water pressure boosting
- District heating
- District cooling
- Wash and clean
- Industrial heating
- Cooling
- Industrial water supply
- Desalination
- Drinking water treatment
- Water distribution
- Irrigation
- Community water supply
- Wastewater treatment
- Rotor & spray irrigation
- Ground water transfer
- Pivot
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
- Booster systems with frequency-controlled pumps
Key Specifications
| Product Name | Hydro MPC-E 3 CRNE 95-2-2 |
| Product Number | 99743558 |
| EAN | 5713833668549 |
| Pump Type | Booster system with 3 parallel‑connected frequency‑controlled CRNE multistage centrifugal pumps |
| Number of Pumps | 3 |

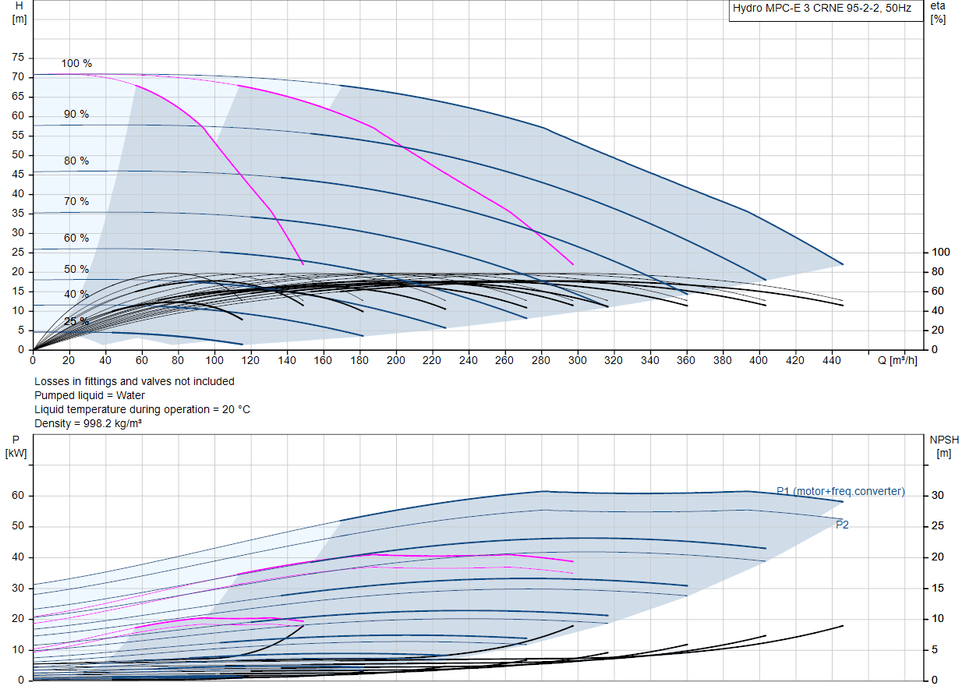

| Rated Flow | 342 m³/h |
| Max. Flow | 444 m³/h |
| Rated Head | 46 m |
| Max. Head | 70 m |
| Main Pump Name | CRNE 95-2-2 |
| Main Pump Product No | 99264377 |
| Liquid Temperature Range | 5 .. 60 °C |
| Maximum Operating Pressure | 16 bar |
| Pressure Rating | PN 16 |

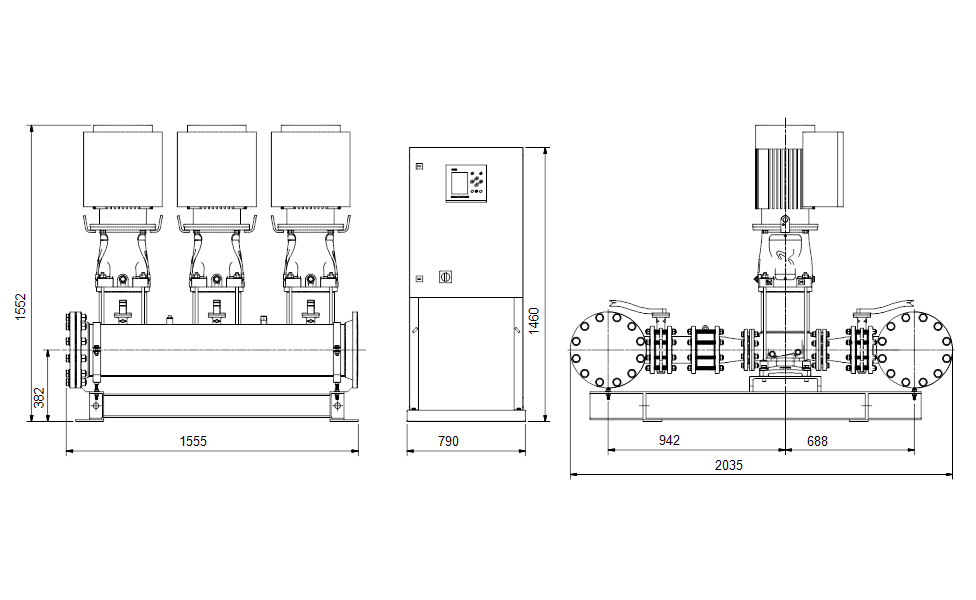

| Connections | Manifold inlet/outlet: DN250 |
| Manifold Material | EN 1.4571 / AISI 316 Ti |
| Earth Connection | N, PE |
| System Design | D |
| Range of Ambient Temperature | 5 .. 40 °C |

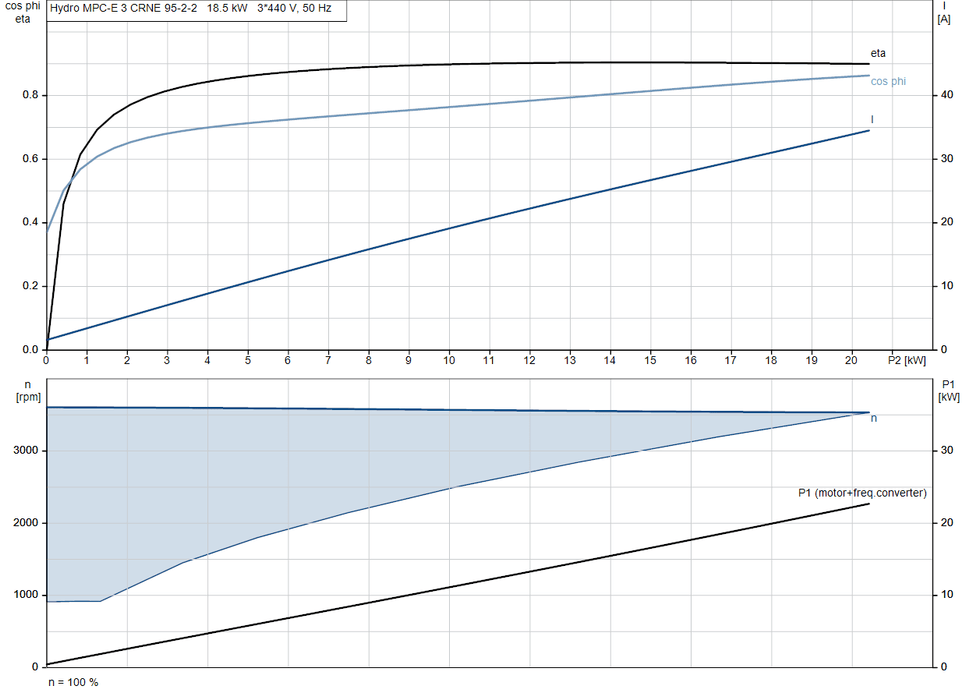

| Motor Power (P2) | 18.5 kW |
| Voltage | 3 x 380-415 V |
| Frequency | 50 / 60 Hz |
| Rated Current of System | 108 A |
| Number of Phases (Main Pump) | 3 |
| Start Method | Variable frequency drives |
| Enclosure Class | IP54 |
| Radio Interference Suppression | EMC DIRECTIVE(2014/30/EU) |
| Control Type | E (CU 352) |
| Dry Running Protection, Mechanical | NONE |
| Tank Volume | 18 l |
| Diaphragm Tank | Yes |
| Net / Gross Weight | 1230 kg / 1790 kg |
| Sales Region | Australia |
| Config. file no. pump | 95139531 |
| Config. file no. Control MPC | 98271947 |
| Config. file no. Hydro MPC | 98272012 |
| Country of Origin | AU |
| Custom Tariff No. | 8413709062 |
| Price | AUD 183,375 |
Documentation & Downloads
| Mounting of sensor for Hydro Booster (Quick Guide) | Download |
| Hydro MPC (Safety instructions) | Download |
| Hydro MPC (Installation and operating instructions) | Download |
| MGE (Data sheet) | Download |
