Tsurumi HS Series Manual Submersible Portable Drainage Pump – HS3.75S
📢 For orders over $100, FREE Shipping Australia-wide
Warranty: Manufacturer’s Warranty

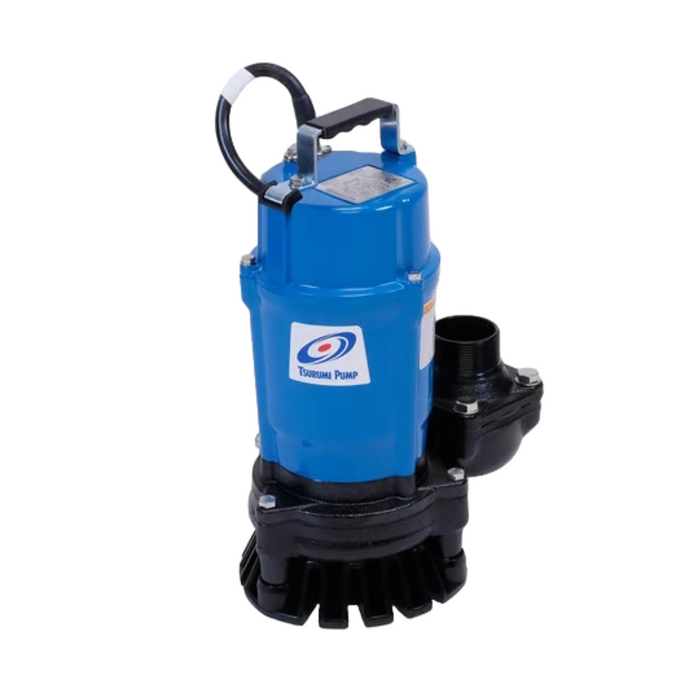

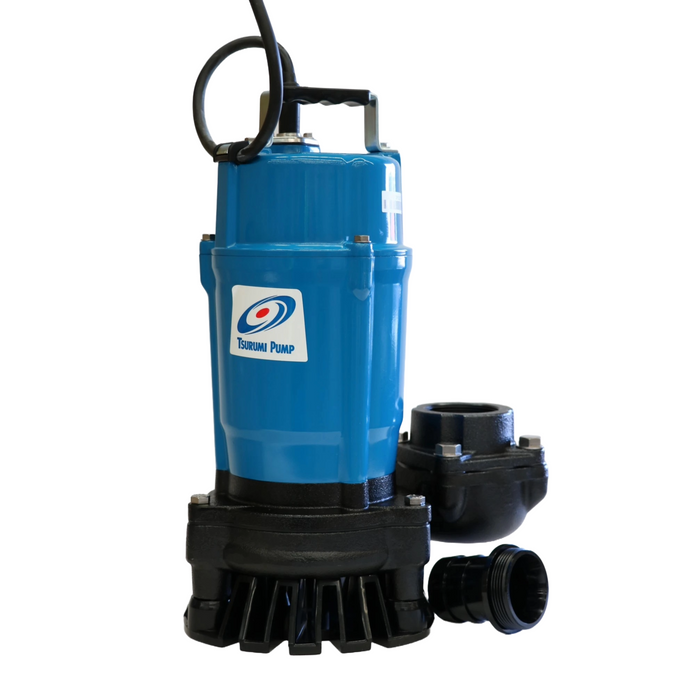

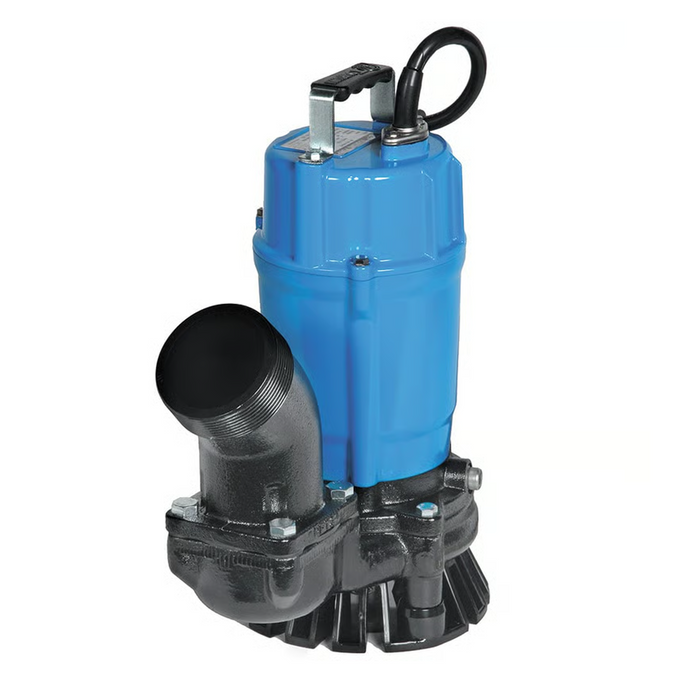

The Tsurumi HS3.75S is a single-phase manual submersible portable drainage pump built for demanding high-capacity dewatering applications, delivering the durability of three-phase units thanks to abrasion-resistant wear parts. Its side-discharge spiral casing allows solid matter and debris to pass freely, while the shaft-mounted agitator prevents air lock. With an 80 mm discharge bore, it handles larger flow rates than its 50 mm counterparts. The pump includes dual inside mechanical seals with silicon carbide faces, an Oil Lifter for enhanced seal lubrication, an anti-wicking cable entry, a circle thermal protector (CTP) for overheat and overcurrent protection, and a resin-made stand to protect floor surfaces. This Australian version is rated for 50Hz operation (240V supply) and is well-suited for construction, industrial, and flood response drainage across Australia and other 50Hz regions.
Suitable Applications
- Construction site and foundation dewatering
- Floodwater removal from residential, commercial, and industrial premises
- Site water management and dewatering
- Industrial wastewater and process water drainage
- Sediment removal from sumps and basins
- Raw water supply from lakes or rivers

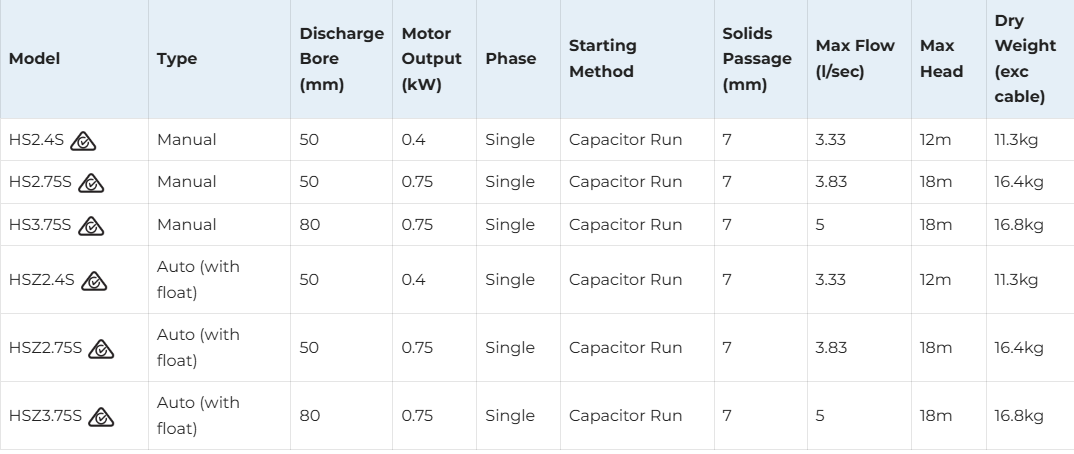

Key Specifications
| Product Name | HS3.75S |
| Pump Type | Submersible manual drainage pump |
| Discharge Bore | 80 mm |
| Motor Output | 0.75 kW |
| Phase | Single-phase |
| Starting Method | Capacitor Run |
| Speed | 3000 min⁻¹ (at 50Hz) |
| Solids Passage | 10 mm |
| Shaft Seal | Dual inside mechanical seals with silicon carbide face and Oil Lifter |
| Liquid Temperature Range | 0 to 40°C |
| Connections | 80 mm Hose Coupling (optional male threaded coupling available on special request) |
| Impeller Material | Semi-vortex, urethane rubber |
| Casing Material | Ductile cast iron |
| Bearing | Permanently lubricated, deep-groove, double-shielded C3 ball bearings |
| Supply Voltage (Australia) | 240V (50Hz) |
| Rated Current | Not specified in provided documentation (refer to Tsurumi for exact value) |
| Enclosure Class | IP68 |
| Insulation Class | E |
| Motor Protection | CTP (Circle Thermal Protector) – cuts circuit on overheat or overcurrent |
| Lubricating Oil | Turbine Oil (ISO VG32), 160 ml |
| Shaft Material | 403 Stainless Steel |
| Cable | Australian plug type |
| Automatic Control | None (manual operation) |
| Stand Material | Resin-made |
| Dry Weight (excluding cable) | 16.8 kg |
Documentation & Downloads

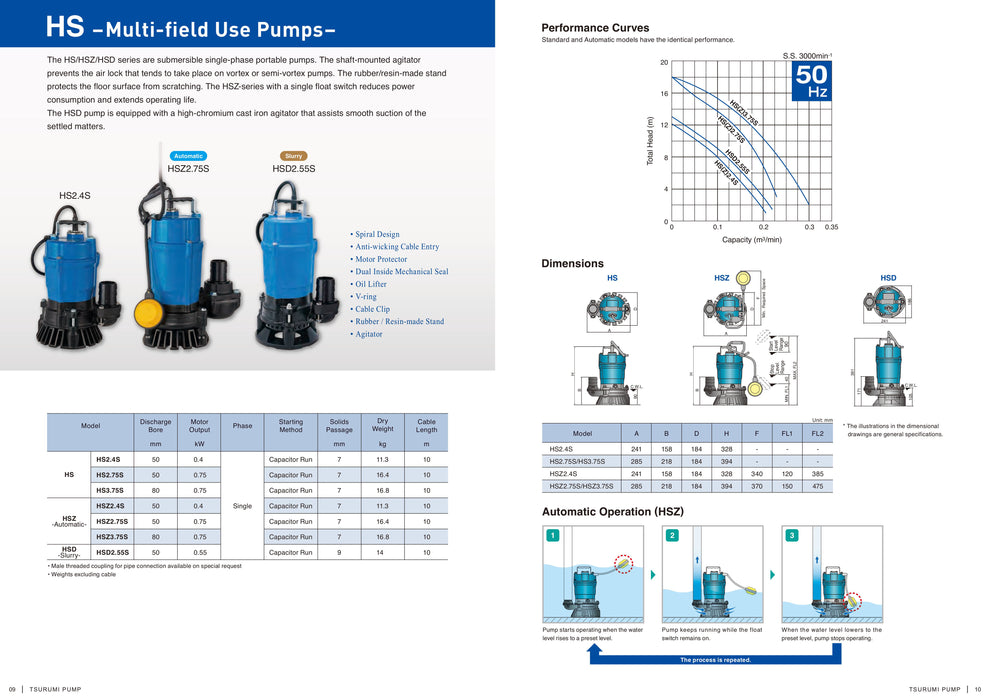

| Single-phase Portable Pumps Catalogue (LB/HS/HSD/LSC/LSP Series) | Download |
