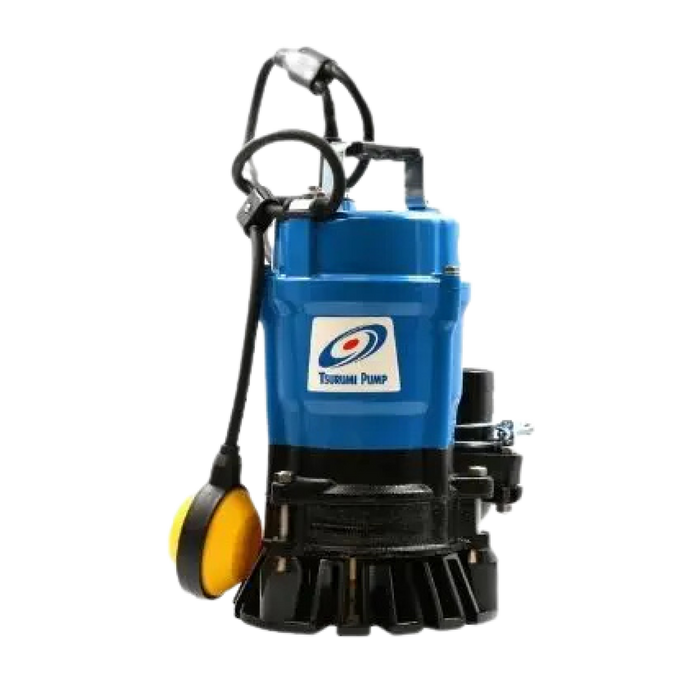

Tsurumi HSZ Series Automatic Submersible Portable Drainage Pump – HSZ2.4S
📢 For orders over $100, FREE Shipping Australia-wide
Warranty: Manufacturer’s Warranty

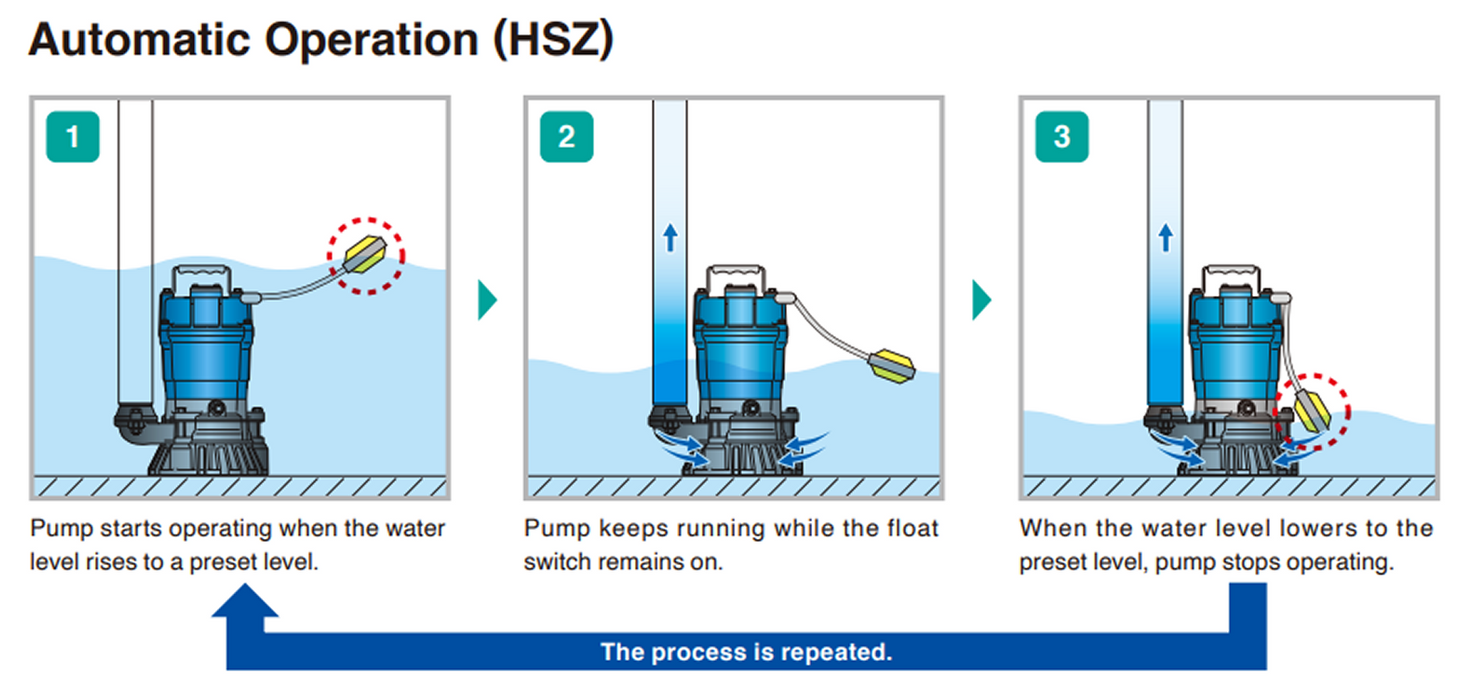

The Tsurumi HSZ2.4S is a single-phase automatic submersible portable drainage pump featuring a float switch that starts and stops the pump based on water level, preventing dry running and reducing power consumption. Its side-discharge spiral casing allows solid matter and debris to pass freely, while the shaft-mounted agitator prevents air lock. The pump delivers the durability of three-phase units thanks to abrasion-resistant wear parts, and includes dual inside mechanical seals with silicon carbide faces, an Oil Lifter for enhanced seal lubrication, an anti-wicking cable entry, a miniature thermal protector (MTP) for overheat protection, and a resin-made stand to protect floor surfaces. This Australian version is rated for 50Hz operation (240V supply) and is well-suited for construction, industrial, and flood response drainage across Australia and other 50Hz regions.
Suitable Applications
- Construction site and foundation dewatering
- Floodwater removal from residential, commercial, and industrial premises
- Site water management and dewatering
- Industrial wastewater and process water drainage
- Sediment removal from sumps and basins
- Raw water supply from lakes or rivers
Key Specifications
| Product Name | HSZ2.4S |
| Pump Type | Submersible automatic drainage pump with float switch |
| Discharge Bore | 50 mm |
| Motor Output | 0.4 kW |
| Phase | Single-phase |
| Starting Method | Capacitor Run |
| Speed | 3000 min⁻¹ (at 50Hz) |
| Solids Passage | 10 mm |
| Shaft Seal | Dual inside mechanical seals with silicon carbide face and Oil Lifter |
| Liquid Temperature Range | 0 to 40°C |
| Connections | 50 mm Hose Coupling (optional male threaded coupling available on special request) |
| Impeller Material | Semi-vortex, urethane rubber |
| Casing Material | Gray cast iron |
| Bearing | Permanently lubricated, deep-groove, double-shielded C3 ball bearings |
| Supply Voltage (Australia) | 240V (50Hz) |
| Rated Current | Not specified in provided documentation (refer to Tsurumi for exact value) |
| Enclosure Class | IP68 |
| Insulation Class | E |
| Motor Protection | MTP (Miniature Thermal Protector) – embedded in winding, cuts on overheat |
| Lubricating Oil | Turbine Oil (ISO VG32), 165 ml |
| Shaft Material | 403 Stainless Steel |
| Cable | H07RN-F w/Plug, 7m (Australian plug type not specified) |
| Automatic Control | Float switch (adjustable length) |
| Stand Material | Resin-made |
| Dry Weight (excluding cable) | 11.3 kg |
Documentation & Downloads
| Single-phase Portable Pumps Catalogue (LB/HS/HSD/LSC/LSP Series) | Download |
