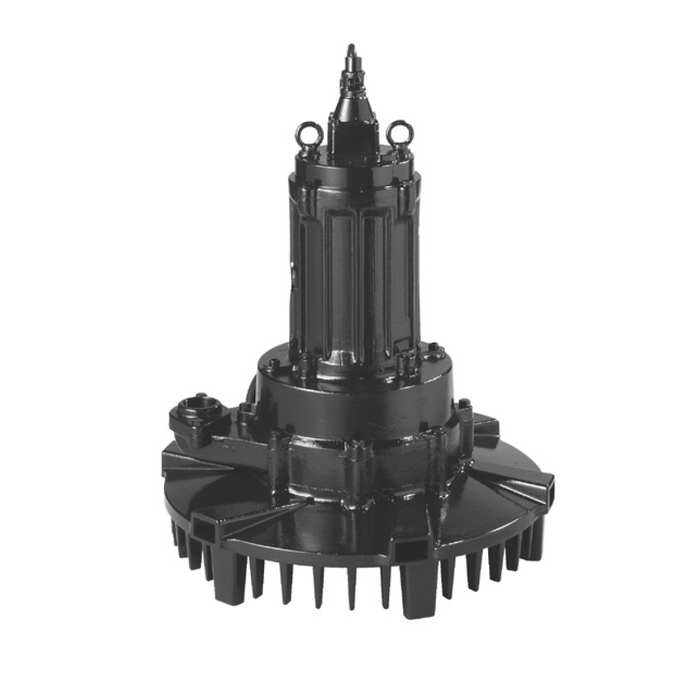

Tsurumi 50TRN45.5 Submersible Self-Aspirating Aerator – 50TRN45.5

The Tsurumi 50TRN45.5 is a submersible self-aspirating aerator designed for efficient aeration and mixing in sewage and wastewater treatment applications. Featuring Tsurumi’s special semi-open impeller, it draws air directly from above the water surface without the need for a separate blower for standard aeration duties. The aspirated air is vigorously mixed with water into fine bubbles and discharged evenly around the aerator, delivering excellent oxygen transfer and powerful agitation throughout the tank.

Designed for continuous-duty operation, the TRN series incorporates Tsurumi's exclusive Oil Lifter, dual silicon carbide mechanical seals, and an anti-wicking cable entry system to provide reliable performance, extended equipment life, and reduced maintenance in demanding wastewater treatment environments.

Suitable Applications

• Mixing and holding tanks
• Sewage treatment plants and systems
• Equalization tanks
• Reaction tanks
• Batch reactors
• Abattoirs
• Fish tanks and water containment systems

Key Features

• Self-aspirating operation eliminates the need for a separate blower for standard aeration applications.
• Special semi-open impeller produces fine air bubbles for efficient oxygen transfer.
• Powerful radial agitation generated by combined air-lift and convective flow.
• Suitable for deeper installations using an optional stand or draft tube.
• Tsurumi Oil Lifter continuously lubricates the mechanical seal for extended service life.
• Dual silicon carbide mechanical seals provide outstanding durability.
• Anti-wicking cable entry prevents water ingress into the motor.
• Designed for continuous-duty wastewater treatment applications.

Key Specifications

Documentation & Downloads
