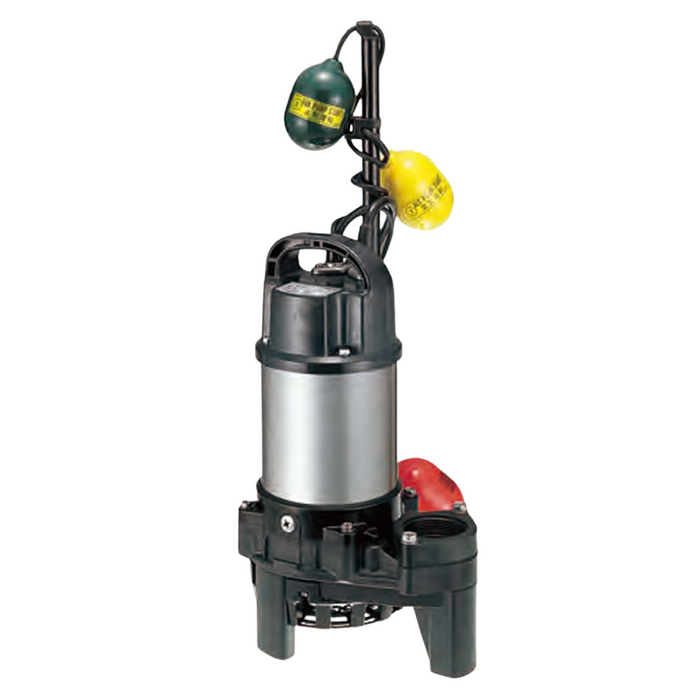

Tsurumi 50PNA2.4S Automatic Submersible Portable Sewage & Wastewater Pump – 50PNA2.4S
If you wish to purchase this product for collection or delivery, please contact us.
📢 For orders over $100, FREE Shipping Australia-wide
The Tsurumi 50PNA2.4S is an automatic submersible portable sewage and wastewater pump designed for reliable pumping of wastewater, rainwater, and water containing small solid particles. Manufactured from corrosion-resistant special resin and 304 stainless steel, it features a semi-vortex impeller for efficient solids handling, dual silicon carbide mechanical seals with Tsurumi's exclusive Oil Lifter, an anti-wicking cable entry system, and an integrated float switch for automatic operation. Its lightweight construction and durable design make it ideal for residential, commercial, and light industrial wastewater applications.
Suitable Applications
- Residential wastewater drainage
- Basement and rainwater drainage
- Septic tanks
- Wastewater treatment systems
- Construction wastewater drainage
- Disinfection chambers
- Waterscapes, ponds, aquariums and fish farms
Key Specifications
| Product Name | 50PNA2.4S |
| Pump Series | PN Series |
| Pump Type | Automatic Submersible Portable Sewage & Wastewater Pump |
| Operation | Automatic (Float Switch) |
| Discharge Bore | 50 mm |
| Motor Output (P2) | 0.4 kW |
| Phase | Single Phase |
| Voltage | 240 V |
| Starting Method | Capacitor Run |
| Maximum Flow Rate | 15 L/sec (0.9 m³/min) |
| Maximum Head | 26.1 m |
| Maximum Solids Passage | 10 mm |
| Fluid Temperature | 0 – 40 °C |
| Impeller Type | Semi-Vortex |
| Impeller Material | Glass-fiber Reinforced Resin |
| Pump Casing Material | Glass-fiber Reinforced Resin |
| Shaft Material | 304 Stainless Steel |
| Shaft Seal | Dual Silicon Carbide Mechanical Seal with Oil Lifter |
| Bearing | Double-shielded Ball Bearing |
| Lubricant | Liquid Paraffin (ISO VG32) |
| Motor Type | Dry-type Submersible Induction Motor, 2-Pole |
| Insulation Class | Class E |
| Protection Device | Miniature Thermal Protector |
| Cable | 10 m H07RN-F with Plug |
| Dry Weight | 7.8 kg |
| Construction | Corrosion-resistant Resin & 304 Stainless Steel |
| Approvals | RCM (AS/NZS 4417.1 & 2) |
Documentation & Downloads
| PN Series Product Guide | Download |
| VANCS PU / PN / TM Series Catalogue | Download |
