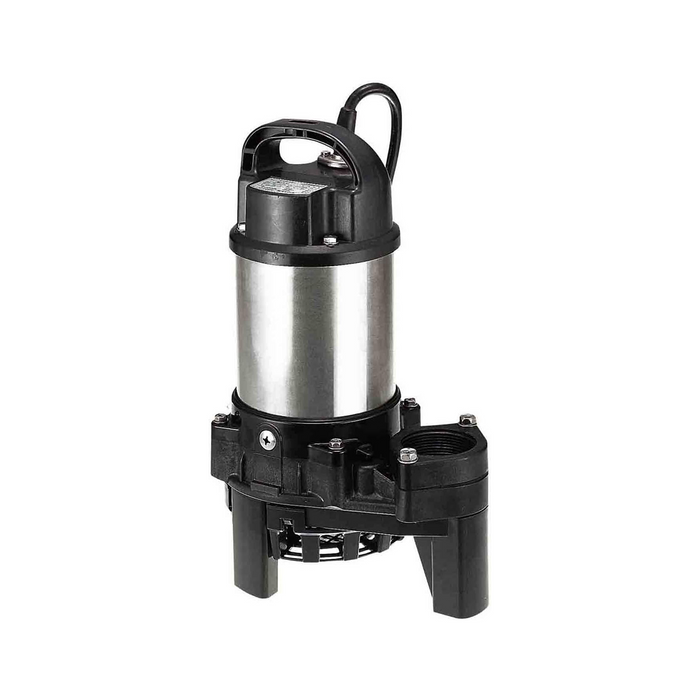

Tsurumi 50PN2.75 Manual Submersible Semi-Vortex Wastewater Pump – 50PN2.75
If you wish to purchase this product for collection or delivery, please contact us.
📢 For orders over $100, FREE Shipping Australia-wide
The Tsurumi 50PN2.75 is a corrosion-resistant manual submersible semi-vortex wastewater pump designed for handling wastewater, rainwater, and water containing small solid matter. Constructed from glass-fiber reinforced resin with 304 stainless steel components, it provides excellent durability in corrosive environments. The pump features a semi-vortex impeller with a 10 mm solids passage, dual silicon carbide mechanical seals with Tsurumi's Oil Lifter, anti-wicking cable entry, and a 0.75 kW three-phase direct-on-line motor for dependable continuous-duty operation. :contentReference[oaicite:0]{index=0}
Suitable Applications
- Residential and commercial wastewater drainage
- Basement and rainwater pumping
- Septic tanks
- Wastewater treatment plants
- Construction site dewatering
- Waterscapes, fountains, ponds, and fish farms

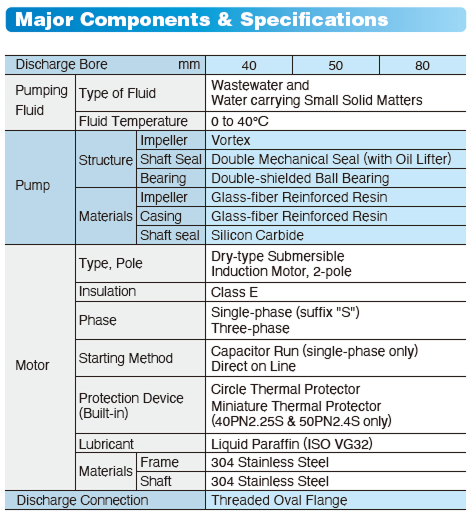

Key Specifications
| Product Name | 50PN2.75 |
| Product Number | 50PN2.75 |
| Pump Type | Manual Submersible Semi-Vortex Wastewater Pump |

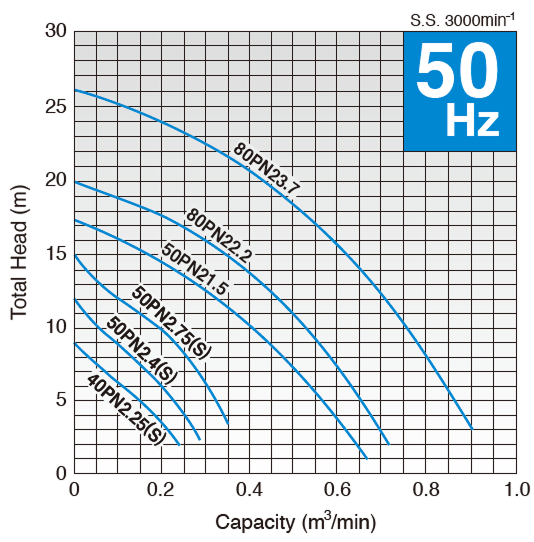

| Maximum Flow Rate | 15 L/sec (0.9 m³/min) |
| Maximum Head | 26.1 m |
| Motor Output (P2) | 0.75 kW |
| Pump Speed | 2 Pole (3000 min⁻¹, 50 Hz) |
| Discharge Bore | 50 mm |
| Solids Passage | 10 mm |
| Impeller Type | Semi-Vortex |
| Shaft Seal | Dual Silicon Carbide Mechanical Seal with Oil Lifter |
| Bearing | Double-Shielded C3 Ball Bearings |
| Pump Housing | Glass-Fiber Reinforced Resin |
| Frame Material | 304 Stainless Steel |
| Shaft Material | 304 Stainless Steel |
| Impeller Material | Glass-Fiber Reinforced Resin (PPO) |
| Liquid Temperature | 0 to 40 °C |
| Motor Type | Dry-Type Submersible Induction Motor |
| Phase | Three Phase |
| Starting Method | Direct On Line (D.O.L.) |
| Insulation Class | Class E |
| Protection Device | Circle Thermal Protector |
| Lubricant | Liquid Paraffin (ISO VG32) |
| Cable Length | 6 or 10 m |
| Dry Weight | 8.3 kg |
Features
- Corrosion-resistant resin and stainless steel construction
- Semi-vortex impeller for handling wastewater with small solids
- Dual silicon carbide mechanical seals with patented Oil Lifter
- Anti-wicking cable entry prevents moisture ingress
- Built-in thermal motor protection
- Continuous-duty rated motor
- Food-grade liquid paraffin lubricant suitable for aquaculture and fish ponds
- Back pull-out design for simplified maintenance
Documentation & Downloads
| PN Series Product Guide | Download |
| VANCS PU / PN / TM Series Catalogue | Download |
