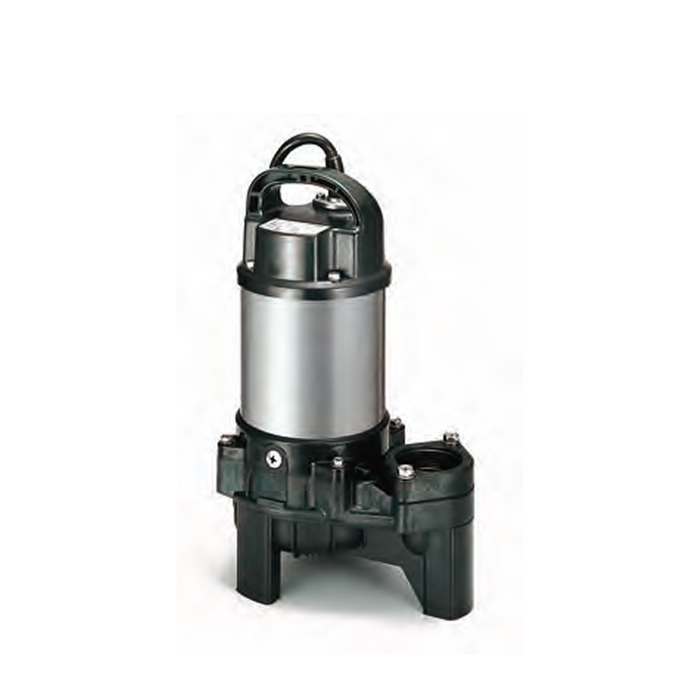

Tsurumi 40PU2.15 Submersible Vortex Sewage Pump – 40PU2.15
If you wish to purchase this product for collection or delivery, please contact us.
📢 For orders over $100, FREE Shipping Australia-wide
The 40PU2.15 is a submersible vortex pump from Tsurumi's PU series, designed for raw sewage, wastewater, and liquids carrying solid matters. Rated at 0.15 kW with a 40 mm discharge bore, this three-phase model features a vortex impeller made of glass-fiber reinforced PPO providing practically unchokable operation in sewage pumping. The pump is constructed from resin and 304 stainless steel, offering excellent corrosion-resistance. Liquid paraffin is used as the lubricating oil, making it safe for use in fishponds, aquaculture, and other water-sensitive applications. The pump is equipped with a circle thermal protector built into the motor housing, dual mechanical seals (Upper: Ceramic + Carbon, Lower: SiC + Ceramic) with an oil lifter, and an anti-wicking cable entry system. The discharge connection is a threaded oval flange. This 50 Hz unit delivers dependable wastewater transfer for a wide range of applications.
Suitable Applications
- Equalization tanks
- Wastewater measuring tanks
- Septic tanks and sewage treatment plants
- Construction wastewater drainage
- Water transfer
- Waterscapes, ponds, aquariums, and fish farms
Key Specifications
| Product Name | Tsurumi 40PU2.15 |
| Product Number | 40PU2.15 |
| Pump Type | Submersible Vortex Sewage Pump |
| Discharge Bore | 40 mm |
| Connection | Threaded Oval Flange |
| Motor Power (P2) | 0.15 kW |
| Phase | Three-phase |
| Speed | 3000 min⁻¹ (50 Hz) |
| Starting Method | Direct on Line (D.O.L.) |
| Solids Passage | 35 mm |
| Impeller Material | Glass-fiber reinforced PPO (vortex) |
| Shaft Material | 316 stainless steel |
| Shaft Seal | Dual mechanical seal (Upper: Ceramic + Carbon, Lower: SiC + Ceramic) with oil lifter |
| Lubricating Oil | Liquid Paraffin (ISO VG32), 135 ml |
| Motor Protection | Circle thermal protector (built in motor housing) |
| Insulation Class | E |
| Enclosure Class | IP68 |
| Voltage | 380-415 V |
| Frequency | 50 Hz |
| Rated Current | 0.7 A |
| Power Cable | PVC sheath, 1 × 4 × 0.75mm², O.D. 10.1mm, Length: 6m |
| Liquid Temperature Range | 0 to 40°C |
| Dry Weight (excluding cable) | 4.8 kg |
Documentation & Downloads
| VANCS PU / PN / TM Series Specification | Download |
| PU Series Product Guide | Download |
