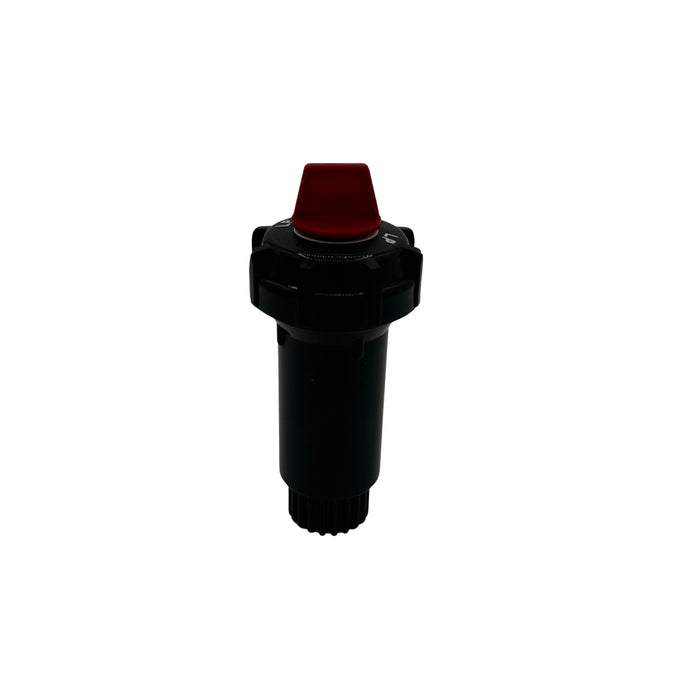

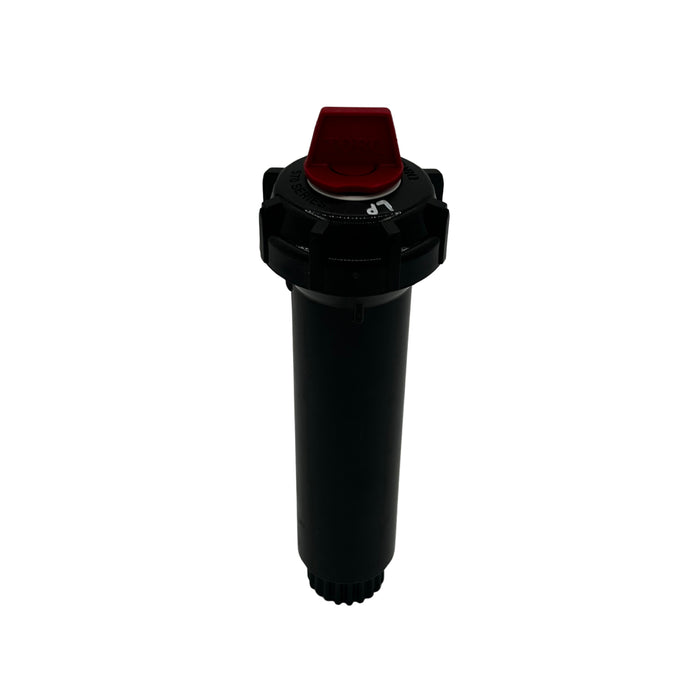

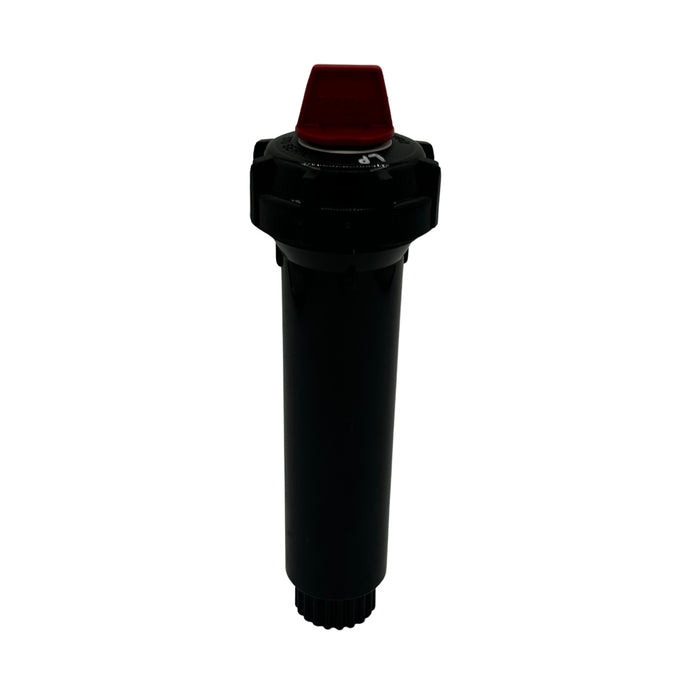

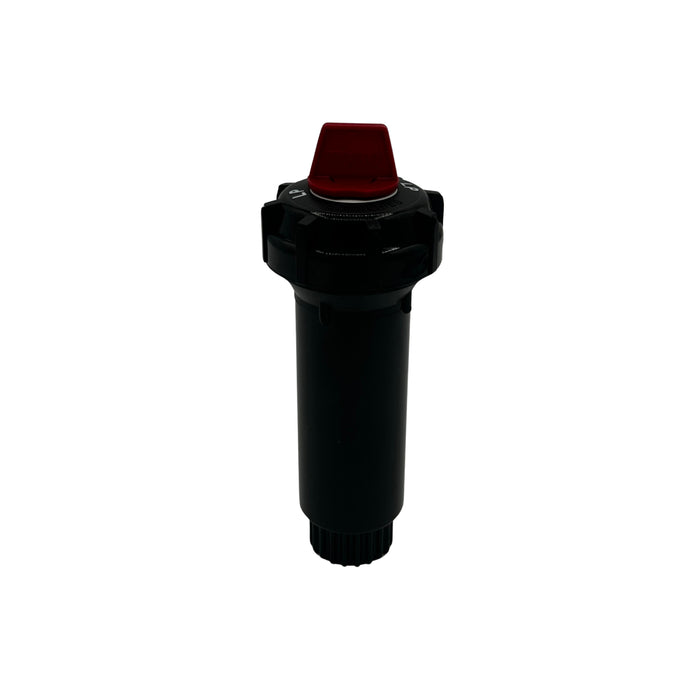

Toro 570Z Series Low Pressure Pop-Up Sprinkler – 570Z Series
by Toro
SKU 570Z-2LP
Original price
$5.23
-
Original price
$25.42
Original price
$5.23
$5.23
-
$25.42
Current price
$5.23
📢 For orders over $100, FREE Shipping Australia-wide
The Toro 570Z Series Low Pressure Pop-Up Sprinkler is a versatile residential spray sprinkler designed for turf, garden, and landscape irrigation applications. Featuring Toro's Zero Flush Wiper Seal technology, the sprinkler prevents flushing during pop-up operation, reducing water waste and allowing more sprinkler heads per irrigation zone. Available in multiple pop-up heights and side inlet configurations, the 570Z Series provides reliable low-pressure performance, flexible installation options, and compatibility with a wide range of fixed and variable arc nozzles.
Suitable Applications
- Turf irrigation
- Residential lawns
- Garden irrigation
- Landscape irrigation
Key Specifications
| Product Name | Toro 570Z Series Low Pressure Pop-Up Sprinkler |
| Product Number | 570Z Series |
| Pump Type | Pop-Up Spray Sprinkler |
| Rated Flow | 0.19 - 17.0 Lpm |
| Connections | 15 mm (½") Female Threaded Inlet |
| Radius | 0.6 - 7.9 m |
| Recommended Pressure (Spray Nozzles) | 210 kPa |
| Recommended Pressure (Rotating Nozzles) | 280 - 350 kPa |
| Body Diameter | 35 mm (2", 3", 4", 6" Models), 45 mm (12" Side Inlet Model) |
| Cap Diameter | 50 mm |
| Side Inlet Position | 120 mm from Top of Sprinkler to Centre of Side Inlet |

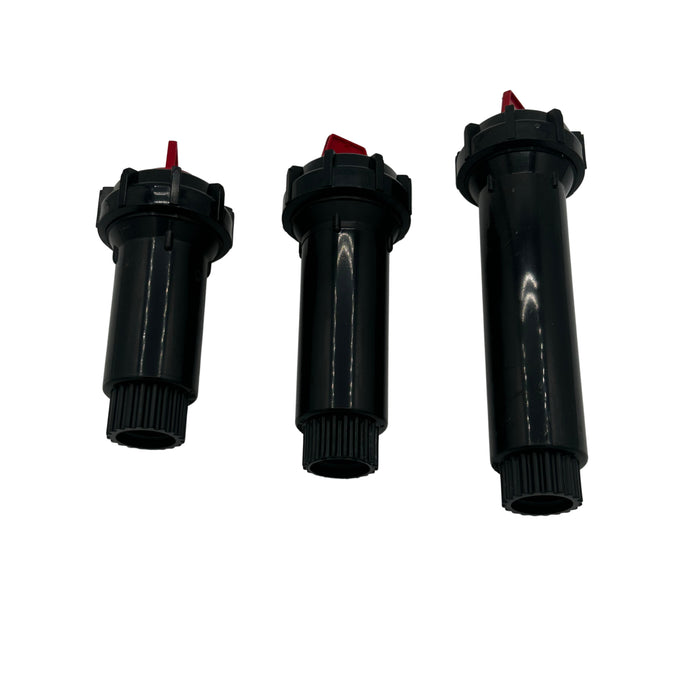

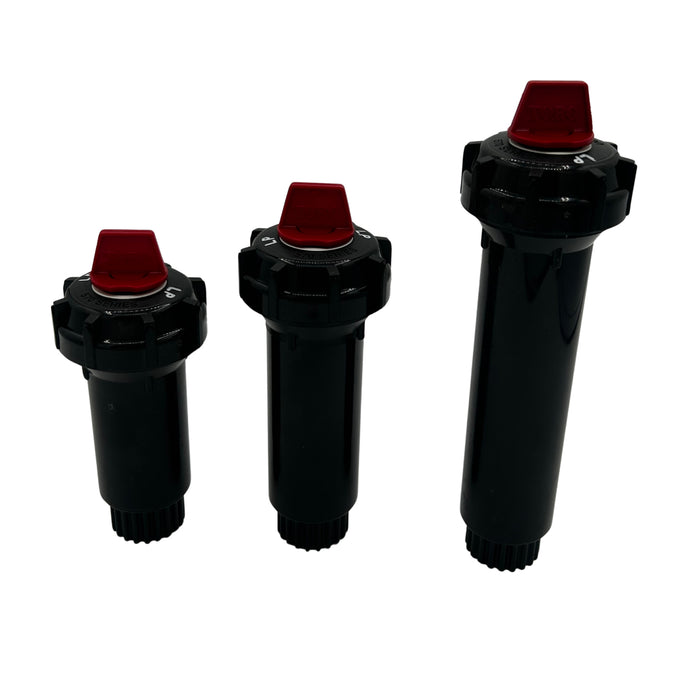

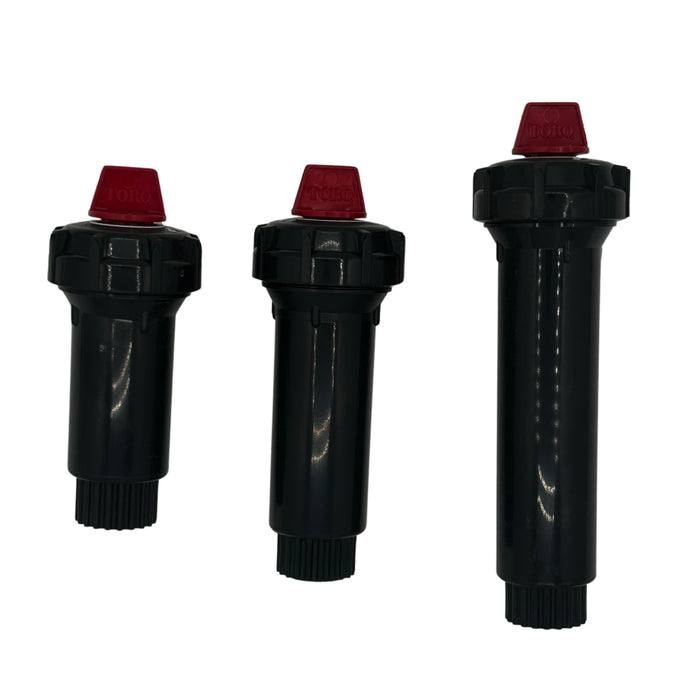

| Pop-Up Heights Available | 50 mm, 75 mm, 100 mm, 150 mm, 300 mm |
| Seal Type | Enhanced Zero Flush Wiper Seal |
| Spring Type | Low Pressure Spring |
| Check Valve Option | 570CV, Maintains up to 3 m Elevation Change |
| Adjustment | Ratcheting Riser for Arc Adjustment |
| Warranty | 2 Years |
