Toro 2400 Series Residential Irrigation Solenoid Valve – 2400 Series
by Toro
SKU 2400S50H
Original price
$32.12
-
Original price
$48.47
Original price
$32.12
$32.12
-
$48.47
Current price
$32.12
📢 For orders over $100, FREE Shipping Australia-wide

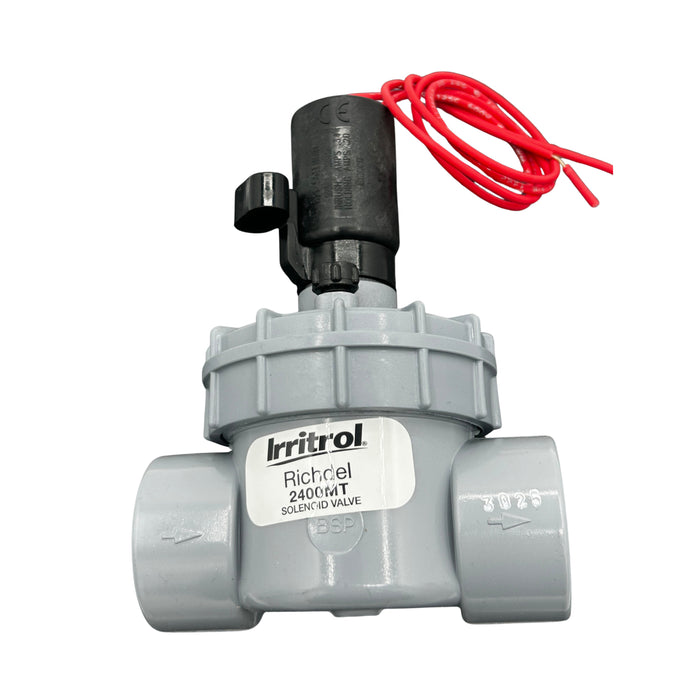

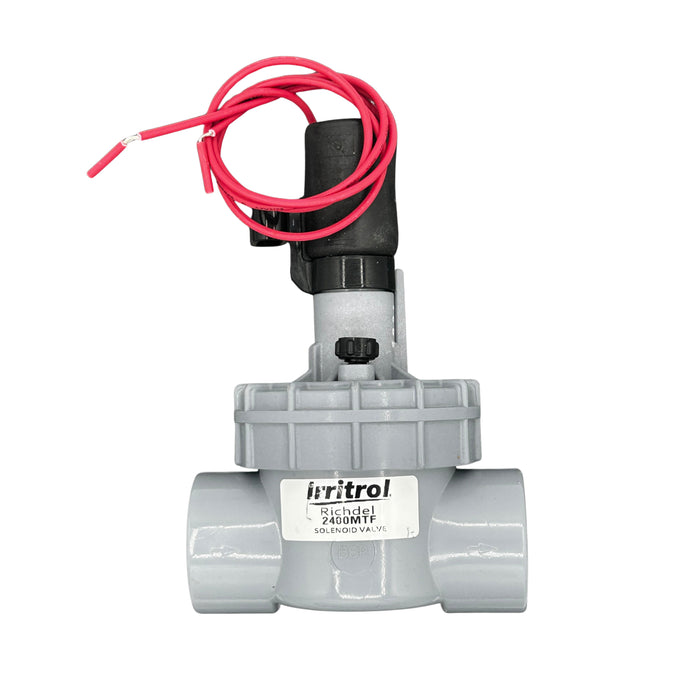

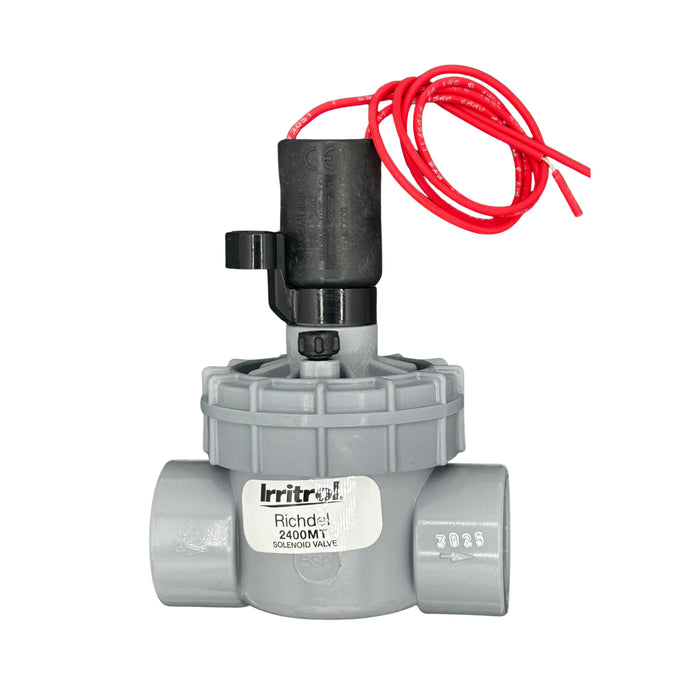

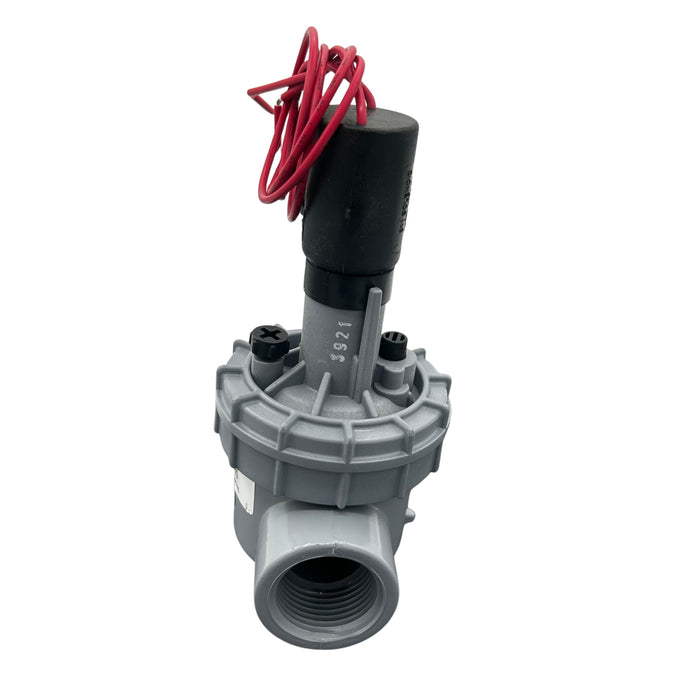

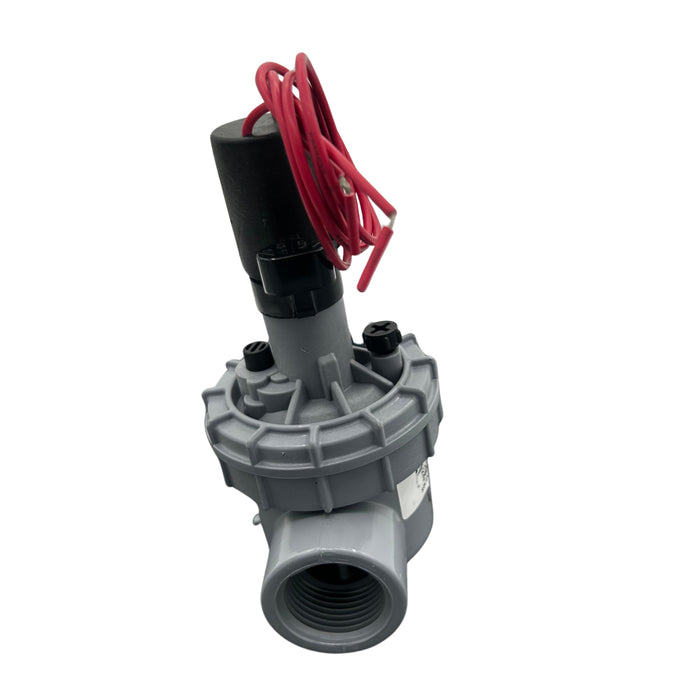

The Toro 2400 Series Residential Irrigation Solenoid Valve is a durable 25mm irrigation control valve designed for residential garden, landscape, and turf watering systems. Constructed from heavy-duty UV-resistant PVC, glass-filled polypropylene, and stainless steel components, it delivers reliable operation across flow rates from 1 to 110 Lpm and pressures from 70 to 1034 kPa. Featuring a double-beaded diaphragm with Buna-N seat seal, an encapsulated 24 VAC solenoid, and a threaded screw-top bonnet for easy servicing, the 2400 Series is available in slip-fit and female BSP configurations.
Suitable Applications
- Residential irrigation systems
- Garden irrigation
- Landscape irrigation
- Turf irrigation
Key Specifications
| Product Name | Toro 2400 Series Residential Irrigation Solenoid Valve |
| Product Number | 2400 Series |
| Valve Type | Irrigation Solenoid Valve |
| Rated Flow | 1–110 Lpm |
| Diaphragm and Valve Seat Seal | Double-beaded diaphragm with Buna-N valve seat seal |
| Maximum Operating Pressure | 1034 kPa |
| Connections | 25mm slip fit or 25mm female BSP |
| Construction Materials | PVC, glass-filled polypropylene, and stainless steel |
| Voltage | 24 VAC |
| Rated Current | 0.4 A inrush, 0.2 A holding |
| Dimensions | 102 × 78 × 131 mm (L × W × H) |
| Pressure Range | 70–1034 kPa |
| Solenoid Power | 9.6 VA inrush, 4.8 VA holding |
| Manual Bleed | Internal and external (flush mode) |
| Bonnet Type | Threaded screw top |
| Metering System | Full stainless steel |
| Construction | Corrosion- and UV-resistant PVC, glass-filled polypropylene, and stainless steel |
Documentation & Downloads
| Product Brochure | Download Product Brochure |
