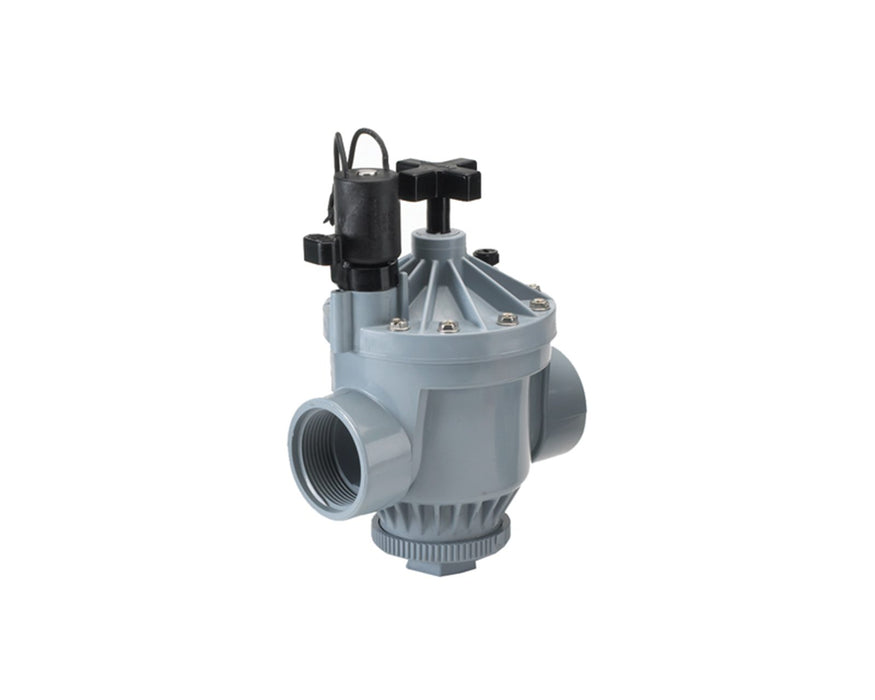

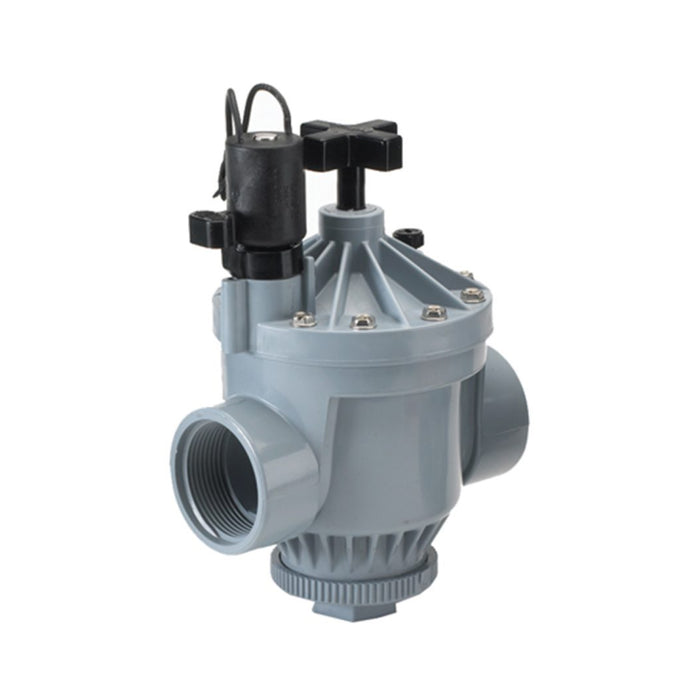

Toro 200B Series Commercial Solenoid Valve with Flow Control – 40 mm / 50 mm
by Toro
SKU 216B-M
Original price
$82.12
-
Original price
$96.54
Original price
$82.12
$82.12
-
$96.54
Current price
$82.12
📢 For orders over $100, FREE Shipping Australia-wide
The Toro 200B Series Commercial Solenoid Valves are designed for reliable, cost-effective performance in demanding commercial irrigation applications. Available in 40 mm and 50 mm models, these heavy-duty valves feature flow control for flow adjustment and manual shutoff, a double-beaded diaphragm for a leak-proof seal, and a slow-closing design to help reduce water hammer.
Product Details
Key Features

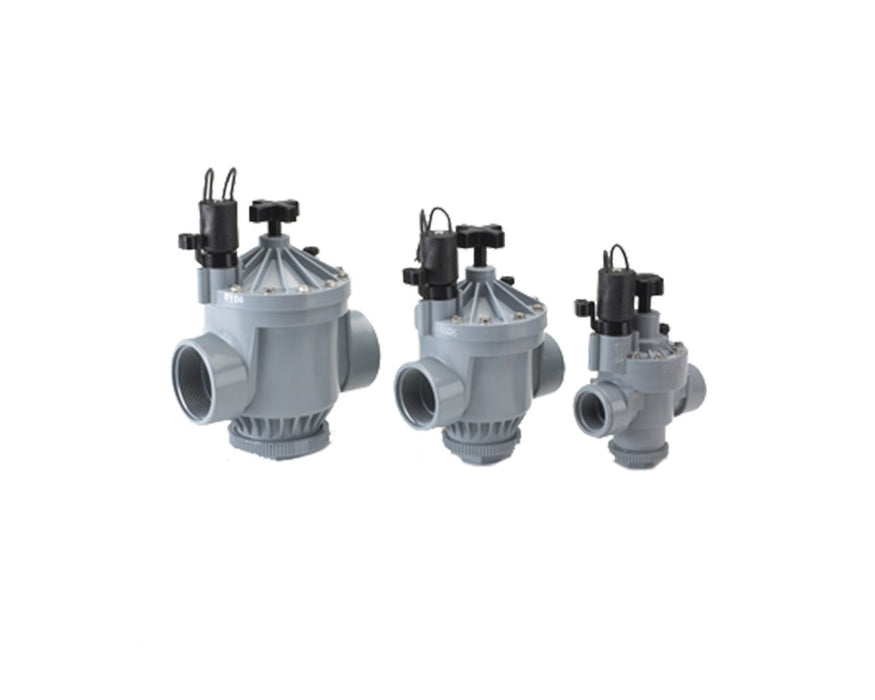

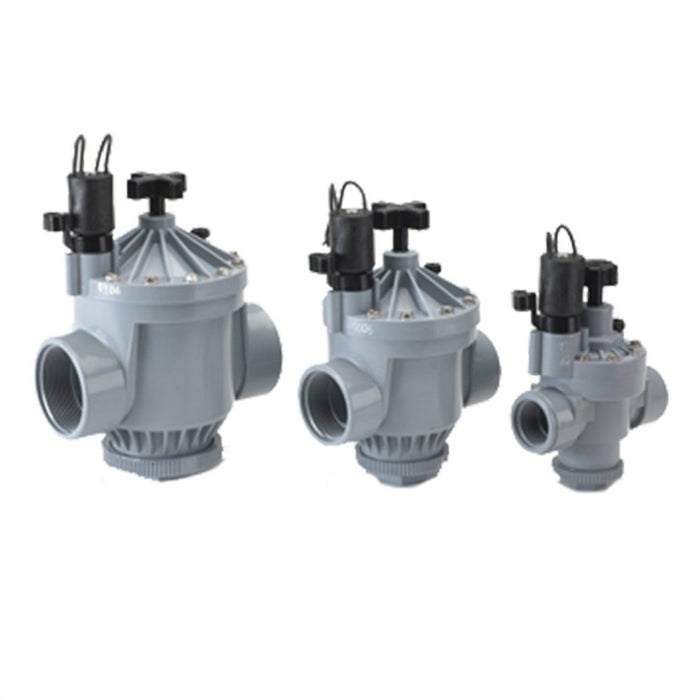

- Available in 40 mm and 50 mm models
- Flow control allows flow adjustment and manual shutoff
- High-strength ribbed bonnet and bottom inlet

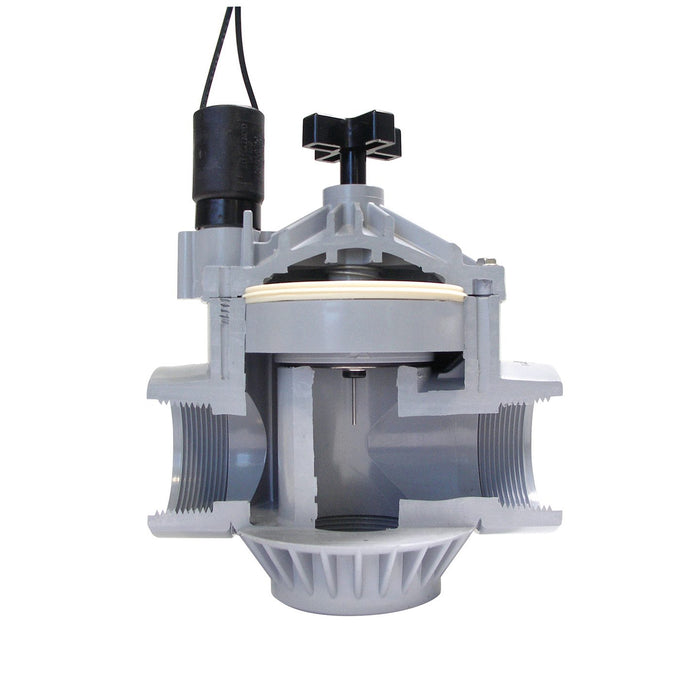

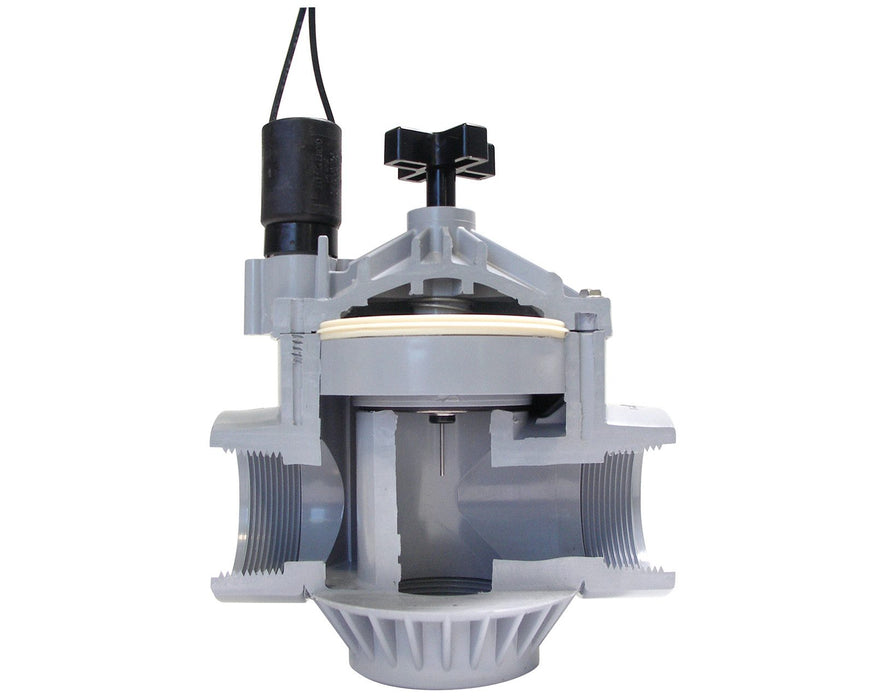

- Double-beaded diaphragm provides a leak-proof seal
- Slow-closing design helps reduce water hammer
Operating Specifications
- 40 mm flow range: 80–300 L/min
- 50 mm flow range: 225–450 L/min
- Pressure range: 140–1034 kPa
- Maximum pressure with a DC latching coil (DCL): 800 kPa
Electrical Specifications
- Solenoid: 24 VAC
- Inrush volt-amp: 9.6 VA
- Inrush current: 0.4 A
- Holding volt-amp: 4.8 VA
- Holding current: 0.2 A
Available Models
| Model Code | Valve Size |
|---|---|

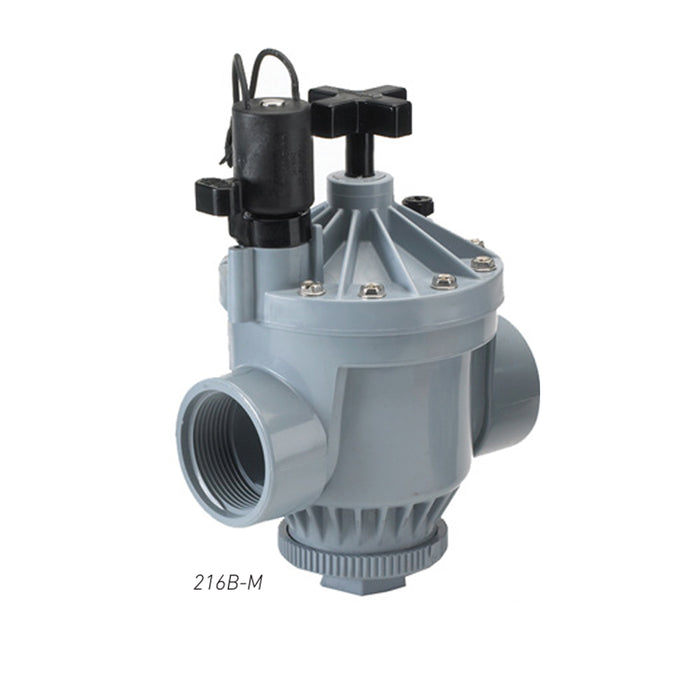

| 216B-M | 40 mm |

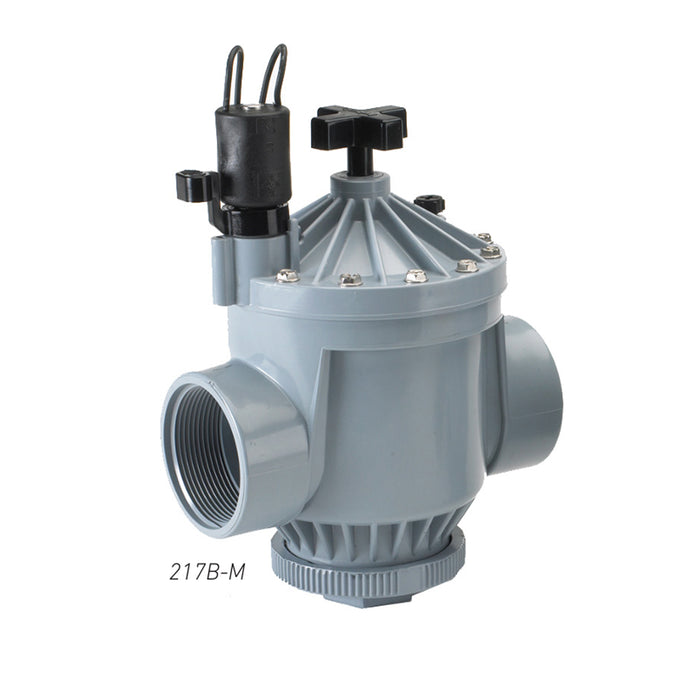

| 217B-M | 50 mm |
Documentation & Downloads
| Product Brochure | Download Toro 200B Series Brochure (PDF) |
