Standard Under Sink/Sullage Alarm with Valve Shutoff - FPC-12660
by Matelec
SKU FPC-12660
Original price
$852.72
-
Original price
$852.72
Original price
$852.72
$852.72
-
$852.72
Current price
$852.72
📢 For orders over $100, FREE Shipping Australia-wide

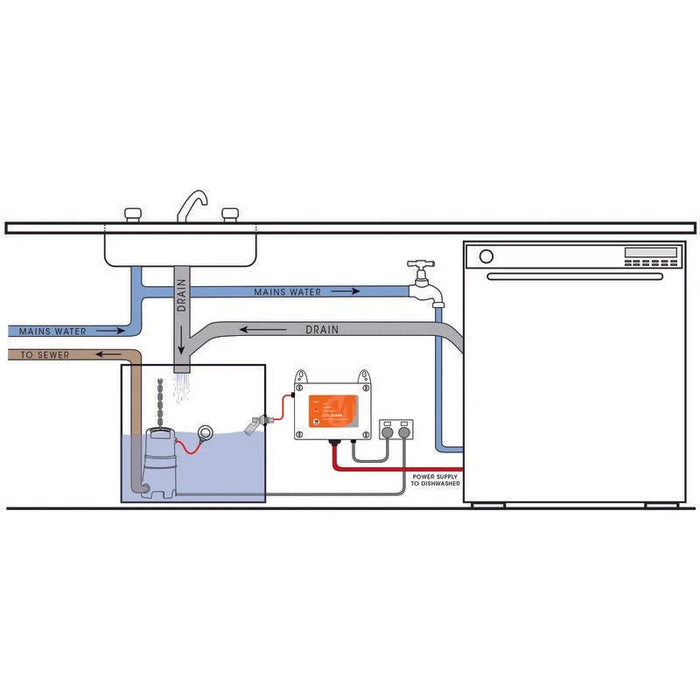

The Under Sink/Sullage Alarm and Dishwasher Interlock has been specifically designed to monitor the level in an under sink sullage tank. If it detects the tank level full, possibly due to pump failure, the control will shut the mains supply to the Dishwasher in the system, ensuring no further water can enter the sullage tank.
Product Details
Enclosure
- IP54 rated, polycarbonate enclosure with mounting brackets
Protection
- Low voltage control and input circuitry
- Pre-wired connections - no hard wiring needed
Control & Interface
- Audible (buzzer) alarm
- Level alarm keypad interface, with:
- Indicator lights for power on and level alarm
- Audible alarm mute/reset/test button
- Shut-off controller PCB control module
Inputs
- Single phase (230Vac) power supply
- Digital 12Vdc input for float switch
- Proprietary 'install from the outside of the tank finger float' with 10m lead included
Outputs
- 10 Amp GPOs for supply to dishwasher
- BMS volt-free output for common fault
Included with Panel
- 10 Amp 3 pin 1.5m power supply lead
- Magnetic float switch with 10m cable
Documentation & Downloads
| Product Datasheet | Download |
