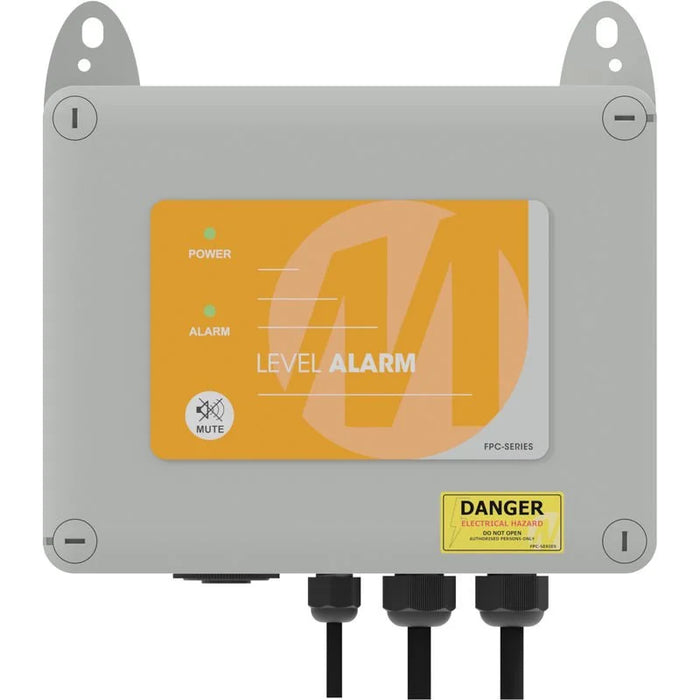

Standard Under Sink/Sullage Alarm with Valve Shutoff - FPC-12659
by Matelec
SKU FPC-12659
Original price
$948.64
-
Original price
$948.64
Original price
$948.64
$948.64
-
$948.64
Current price
$948.64
📢 For orders over $100, FREE Shipping Australia-wide

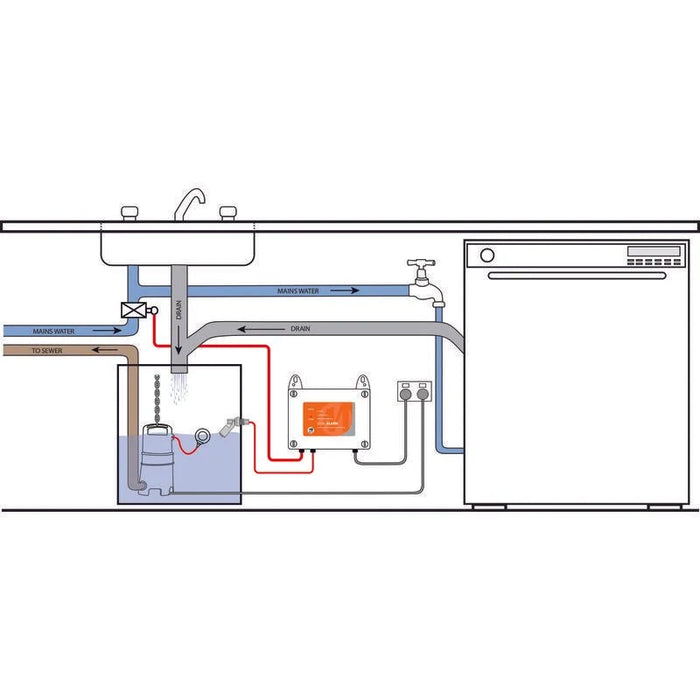

The Standard Under Sink/Sullage Alarm with Valve Shutoff monitors the level in an under sink sullage tank and in the event that the tank level goes full, possibly due to pump failure, the control will shut the mains water supply valve and give an alarm signal.
Product Details
Enclosure
- IP54 rated, polycarbonate enclosure with mounting brackets
Protection
- Low voltage control and input circuitry
- Pre-wired connections - no hard wiring needed
Control & Interface
- Audible (buzzer) alarm
- Level alarm keypad interface, with:
- Indicator lights for power on and level alarm
- Audible alarm mute/reset/test button
- Shut-off controller PCB control module
Inputs
- Single phase (230Vac) power supply
- Digital 12Vdc input for float switch
- Proprietary 'install from the outside of the tank finger float' with 10m lead included
Outputs
- 12Vdc output for solenoid valve
- BMS volt-free output for common fault
Included with Panel
- 10 Amp 3 pin 1.5m power supply lead
- Magnetic float switch with 10m cable
- 20mm male/male 12Vdc pulse latching solenoid valve
Documentation & Downloads
| Product Datasheet | Download |
