Matelec Basic High Level Alarm Level Alarm Panel – FPC-12650
by Matelec
SKU FPC-12650
Original price
$320.00
-
Original price
$320.00
Original price
$320.00
$320.00
-
$320.00
Current price
$320.00
📢 For orders over $100, FREE Shipping Australia-wide

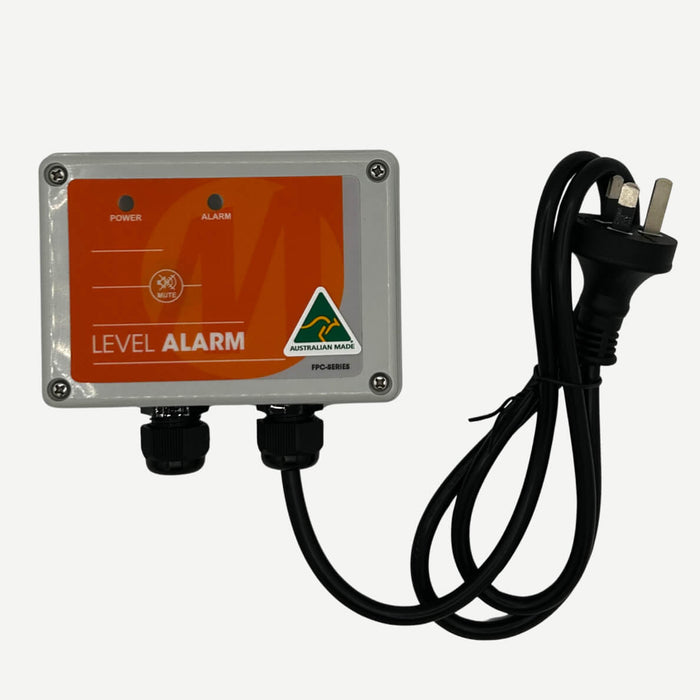

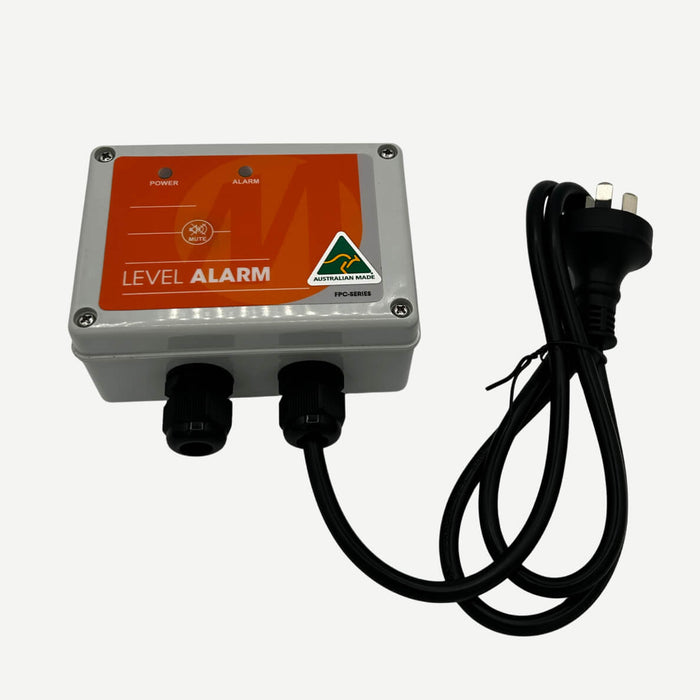

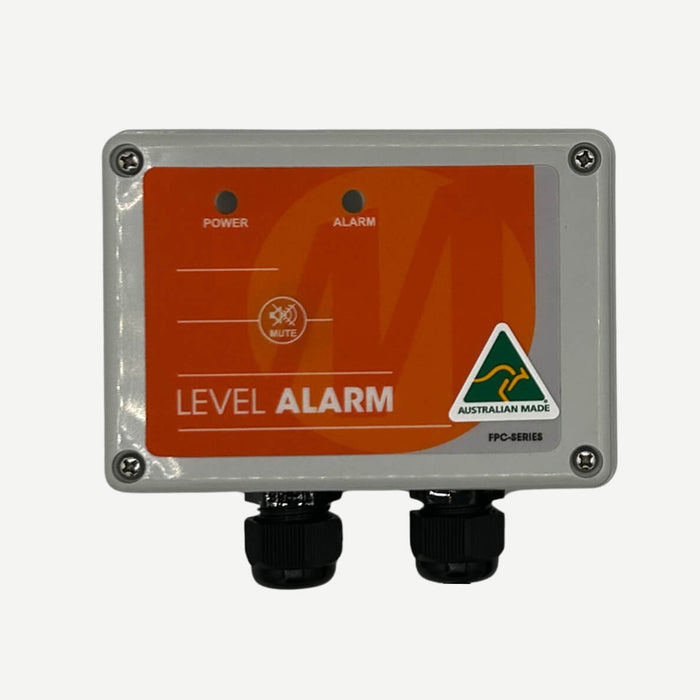

The Matelec Basic High Level Alarm (Part No. 12650) is a set-point alarm panel designed to provide reliable audible warning for water storage tank level conditions without the need for a float switch. It accepts either a 12Vdc switched control input or conductivity probe signals and triggers a buzzer alarm when activated. Housed in a robust IP54-rated polycarbonate enclosure, it features a keypad interface with status indicators, alarm mute/reset controls, and built-in protection through low-voltage control circuitry.
Suitable Applications
- Water storage tank high or low level alarm monitoring
- Pump protection and dry-run warning systems
- Domestic and commercial water level control systems
- Industrial liquid level alarm applications
Key Specifications
| Product Name | Basic High Level Alarm |
| Product Number | 12650 |
| Pump Type | Level Alarm Panel |
| Voltage | 230Vac |
| Enclosure | IP54 Polycarbonate |
| Inputs | 12Vdc digital input / conductivity probes |
| Outputs | BMS Volt-free (NO & NC) |
| Included Accessories | 10 Amp 3-pin 1m power supply lead |
