HydroWHIZ Submersible Level Controller (1PH 4 Pump) - FPC-63441-(AA-D)

MATelec Australia's HydroWHIZ Controller has been designed with ease of use at the core of the system design. Building on the wealth of the pump control features in the Advanced controller, the HydroWHIZ brings these features into a new age with a colour touch screen interface and a streamlined setup process. In a world where information is power the HydroWHIZ has extensive time and date stamped alarms, logged data, trend graphs and diagnostic pages to provide the user with all the information required for optimisation and preventative maintenance. Featuring the flexibility of level, pressure and temperature system modes with a wide range of functions and protections, the HydroWHIZ controller is ideal for a vast range of applications including water transfer, stormwater and sewage pump out, pressure boosting, hot water circulation and chiller supply, to name a few.

Product Details

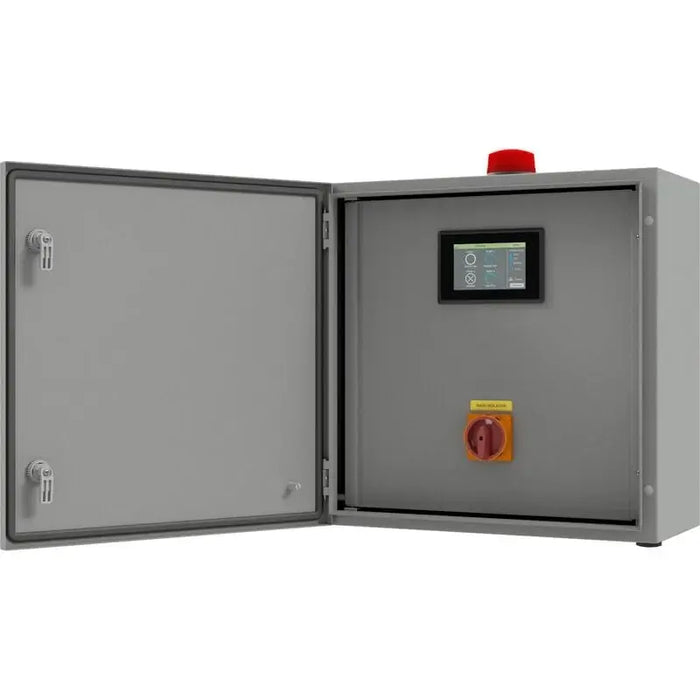

Enclosure

• IP56 rated, powder coated mild steel enclosure with inner door and removable gland plate
• Enclosure size: 400x400x250mm

Protection

• Pad-lockable mains power isolator switch
• Circuit breaker protected low voltage control and input circuitry
• Individual pump isolation
• Contactor and thermal overload protection of pump motors
• Din rail mounted terminal connections

Control & Interface

• HydroWHIZ colour touch screen HMI (see interface features)
• HydroWHIZ PCB control module
• Visual (strobe) and mutable audible (buzzer) alarms

Inputs

• Single phase (230Vac) power supply

• Analog 4-20mA input for level, pressure or temperature transducer
• Up to 8x digital 24Vdc inputs for low, stop, start, standby start and high float switches, pressure switches or thermostats, system enable/disable input and a low flow switch


Outputs

• 4 pump output
• BMS volt-free output for common fault
• Analog 0-10V output (mirrors analog input)
• Output for solenoid valve available on request
• Modbus RTU Serial RS485 connections for SCADA

Common Applications

• Water transfer

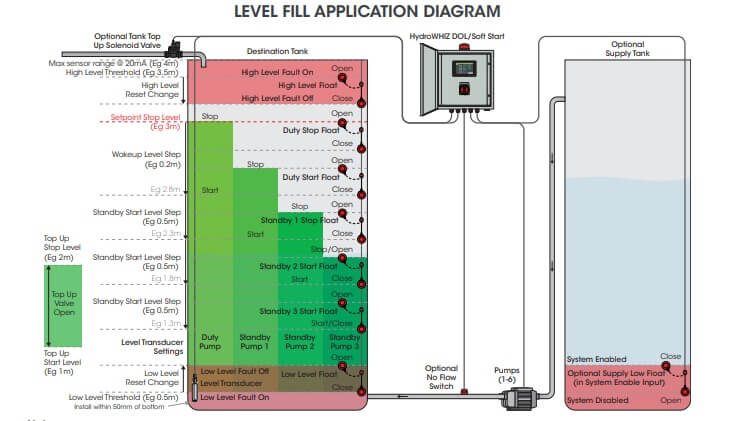

• Tank fill

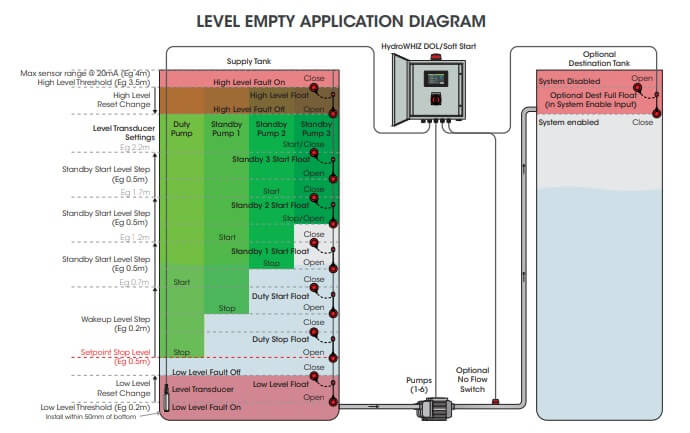

• Sewage pump out
• Stormwater pump out
• Pressure boosting
• Hot water recirculation
• Chiller supply
