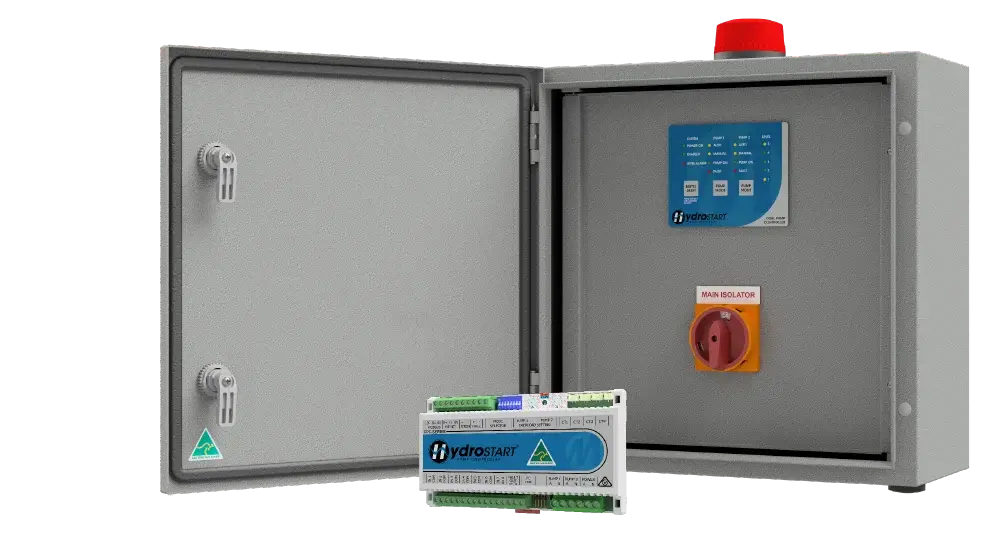

HydroSTART Stainless Steel (3PH 1 Pump 0.1-16A c/w ID, 316SS Enclosure) - FPC-82143-SS
by Matelec
SKU FPC-82143-SS
Original price
$4,051.52
-
Original price
$4,051.52
Original price
$4,051.52
$4,051.52
-
$4,051.52
Current price
$4,051.52
📢 For orders over $100, FREE Shipping Australia-wide
The HydroSTART Stainless Steel Controller is a single-pump controller for 3-phase / 400Vac applications, supplied with an IP56 inner-door enclosure constructed from 316 stainless steel. It provides electronic pump protection, level monitoring, duty control and alarm functionality.
Product Details
Enclosure
- 316 stainless steel enclosure
- IP56 rated with inner door for outdoor mounting
- Enclosure size: 400x400x200mm
- Enclosure size will increase for optional additions
Protection
- Pad-lockable mains power isolator switch
- Low voltage control and input circuitry
- Individual pump circuit breaker protection/isolation
- Electronic short and overload protection
- DIN rail mounted terminal connections
Control & Interface
- HydroSTART single-pump capacitive touch keypad interface
- Indicator lights for system, pump and input status, and level alarm
- Buttons for alarm mute/reset and pump mode selection
- HydroSTART PCB control module with DIP switches for configuration
- Visual (strobe) and audible (buzzer) alarms
- Pump current sensing providing adjustable overload and other protections
Inputs
- Three phase (400Vac) power supply
- 6x digital inputs for float or pressure switches, optional prime loss flow switch and system enable
- Standard terminal setup: Low level, duty stop, duty start, standby start, high level and system enable
Outputs
- 1x pump supply output
- BMS volt-free output for common fault
- Modbus RTU Serial RS485 connections for SCADA
