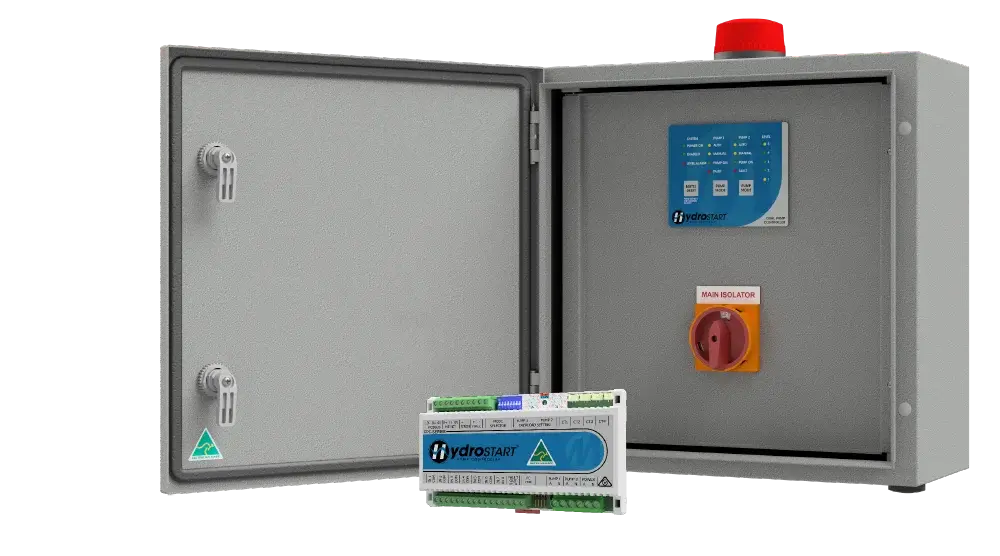

HydroSTART Stainless Steel (1PH 2 Pump 0.1-16A c/w ID & 316SS Enclosure) - FPC-82241-SS

MATelec Australia’s HydroSTART Controller provides reliable control for dual pump applications, featuring a capacitive touch keypad, pump current sensing, electronic overload protection, and a premium 316 stainless steel enclosure. The HydroSTART is designed to provide flexible pump control across a wide range of pumping applications.

Product Details

Enclosure

• 316 stainless steel enclosure
• IP56 rated with inner door for outdoor mounting
• Enclosure size: 400x400x200mm
• Enclosure size will increase for optional additions

Protection

• Pad-lockable mains power isolator switch
• Low voltage control and input circuitry
• Individual pump circuit breaker protection/isolation
• Electronic short and overload protection of alarms
• Din rail mounted terminal connections

Control & Interface

• HydroSTART dual pump capacitive touch keypad interface
• Indicator lights for system, pump and input status and level alarm
• Buttons for alarm mute/reset and pump mode selection
• HydroSTART PCB control module with dipswitches for adjusting configuration
• Visual (strobe) and audible (buzzer) alarms
• Pump current sensing providing adjustable overload and other protections

Inputs

• Single phase (230Vac) power supply
• Up to 6 digital inputs for float or pressure switches, optional prime loss flow switch and system enable
• Standard terminal setup: Low level, duty stop, duty start, standby start, high level and system enable

Outputs

• 2x pump supply outputs
• BMS volt-free output for common fault
• Modbus RTU Serial RS485 connections for SCADA
