HydroSTART - HWC 3PH 2 Pump 0.1-16A c/w ID - FPC-82243-HWC

MATelec Australia's HydroSTART Controller brings the features of the standard single and dual pump controllers into a new age with a redesigned capacitive touch keypad and control module with pump current sensing, providing wide range electronic overload protection which now functions with both single and three phase pumps.

Additional control inputs and functionality have been incorporated into the new design to enhance the controller's flexibility and cover an even wider range of pumping applications. The HydroSTART is the new standard for pump controls.

Product Details

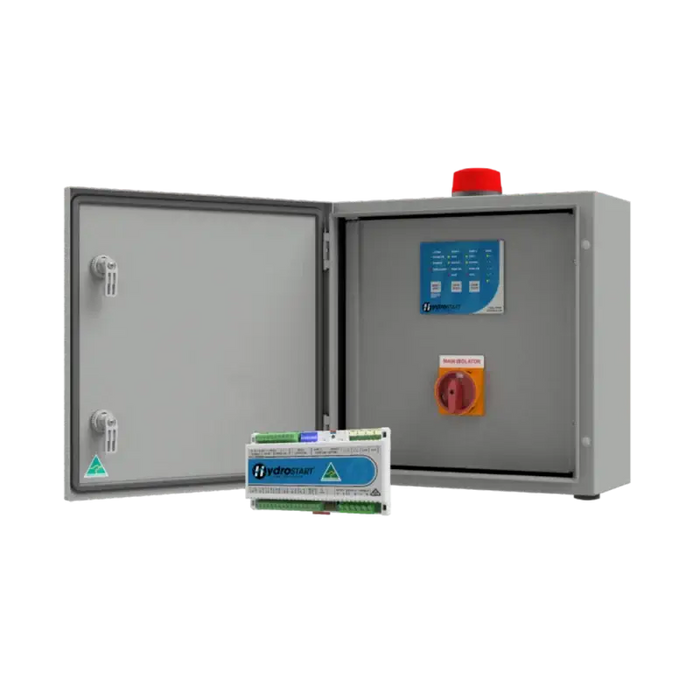

Enclosure

• Enclosure size: 400x400x200mm
• Powder coated mild steel enclosure with removable gland plate
• IP56 rated with inner door for outdoor mounting (inner door version)

Protection

• Selectable overload range: 0.1-6 Amp, 5-16 Amp

• Pad-lockable mains power isolator switch
• Low voltage control and input circuitry
• Individual pump circuit breaker protection/isolation
• Contactors for pump switching (three-phase panels)
• Electronic short and overload protection of alarms
• Din rail mounted terminal connections

Control & Interface

• HydroSTART single or dual pump capacitive touch keypad interface:
  • Indicator lights for system and pump status
  • Buttons for alarm mute/reset and pump mode selection

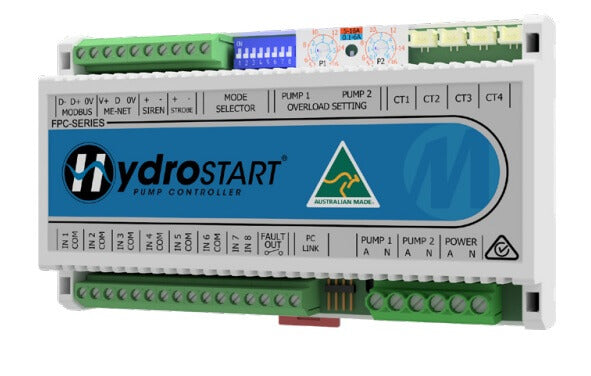

• HydroSTART PCB control module with dipswitches for adjusting configuration
• Visual (strobe) and audible (buzzer) alarms
• Pump current sensing providing adjustable overload & other protections

Inputs

• Three phase (400Vac) power supply

• Digital input for thermostat and time clock
• Hot water terminal set up, with volt free BMS outputs and system enable

Outputs

• 2x pump supply outputs
• BMS volt-free output for common fault
• Modbus RTU Serial RS485 connections for SCADA
