HydroSTART Conductivity Input (3PH 2 Pump 0.1-16A c/w ID, Probe Inputs) - FPC-82243-CON
by Matelec
SKU FPC-82243-CON
Original price
$2,537.04
-
Original price
$2,537.04
Original price
$2,537.04
$2,537.04
-
$2,537.04
Current price
$2,537.04
📢 For orders over $100, FREE Shipping Australia-wide

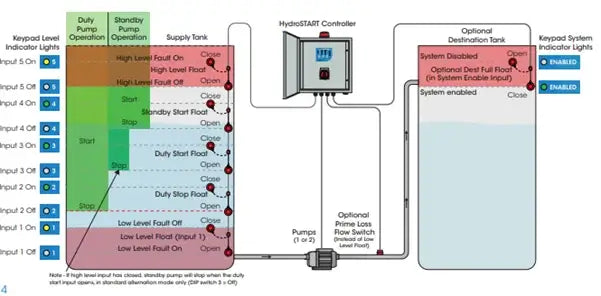

The HydroSTART Conductivity Input controller is designed for applications requiring conductivity probe-based level detection. It provides reliable control and protection for two pumps, with conductivity probe inputs for monitoring water levels in pits and tanks.
Product Details

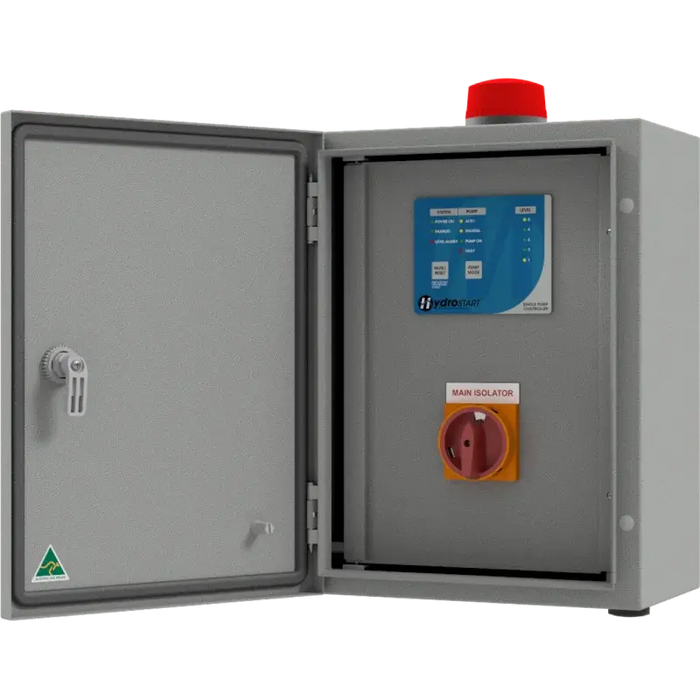

Enclosure
- Enclosure size: 400x400x200mm
- Powder coated mild steel enclosure with removable gland plate
- IP56 rated with inner door for outdoor mounting
- Enclosure size will increase for optional additions
Protection
- Pad-lockable mains power isolator switch
- Low voltage control and input circuitry
- Individual pump circuit breaker protection/isolation
- Contactors for pump switching
- Electronic short and overload protection of alarms
- Din rail mounted terminal connections
Control & Interface
- HydroSTART dual pump capacitive touch keypad interface
- Indicator lights for system, pump and input status, and level alarm
- Buttons for alarm mute/reset and pump mode selection
- HydroSTART PCB control module with dipswitches for adjusting configuration
- Visual (strobe) and audible (buzzer) alarms
- Pump current sensing providing adjustable overload and other protections
Inputs
- Three phase (400Vac) power supply
- Conductivity probe inputs for level detection
- Digital inputs for system control
Outputs
- 2x pump supply outputs
- BMS volt-free output for common fault
- Modbus RTU Serial RS485 connections for SCADA
Additional Options
- Conductivity probe inputs
Documentation & Downloads
| Product Spec Sheet | Download |
| Automation & Control Product Guide | Download |
| Instruction Manual | Download |
| Quick Start Guide | Download |
