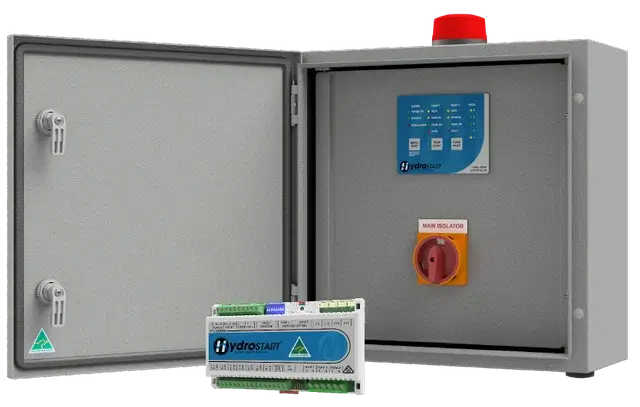

HydroSTART Conductivity Input (3PH 1 Pump 0.1-16A c/w ID, Probe Inputs & SMS Dialler) - FPC-82143-CON/SMS

The HydroSTART Conductivity Input controller is designed for applications requiring conductivity probe-based level detection. It provides reliable pump control and protection with conductivity probe inputs for monitoring water levels in pits and tanks, while the integrated ME-Link SMS dialler enables remote alarm and status messaging.

Product Details

Enclosure

• Enclosure size: 400x400x200mm
• Powder coated mild steel enclosure with removable gland plate
• IP56 rated with inner door for outdoor mounting

• Enclosure size will increase for optional additions


Protection

• Pad-lockable mains power isolator switch
• Low voltage control and input circuitry
• Individual pump circuit breaker protection/isolation
• Contactors for pump switching
• Electronic short and overload protection of alarms
• Din rail mounted terminal connections

Control & Interface

• HydroSTART single pump capacitive touch keypad interface
• Indicator lights for system, pump and input status, and level alarm
• Buttons for alarm mute/reset and pump mode selection
• HydroSTART PCB control module with dipswitches for adjusting configuration
• Visual (strobe) and audible (buzzer) alarms
• Pump current sensing providing adjustable overload and other protections

Inputs

• Three phase (400Vac) power supply
• Conductivity probe inputs for level detection
• Digital inputs for system control

Outputs

• 1x pump supply output
• BMS volt-free output for common fault
• Modbus RTU Serial RS485 connections for SCADA

Additional Options

• Conductivity probe inputs
• ME-Link SMS dialler for remote alarm and status messaging
