HydroSTART Conductivity Input (1PH 1 Pump 0.1-16A c/w Probe Inputs) - FPC-81141-CON
by Matelec
SKU FPC-81141-CON
Original price
$2,288.00
-
Original price
$2,288.00
Original price
$2,288.00
$2,288.00
-
$2,288.00
Current price
$2,288.00
📢 For orders over $100, FREE Shipping Australia-wide
The HydroSTART Conductivity Input panel is designed for applications requiring probe-based level monitoring. It provides reliable pump control and protection with conductivity probe inputs for monitoring water levels in pits and tanks.
Product Details

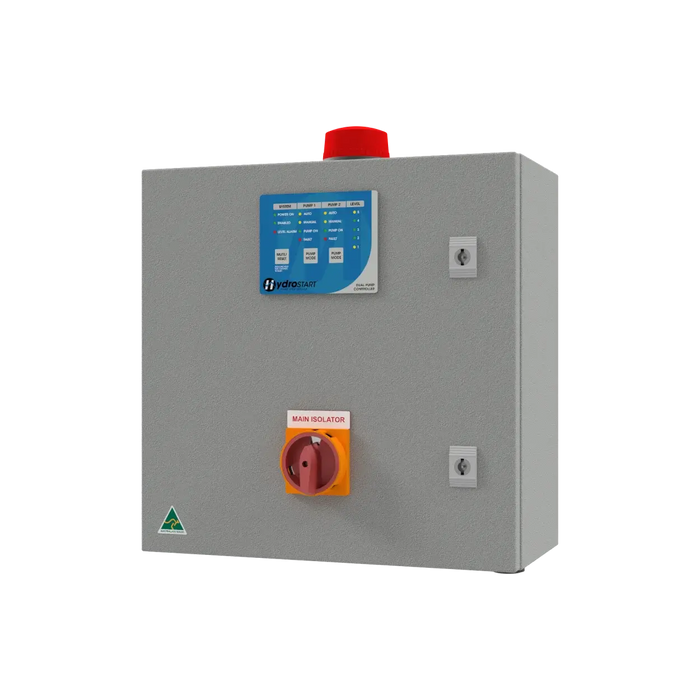

Enclosure
- Enclosure size: 400x400x150mm
- Powder coated mild steel enclosure with removable gland plate
- IP54 rated with single door for indoor mounting
- Enclosure size will increase for optional additions
Protection
- Pad-lockable mains power isolator switch
- Low voltage control and input circuitry
- Individual pump circuit breaker protection/isolation
- Electronic short and overload protection of alarms
- Din rail mounted terminal connections
Control & Interface
- HydroSTART capacitive touch keypad interface
- Indicator lights for system, pump and input status, and level alarm
- Buttons for alarm mute/reset and pump mode selection
- HydroSTART PCB control module with dipswitches for adjusting configuration
- Visual (strobe) and audible (buzzer) alarms
- Pump current sensing providing adjustable overload and other protections
Inputs
- Single phase (230Vac) power supply
- Conductivity probe inputs for level monitoring
- Standard terminal setup for level control
Outputs
- 1x pump supply output
- BMS volt-free output for common fault
- Modbus RTU Serial RS485 connections for SCADA
