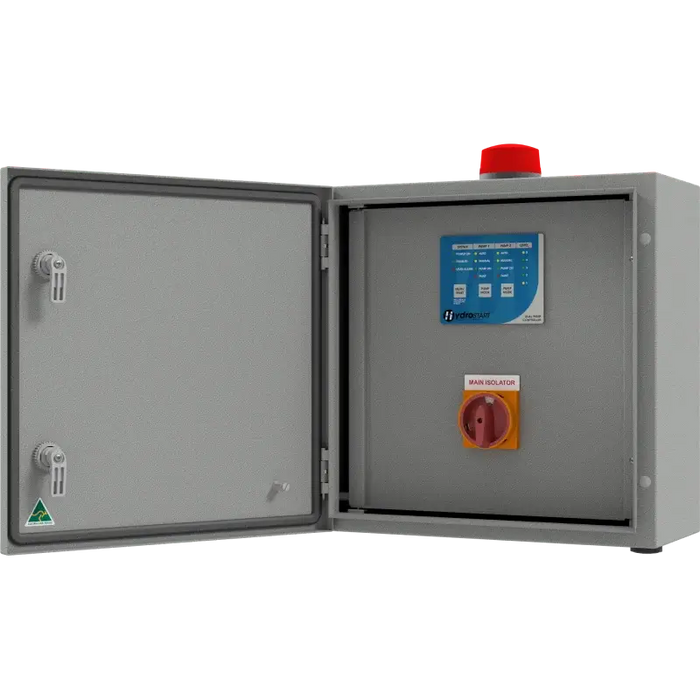

HydroSTART Battery Backup High Level Alarm (3PH 2 Pump 0.1-16A c/w ID & Battery Backup High Level Alarm) - FPC-82243-BBHLS

The HydroSTART Battery Backup High Level Alarm configuration provides a battery backup high-level alarm function for the HydroSTART controller. It is configured for two three-phase pumps with an IP56 inner-door enclosure and adjustable electronic pump protection.

Product Details

Enclosure

• Enclosure size: 400x400x200mm
• Powder coated mild steel enclosure with removable gland plate
• IP56 rated with inner door for outdoor mounting

• Enclosure size will increase for optional additions


Protection

• Pad-lockable mains power isolator switch
• Low voltage control and input circuitry
• Individual pump circuit breaker protection/isolation
• Contactors for pump switching
• Electronic short and overload protection of alarms
• Din rail mounted terminal connections

Control & Interface

• HydroSTART dual pump capacitive touch keypad interface
• Indicator lights for system, pump and input status, and level alarm
• Buttons for alarm mute/reset and pump mode selection
• HydroSTART PCB control module with dipswitches for adjusting configuration
• Visual (strobe) and audible (buzzer) alarms
• Pump current sensing providing adjustable overload and other protections
• Battery backup high-level alarm

Inputs

• Three phase (400Vac) power supply

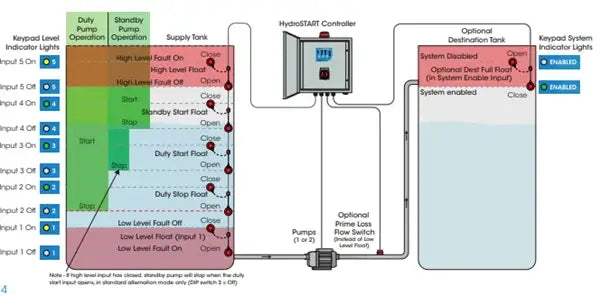

• Up to 6 digital inputs for float or pressure switches
• Standard terminal setup for low level, duty stop, duty start, standby start, high level and system enable

Outputs

• 2x pump supply outputs
• BMS volt-free output for common fault
• Modbus RTU Serial RS485 connections for SCADA
