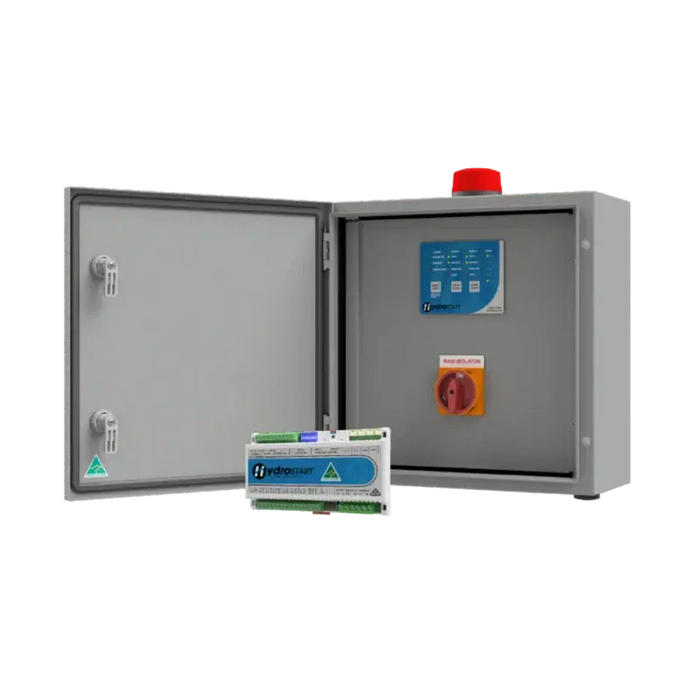

HydroSTART Auto-Generator Changeover (3PH 2 Pump 0.1-16A c/w ID & ATS) - FPC-82243-ATS

MATelec Australia’s HydroSTART Controller brings the features of the standard single and dual pump controllers into a new age with a redesigned capacitive touch keypad and control module with pump current sensing, providing wide range electronic overload protection for both single and three phase pumps.

Additional control inputs and functionality have been incorporated into the design to enhance the controller’s flexibility and cover a wide range of pumping applications. This configuration includes an automatic generator changeover switch for continued pump operation during mains power failure.

Product Details

Enclosure

• Enclosure size: 400x400x200mm
• Powder coated mild steel enclosure with removable gland plate
• IP56 rated with inner door for outdoor mounting

• Enclosure size will increase for optional additions


Protection

• Pad-lockable mains power isolator switch
• Low voltage control and input circuitry
• Individual pump circuit breaker protection/isolation
• Contactors for pump switching
• Electronic short and overload protection of alarms
• Din rail mounted terminal connections

Control & Interface

• HydroSTART dual pump capacitive touch keypad interface
• Indicator lights for system, pump and input status, and level alarm
• Buttons for alarm mute/reset and pump mode selection
• HydroSTART PCB control module with dipswitches for adjusting configuration
• Visual (strobe) and audible (buzzer) alarms
• Pump current sensing providing adjustable overload and other protections

Inputs

• Three phase (400Vac) power supply
• Up to 6 digital inputs for float or pressure switches, optional prime loss flow switch and system enable
• Standard terminal setup for low level, duty stop, duty start, standby start, high level and system enable

Outputs

• 2x pump supply outputs
• BMS volt-free output for common fault
• Modbus RTU Serial RS485 connections for SCADA

Additional Option

• Automatic generator changeover switch (ATS)
