Filtaworx Plastic Fully Automatic Self-Cleaning Screen Filter Electric Control – PF-080-EL – 80mm – 6 Bar – 14-40 m³/hr – 90° Angle – 240V/12V DC
by Filtaworx
SKU PF-080-EL
Original price
$5,993.63
-
Original price
$5,993.63
Original price
$5,993.63
$5,993.63
-
$5,993.63
Current price
$5,993.63
📢 For orders over $100, FREE Shipping Australia-wide

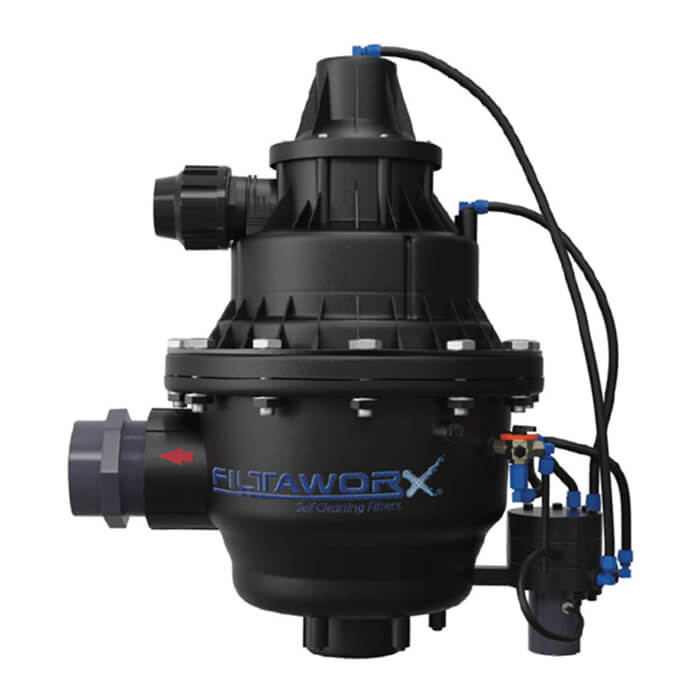

The Helix Hydro Plastic Fully Automatic Self-Cleaning Screen Filter features electric controls using a 240V AC or 12V DC control panel, allowing backwash by both pressure differential and time. This 90° angle filter has a maximum operating pressure of 600 kPa (PN6) and a filter area of 1217 cm². The electric control system provides flexible scheduling options for backwash cycles.
Suitable Applications
- Agricultural irrigation systems
- Industrial water filtration
- Municipal water treatment
- Automated filtration systems
- Sites with available electrical power
Key Specifications
| Product Name | Plastic Fully Automatic Self-Cleaning Screen Filter – Electric Control |
| Product Number | PF-080-EL |
| Product Type | Fully Automatic Self-Cleaning Screen Filter |
| Control Type | Electric – backwash by DP and time |
| Configuration | 90° Angle Inlet/Outlet |
| Size | 80 mm |
| Pressure Rating | 600 kPa (PN6) |
| Filter Area | 1217 cm² |
| Flow Rate Range | 14 – 40 m³/hr |
| Body Material | Plastic |
| Backwash Activation | Pressure differential (DP) and time |
| Voltage Options | 240V AC or 12V DC |
| Included Components | Electric control panel |
