Filtaworx Online Series Fully Automatic Self-Cleaning Screen Filter Hydraulic Control – FW250EX – 250mm – 10 Bar – 40-400 m³/hr – Parallel Inlet/Outlet (Extended Area)
by Filtaworx
SKU FW250EX
Original price
$56,104.13
-
Original price
$56,104.13
Original price
$56,104.13
$56,104.13
-
$56,104.13
Current price
$56,104.13
📢 For orders over $100, FREE Shipping Australia-wide

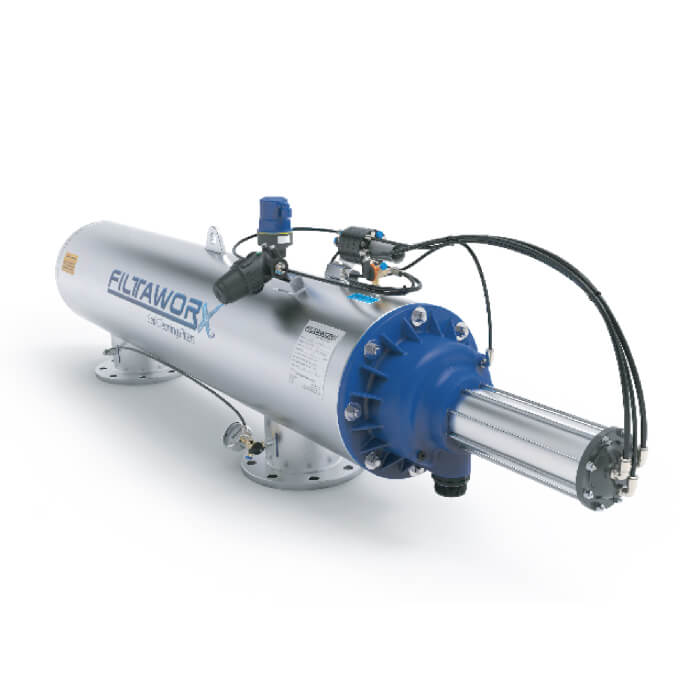

The Helix Hydro Online Series Fully Automatic Self-Cleaning Screen Filter features a parallel inlet/outlet configuration with hydraulic controls using the Hydraulic DP Rinse Controller, requiring no external power. This extended area model (EX) provides enhanced dirt-holding capacity of 10415 cm² for challenging water conditions. The filter body is constructed from SS304 stainless steel as standard (SS316L and SS904L available on request), with a fine screen made of SS316L. The filter has a maximum operating pressure of 1000 kPa (150 psi / 10 Bar) and is supplied with a liquid-filled pressure gauge, 3-way pressure check valve, and 25 mm air valve.
Suitable Applications
- Large-scale agricultural irrigation systems with poor water quality
- Municipal water treatment plants
- Industrial process water filtration
- Remote installations without electrical power
- Raw water intake protection with high sediment loads
Key Specifications
| Product Name | Online Series Fully Automatic Self-Cleaning Screen Filter – Hydraulic Control – Extended Area |
| Product Number | FW250EX |
| Product Type | Online Series Fully Automatic Self-Cleaning Screen Filter |
| Control Type | Hydraulic – no external power required |
| Configuration | Parallel Inlet/Outlet |
| Size | 250 mm |
| Pressure Rating | 10 Bar (1000 kPa / 150 psi) – PN16 high pressure available |
| Filter Area | 10415 cm² |
| Flow Rate Range | 40 – 400 m³/hr |
| Body Material | SS304 stainless steel (SS316L, SS904L on request) |
| Fine Screen Material | SS316L stainless steel |
| Included Components | Liquid-filled pressure gauge, 3-way pressure check valve, 25 mm air valve |
| Controller | Hydraulic DP Rinse Controller |
| Power Requirement | None – fully hydraulic |
