Grundfos UNILIFT APG.40.10.1 Single phase without float switch – 92616916
📢 For orders over $100, FREE Shipping Australia-wide

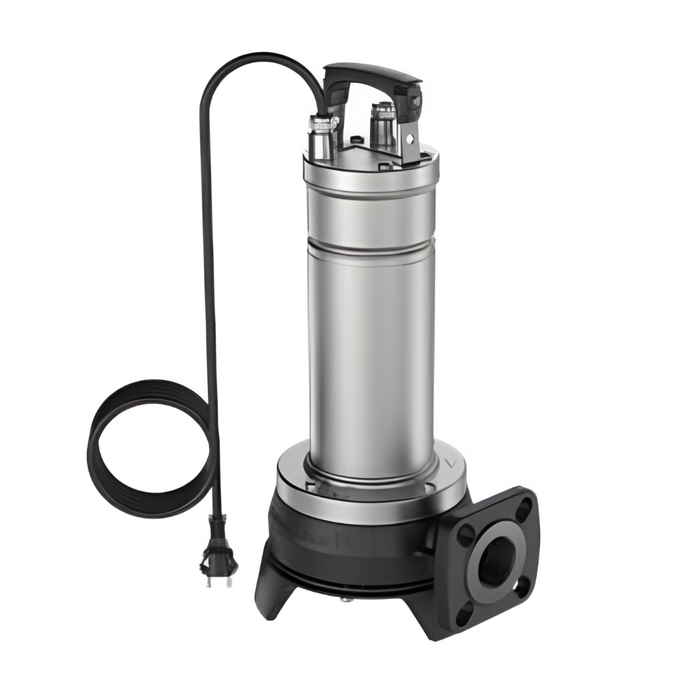

The Grundfos UNILIFT APG.40.10.1 is a single-stage submersible wastewater pump designed for pressurised domestic wastewater systems. Featuring an integrated grinder system, the pump efficiently reduces destructible solids into small particles, enabling reliable pumping through small-diameter pressure pipes. This makes it ideal for residential and light commercial applications where gravity sewer systems are unavailable, such as one- or two-family houses and areas with significant terrain-level differences. Manufactured from durable cast iron and stainless steel, the UNILIFT APG ensures high reliability, corrosion resistance, and easy servicing. The pump supports both auto-coupling and free-standing submerged installations, offering flexible installation options.
Key Specifications:
| Product Model | UNILIFT APG.40.10.1 |
| Product Number | 92616916 |
| Application | Domestic wastewater (pressurised systems) |
| Rated Flow | 2 l/s |
| Rated Head | 15 m |
| Impeller Type | Grinder system |
| Max Particle Size | 40 mm |
| Liquid Temperature Range | 0 – 70 °C |
| Selected Liquid Temperature | 20 °C |
| Maximum Installation Depth | 7 m |
| Outlet Connection | DIN / Rp DN32/40 (1½ inch) |
| Pressure Rating | PN 10 |
| Auto-Coupling System | 96076063 |
| Pump Housing | Cast iron (EN-GJL-200) |
| Impeller Material | Composite (PPE-PS-GF30) |
| Motor Housing | Stainless steel (AISI 304) |
| Power Input (P1) | 1.3 kW |
| Rated Power (P2) | 1.0 kW |
| Rated Voltage | 1 × 220–240 V |
| Mains Frequency | 50 Hz |
| Rated Current | 5.7 – 5.9 A |
| Rated Speed | 2850 rpm |
| Enclosure Class | IP68 |
| Insulation Class | F |
| Power Cable Length | 10 m |
| Power Plug | Australian plug (Type I – AS/NZS 3112) |
| Float Switch | No |
| Net Weight | 23.2 kg |
| Gross Weight | 24.8 kg |
| Country of Origin | HU |
| Approvals | CE, LGA, RCM |
| Environmental Approval | WEEE |
Documentation & Downloads:
| Document | Download |
|---|---|
| Grundfos Wastewater Products – Product Brochure | 📄 Download PDF |
| UNILIFT AP/AP Basic Range | 📄 Download PDF |
| Grundfos UNILIFT APG – Product Brochure | 📄 Download PDF |
| UNILIFT APG – Installation & Operation Instructions | 📄 Download PDF |
| UNILIFT APG – Safety Instructions | 📄 Download PDF |
| UNILIFT APG – Service Instructions | 📄 Download PDF |
