Grundfos CRN 45-3 A-F-A-V-HQQV Vertical Multistage Centrifugal Pump – 96123146 (3 x 380-415D/660-690YD)
by Grundfos
SKU 96123146
Original price
$12,848.69
-
Original price
$12,848.69
Original price
$12,848.69
$12,848.69
-
$12,848.69
Current price
$12,848.69
📢 For orders over $100, FREE Shipping Australia-wide

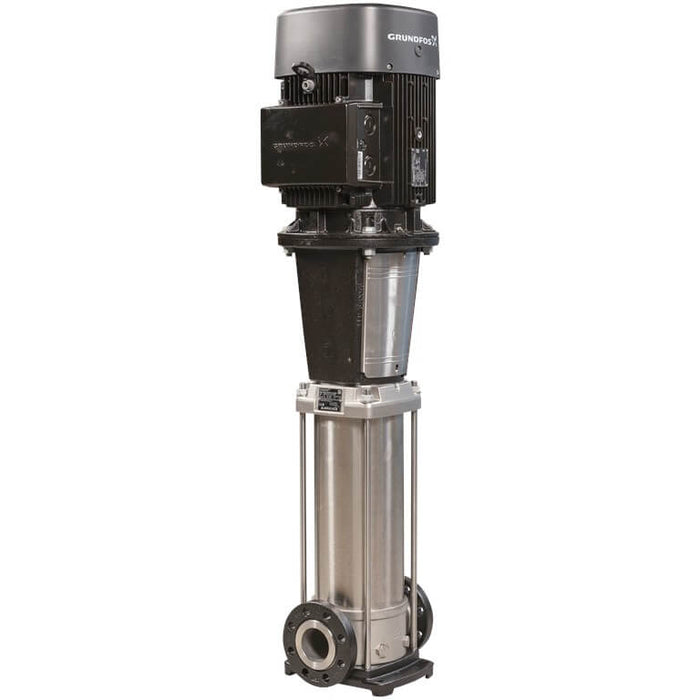

The CRN 45-3 A-F-A-V-HQQV is a vertical, non-self-priming, multistage inline centrifugal pump designed for installation in pipe systems and mounting on a foundation. All wetted parts are high-grade stainless steel (EN 1.4401 / AISI 316). It features a HQQV shaft seal, DIN flanges, and a 3-phase IEC motor.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reverse osmosis water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Groundwater transfer
- Pivot irrigation
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | CRN 45-3 A-F-A-V-HQQV |
| Product Number | 96123146 |
| Pump Type | Vertical multistage centrifugal (inline, non-self-priming) |

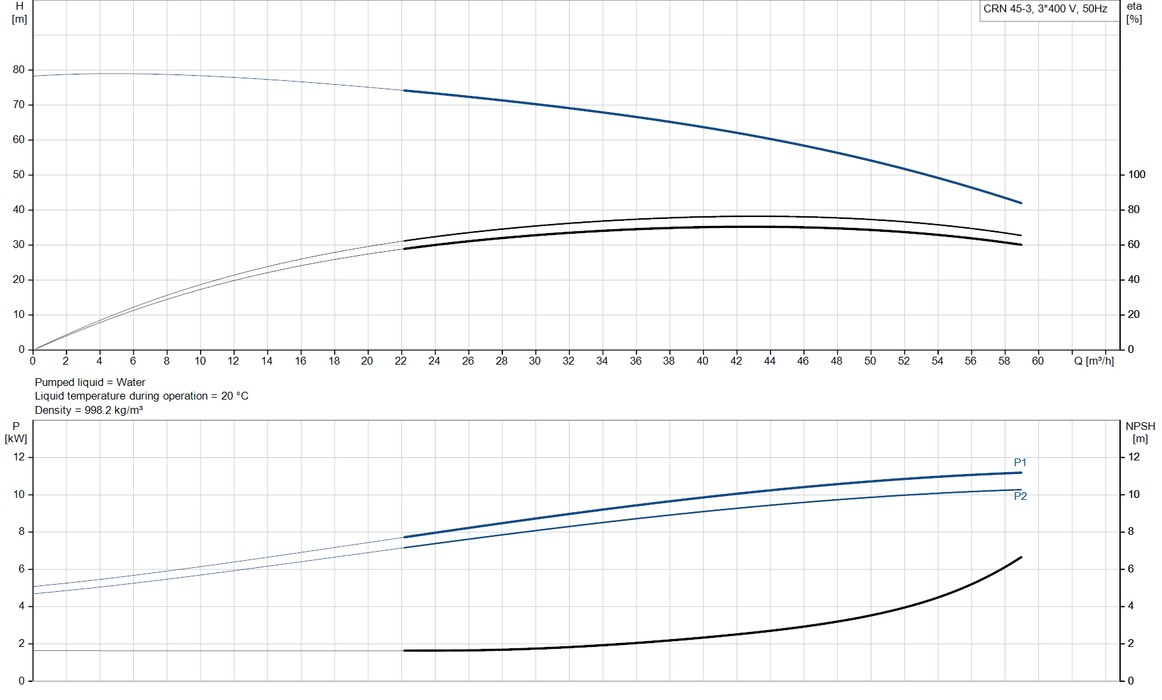

| Rated Flow | 45 m³/h |
| Rated Head | 59.4 m |
| Speed (Pump Data) | 2924 rpm |
| Shaft Seal | HQQV |
| Liquid Temperature Range | -20 to 90 °C |
| Maximum Operating Pressure | 16 bar |
| Connections | DIN flanges, DN 80 PN 40 |
| Base Material | Stainless steel EN 1.4408 / AISI 316 |
| Impeller Material | Stainless steel EN 1.4401 / AISI 316 |
| Bearing | SIC + Graflon support bearing |

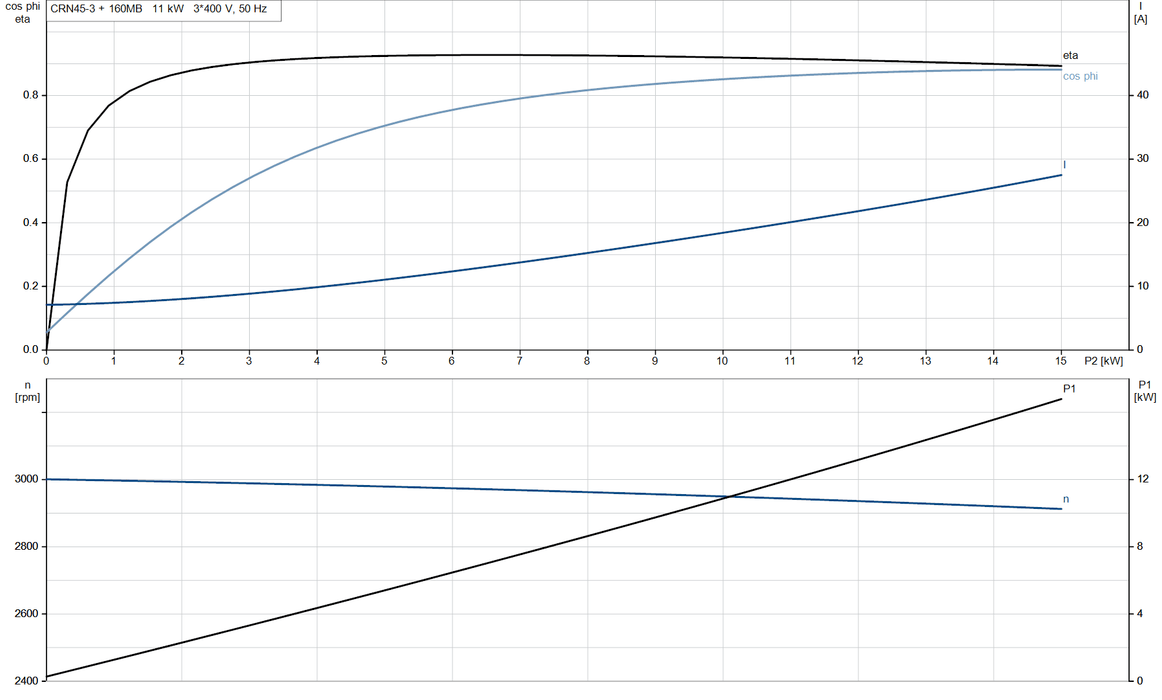

| Motor Power (P2) | 11.0 kW |
| Voltage | 3 × 380–415D / 660–690Y V |
| Frequency | 50 Hz |
| Rated Current | 20.8–19.8 / 12.0–11.8 A |
| Motor Efficiency Class | IE3 |
| Motor Efficiency (Full Load) | 91.2 % |
| Enclosure Class | IP55 Dust/Jetting |
| Insulation Class | F |
| MEI | ≥ 0.70 |
| Net / Gross Weight | 164 / 196 kg |
| Shipping Volume | 0.495 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, WRAS |
| Country of Origin | TW |
Documentation & Downloads
| Product Datasheet — CRN 45-3 A-F-A-V-HQQV | Download |
