Filtaworx Semi-Automatic Brush Filter Inline – FWSA2-200 – 200mm – 10 Bar – 320 m³/hr – SS304/SS316
by Filtaworx
SKU FWSA2-200
Original price
$8,415.00
-
Original price
$8,415.00
Original price
$8,415.00
$8,415.00
-
$8,415.00
Current price
$8,415.00
📢 For orders over $100, FREE Shipping Australia-wide

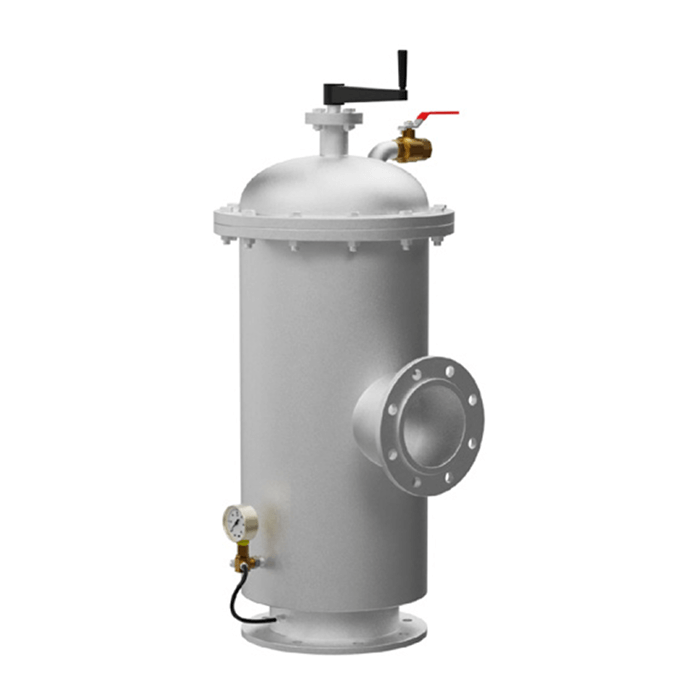

The FILTAWORX® Semi-Automatic Brush Filter in Inline configuration features a straight-through design for easy integration into existing pipelines. The body is manufactured from 304 stainless steel pipe with no welds, ensuring durability and corrosion resistance. The fine screen is constructed from 316 stainless steel, and the brush is made of stainless steel. The filter operates at a pressure rating of 10 bar with a maximum working temperature of 65°C. It is supplied complete with a flush valve and pressure gauges.
Suitable Applications
- Large-scale agricultural irrigation
- Industrial water filtration
- Municipal water treatment
- Raw water intake protection
- Inline pipeline installations
Key Specifications
| Product Name | FILTAWORX Semi-Automatic Brush Filter – Inline |
| Product Number | FWSA2-200 |
| Product Type | Semi-Automatic Brush Filter |
| Configuration | Inline (straight-through) |
| Filter Size | 200 mm |
| Nominal Flow Rate | 320 m³/hr |
| Pressure Rating | 10 bar |
| Body Material | 304 Stainless Steel pipe (no welds) |
| Fine Screen Material | 316 Stainless Steel |
| Brush Material | Stainless Steel |
| Maximum Working Temperature | 65°C |
| Included Components | Flush valve, pressure gauges |
