Filtaworx Automatic Brush Filter Electric Drive 90° Angle – FWAE1-100 – 100mm – 10 Bar – 80 m³/hr – 240V
by Filtaworx
SKU FWAE1-100
Original price
$12,540.00
-
Original price
$12,540.00
Original price
$12,540.00
$12,540.00
-
$12,540.00
Current price
$12,540.00
📢 For orders over $100, FREE Shipping Australia-wide

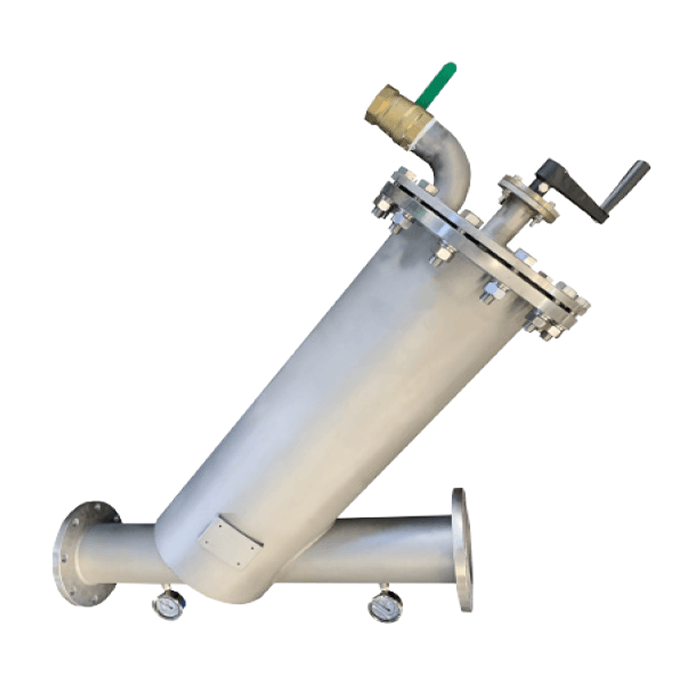

The FILTAWORX® Automatic Brush Filter with Electric Drive features automatic backwashing based on both pressure differential and time. The body is manufactured from 304 stainless steel pipe with no welds, and the fine screen is constructed from 316 stainless steel. The stainless steel brush ensures effective cleaning. The filter operates at a pressure rating of 10 bar with a maximum working temperature of 65°C. The electric drive automates the cleaning cycle, eliminating manual intervention.
Suitable Applications
- Large-scale agricultural irrigation
- Municipal water treatment
- Industrial process water
- Remote or automated filtration systems
Key Specifications
| Product Name | FILTAWORX Automatic Brush Filter – Electric Drive – 90° Angle |
| Product Number | FWAE1-100 |
| Product Type | Automatic Brush Filter with Electric Drive |
| Configuration | 90° Angle |
| Filter Size | 100 mm |
| Nominal Flow Rate | 80 m³/hr |
| Pressure Rating | 10 bar |
| Body Material | 304 Stainless Steel pipe (no welds) |
| Fine Screen Material | 316 Stainless Steel |
| Brush Material | Stainless Steel |
| Maximum Working Temperature | 65°C |
| Backwash Activation | Pressure differential and time |
| Included Components | Flush valve, pressure gauges |
