Ebara MATRIX 10-5T/2.2M-MC22 Multistage Pressure System Centrifugal Pump – Y247105-7600-22
📢 For orders over $100, FREE Shipping Australia-wide

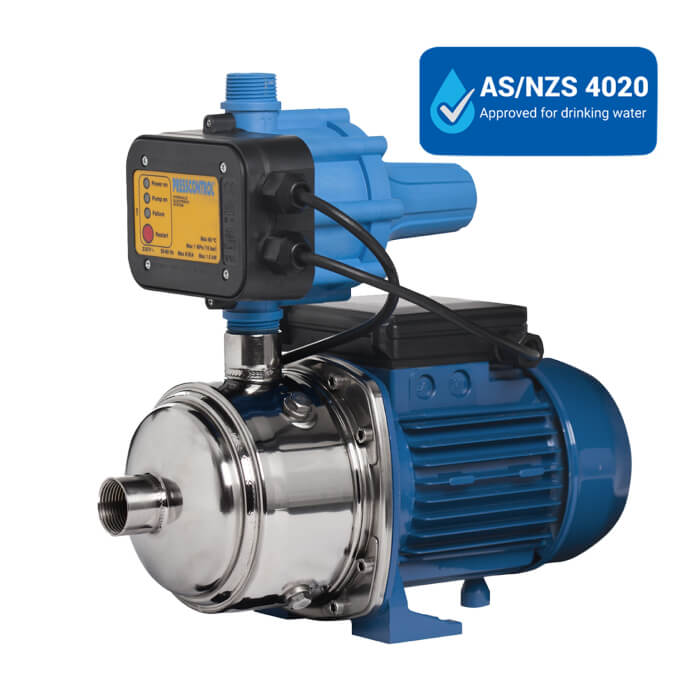

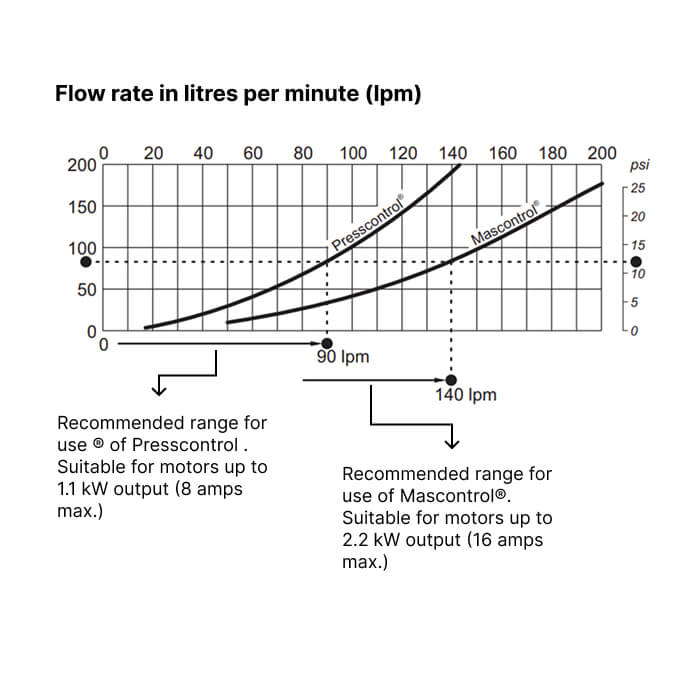

The Ebara MATRIX 10-5T/2.2M-MC22 is a single-phase, multistage pressure system designed for high-demand domestic water supply and pressure boosting applications. Constructed with a stainless steel pump casing and impellers, this unit features a built-in Mascontrol® automatic controller with a 2.2 Bar restart pressure. It is supplied complete with a 1.4 m power cable and 15 Amp plug (required for 2.2 kW model). The system delivers a nominal duty flow rate of 155 L/min at 425 kPa, making it ideal for larger homes with multiple bathrooms and extensive garden watering, supporting up to 14 taps. The Mascontrol® controller is suitable for motors up to 2.2 kW output (16 amps max.) and the system is compliant with AS/NZS 4020.
Suitable Applications
- Larger homes with multiple bathrooms and extensive garden watering
- Domestic water supply for multi-level buildings and elevated positions
- Higher pressure for two storey houses, elevated positions, and long pipe runs
- Pressure boosting for existing water systems
- Drinking water supply
- Garden irrigation
- Emptying of tanks and swimming pools
Key Specifications
| Product Name | MATRIX 10-5T/2.2M-MC22 |
| Product Number | Y247105-7600-22 |
| Pump Type | Multistage Centrifugal Pressure System |
| Discharge / Suction Size | 32 mm / 40 mm (Discharge of Mascontrol is 32 mm, pump discharge is 25 mm) |
| Motor Power (P2) | 2.2 kW |
| Voltage | 230V |
| Phase | Single phase (1 ph) |
| Cable Length | 1.4 m (with 15 Amp plug) |
| Nominal Duty Flow Rate | 155 L/min |
| Pressure Rating | 425 kPa |
| Controller Type | Mascontrol® (automatic) |
| Controller Model | MC22 |
| Restart Pressure | 2.2 Bar |
| Minimum Pump Head Required | 35 m hd |
| Max Height of Tap Above Controller | 22 m |
| Inlet & Outlet Connection | 1¼" male threaded |
| Maximum Pressure Rating | 10 Bar |
| Maximum Current | 16 Amps |
| Packing Size (W x D x H) | 59 x 36 x 55 cm |
| Shipping Weight | 25 kg |
| Warranty | 2 years (Parts & Labour) |
| Approvals | CE, AS/NZS 4020 |

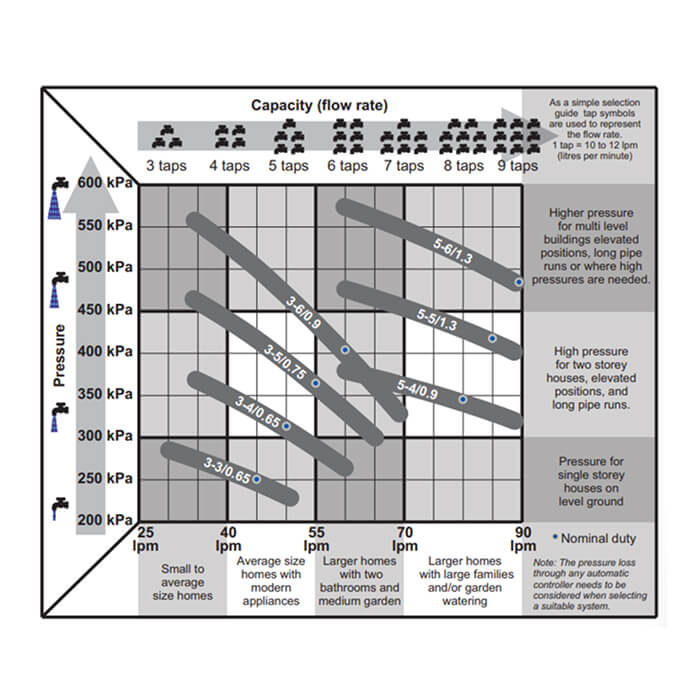

Performance Data
| Flow Rate (L/min) | 0 | 50 | 100 | 150 | 155 | 200 |
| Pressure (kPa) | — | — | — | — | 425 | — |
Documentation & Downloads
| Ebara JESX/JEX/MATRIX Boosters – Product Brochure | Download |
