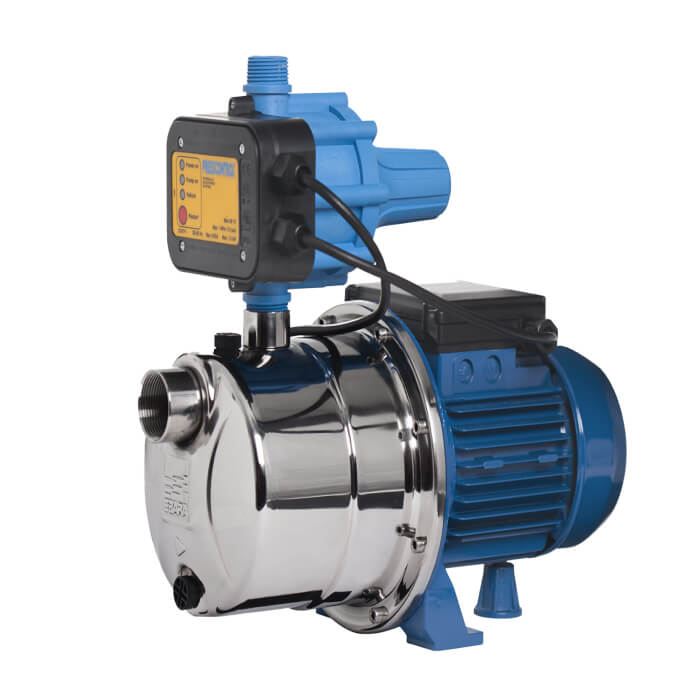

Ebara JESX M6-PC15 Self-Priming Jet Pump Centrifugal with Presscontrol® Controller – Y169006-6700
by Ebara
SKU Y169006-6700
Original price
$816.75
-
Original price
$816.75
Original price
$816.75
$816.75
-
$816.75
Current price
$816.75
📢 For orders over $100, FREE Shipping Australia-wide
The Ebara JESX M6-PC15 is a single-phase, self-priming jet pump designed for domestic water supply and pressure boosting applications. Constructed with a robust 304 stainless steel pump casing, this unit features a Noryl impeller, venturi, and diffuser for reliable performance. It is equipped with a built-in Presscontrol® automatic controller with a 1.5 Bar restart pressure, and a carbon/ceramic mechanical seal for enhanced longevity. The pump has a maximum liquid temperature of 45°C and is supplied complete with a 1.4 m power cable and 3-pin plug.
Suitable Applications
- Domestic water supply for single storey houses on level ground
- Small weekenders, cabins, and small to average size homes
- Pressure boosting for existing water systems
- Water transfer from tanks and wells
- Small-scale garden irrigation
Key Specifications
| Product Name | JESX M6-PC15 |
| Product Number | Y169006-6700 |
| Pump Type | Self-Priming Jet Pump (Surface Pump) with Presscontrol® | Discharge / Suction Size | 25 mm / 25 mm |
| Motor Power (P2) | 0.44 kW |
| Voltage | 230V |
| Phase | Single phase (1 ph) |
| Cable Length | 1.4 m (with moulded 3-pin plug) |
| Nominal Duty Flow Rate | 30 L/min |
| Pressure Rating | 215 kPa |
| Controller Type | Presscontrol® (automatic) |
| Restart Pressure | 1.5 Bar |
| Minimum Pump Head Required | 30 m hd |
| Max Height of Tap Above Controller | 15 m |
| Inlet & Outlet Connection | 1" male threaded |
| Maximum Pressure Rating | 10 Bar |
| Maximum Current | 8 Amps | Maximum Liquid Temperature | 45°C |
| Pump Casing Material | 304 Stainless Steel |
| Impeller Material | Noryl | Venturi & Diffuser Material | Noryl |
| Shaft Seal | Carbon/Ceramic Mechanical Seal |
| Packing Size (W x D x H) | 46 x 26 x 41 cm |
| Shipping Weight | 9 kg |
| Warranty | 2 years (Parts & Labour) |
| Approvals | CE |
Performance Data
| Flow Rate (L/min) | 0 | 10 | 20 | 30 | 40 |
| Pressure (kPa) | — | — | — | 215 | — |
Documentation & Downloads
| Ebara JESX/JEX/AG Jet Pumps – Instruction Manual | Download |
| Ebara JESX/JEX/MATRIX Boosters – Product Brochure | Download |
