Ebara Best One Vox MA Stainless Steel Domestic Sump Pump Submersible Centrifugal – 174110-6700
📢 For orders over $100, FREE Shipping Australia-wide

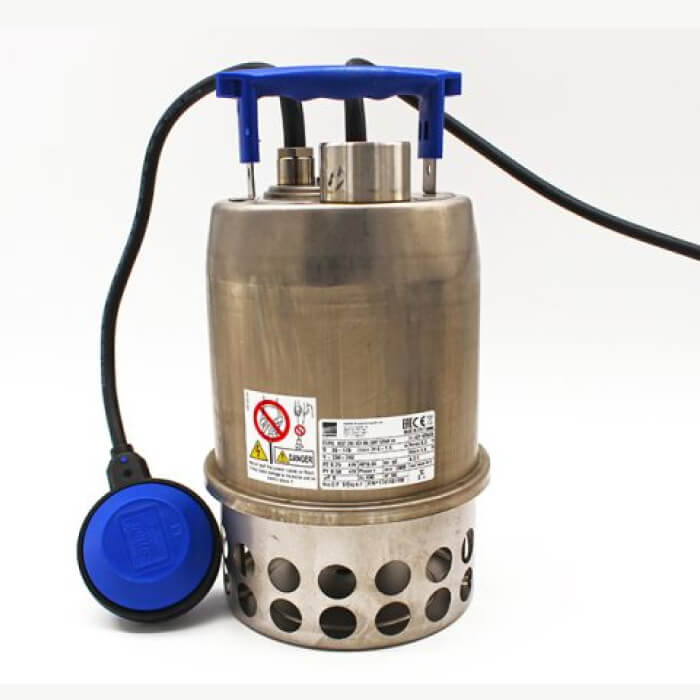

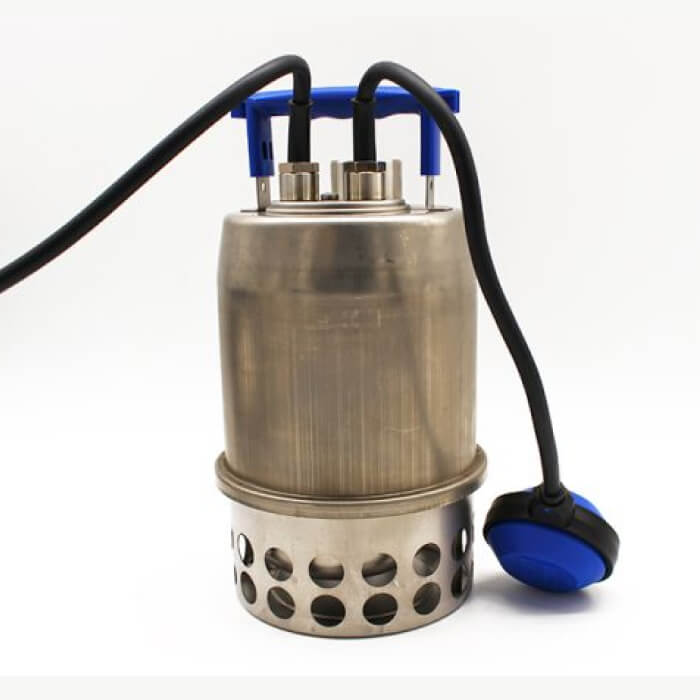

The Ebara Best One Vox MA is a single-phase, automatic submersible centrifugal pump designed for demanding domestic sump and drainage applications. It features a robust AISI 304 stainless steel construction throughout, including the pump casing, outer casing, motor frame, motor cover, and strainer. The innovative vortex impeller, also in AISI 304 stainless steel, allows the pump to handle soft solids up to 20 mm without clogging. The unit is equipped with a carbon/ceramic mechanical seal in an oil bath with an upper lip seal for extended life, a built-in capacitor, and thermal overload protection. The automatic model (MA) includes a float switch for hands-free operation, and the pump is supplied with a 5-meter power cable and moulded 3-pin plug.
Suitable Applications
- Draining basements, garages, cellars, and other flooded rooms
- Emptying tanks, reservoirs, and drums
- General transfer of water containing soft solids
- Flood irrigation of gardens and vegetable plots
- Supplying water to garden fountains
Key Specifications
| Product Name | Best One Vox MA |
| Product Number | 174110-6700 |
| Pump Type | Submersible Centrifugal (Vortex Impeller) |
| Discharge Size | 32 mm (G1¼") |
| Motor Power (P2) | 0.25 kW (0.33 HP) | Voltage | 230V |
| Phase | Single phase (1 ph) |
| Cable Length | 5 m (with moulded 3-pin plug) |
| Maximum Head | 6.5 m |
| Speed (Pump Data) | ~2800 rpm (2-pole motor) |
| Stages / Impellers | 1 |
| Shaft Seal | Carbon/Ceramic/NBR Mechanical seal in oil bath, with upper lip seal |
| Liquid Temperature Range | 0°C to 50°C |
| Maximum Solids Handling | 20 mm (soft solids) |
| Maximum Immersion Depth | 5 m |
| Connections | Suction: Strainer; Discharge: G1¼" (UNI ISO 228) |
| Base / Head Material | Pump casing, Outer casing, Strainer: AISI 304 Stainless Steel |
| Impeller Material | AISI 304 Stainless Steel (Semi Vortex) |
| Bearing | Sealed ball bearings (Upper: 6000 ZZ C3, Lower: 6200 ZZ C3) |
| Rated Current | 2.2 A (Full load) |
| Enclosure Class | IPX8 |
| Insulation Class | F |
| Switch Type | Float switch (automatic) |
| Packing Size (W x D x H) | 22 x 19 x 33 cm |
| Shipping Weight | 6 kg |
| Approvals | CE |
Performance Data
| Capacity (L/min) | 0 | 20 | 40 | 60 | 80 | 100 | 120 |
| Capacity (m³/h) | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6.0 | 7.2 |
| Total Head (m) | 6.5 | 6.0 | 5.6 | 4.8 | 3.5 | 2.0 | 1.5 |
