Ebara Best One MA Stainless Steel Domestic Sump Pump Submersible Centrifugal – 171110-6700
by Ebara
SKU 171110-6700
Original price
$697.95
-
Original price
$697.95
Original price
$697.95
$697.95
-
$697.95
Current price
$697.95
📢 For orders over $100, FREE Shipping Australia-wide

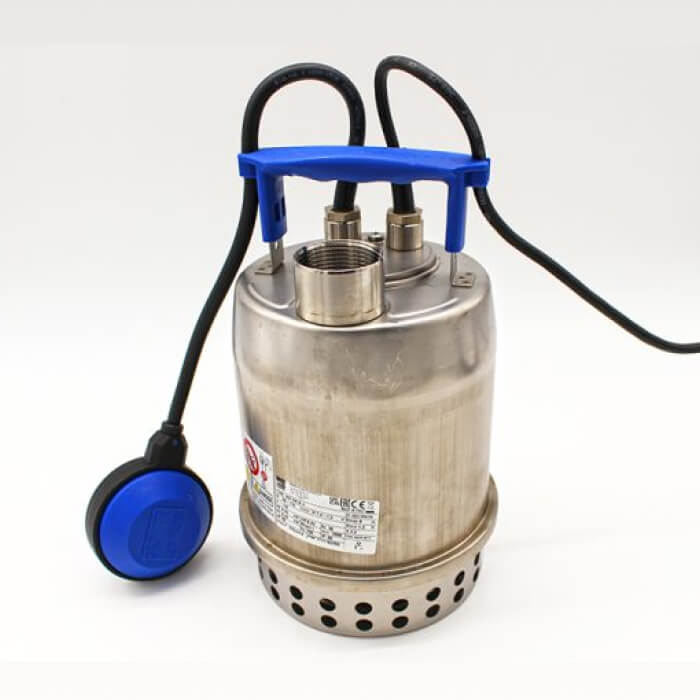

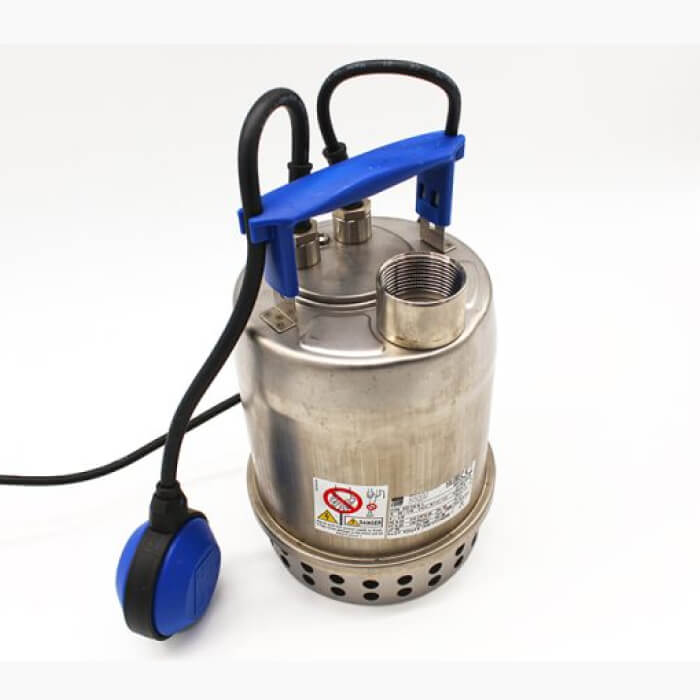

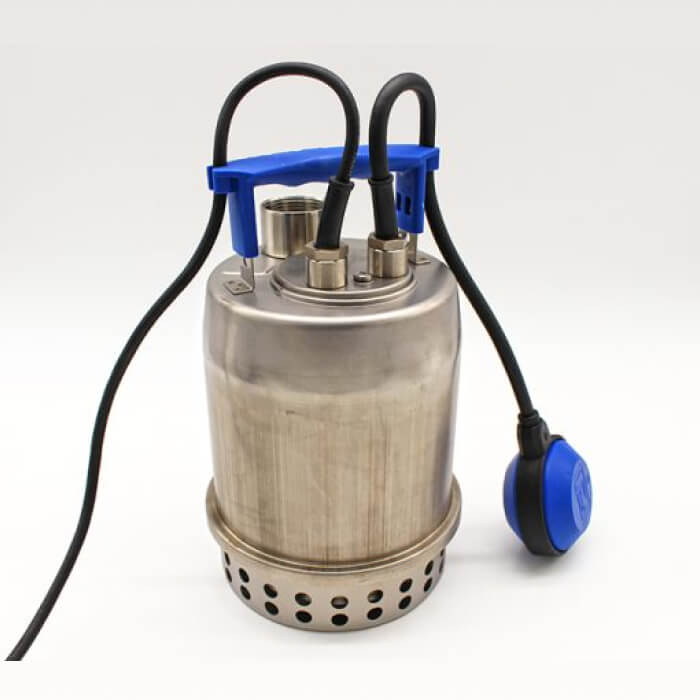

The Ebara Best One MA is a single-phase, automatic submersible centrifugal pump designed for domestic sump and drainage applications. Constructed with a robust AISI 304 stainless steel pump casing, outer casing, motor frame, and strainer, this unit features a semi-open AISI 304 stainless steel impeller for efficient solids handling. It is equipped with a carbon/ceramic mechanical seal in an oil bath with an upper lip seal for enhanced longevity, a built-in capacitor, and thermal overload protection. The automatic model (MA) includes a float switch for hands-free operation, and the pump is supplied with a 5-meter power cable and moulded 3-pin plug.
Suitable Applications
- Draining wells, basements, cellars, and garages
- Emptying tanks, drums, and reservoirs
- General transfer of clean water
- Flood irrigation of gardens and vegetable plots
- Supplying water to garden fountains
Key Specifications
| Product Name | Best One MA |
| Product Number | 171110-6700 |
| Pump Type | Submersible Centrifugal (Semi-open impeller) |
| Discharge Size | 32 mm (G1¼") |
| Motor Power (P2) | 0.25 kW (0.33 HP) |
| Voltage | 230V | Phase | Single phase (1 ph) |
| Cable Length | 5 m (with moulded 3-pin plug) |
| Maximum Head | 9.0 m |
| Speed (Pump Data) | ~2800 rpm (2-pole motor) | Stages / Impellers | 1 |
| Shaft Seal | Carbon/Ceramic/NBR Mechanical seal in oil bath, with upper lip seal |
| Liquid Temperature Range | 0°C to 50°C |
| Maximum Immersion Depth | 5 m |
| Connections | Suction: Strainer; Discharge: G1¼" (UNI ISO 228) |
| Base / Head Material | Pump casing, Outer casing, Strainer: AISI 304 Stainless Steel |
| Impeller Material | AISI 304 Stainless Steel (Semi-open) |
| Bearing | Sealed ball bearings (Upper: 6000 ZZ C3, Lower: 6200 ZZ C3) |
| Rated Current | 2.3 A (Full load) |
| Enclosure Class | IP68 / IPX8 |
| Insulation Class | F |
| Switch Type | Float switch (automatic) |
| Packing Size (W x D x H) | 22 x 19 x 33 cm |
| Shipping Weight | 6 kg |
| Approvals | CE |

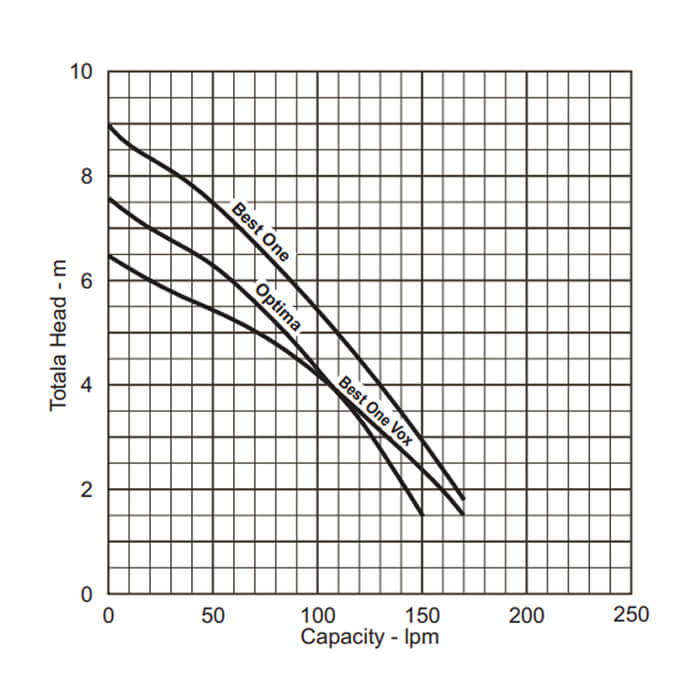

Performance Data
| Capacity (L/min) | 0 | 20 | 40 | 60 | 80 | 100 | 120 | 140 | 160 |
| Capacity (m³/h) | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6.0 | 7.2 | 8.4 | 9.6 |
| Total Head (m) | 9.0 | 8.3 | 7.8 | 6.3 | 4.5 | 2.4 | 1.8 | — | — |
Documentation & Downloads
| Ebara Best One – Data Sheet | Download |
| Ebara Best One Vox – Technical Data | Download |
| Ebara Optima/Best/Right-DW – Instruction Manual (Part 2) | Download |
| Ebara General Instruction Manual (Part 1) | Download |
