Davey XF171D Electric Transfer Pump for Dog Spas – 71101D
📢 For orders over $100, FREE Shipping Australia-wide

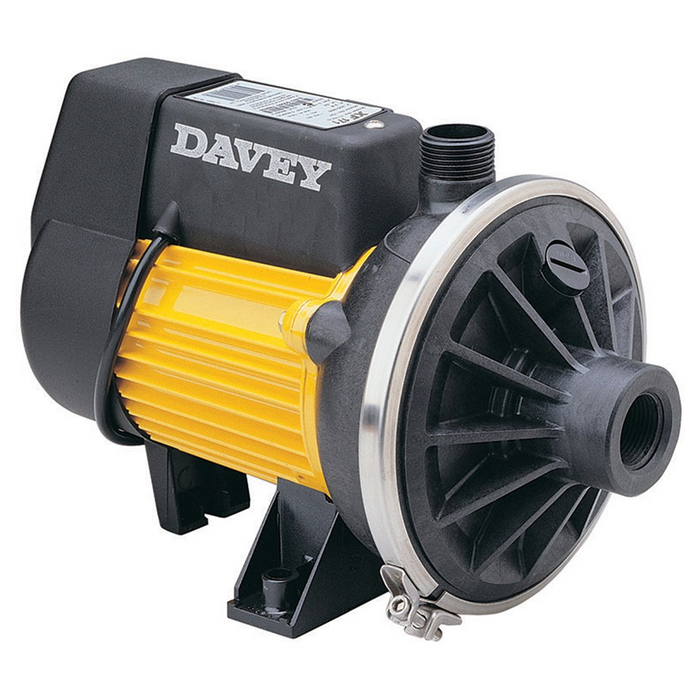

The Davey XF171D is a single‑stage centrifugal transfer pump specifically designed for pumping non‑explosive chemical solutions, including aromatic hydrocarbons used in dog washes. Made from Rilsan® nylon (glass filled nylon 12) for exceptional chemical resistance, it delivers a maximum flow of 160 L/min and a maximum head of 16 m. The pump features a corrosion‑resistant glass filled nylon 12 casing, a glass filled nylon 12 closed‑vane impeller, and a carbon/ceramic mechanical seal. The single‑phase TEFC motor (0.45 kW P2, IP55, Class F) includes built‑in thermal overload protection with automatic reset. Inlet size is 1” BSP(F), outlet 1” BSP(M). The pump is supplied with a 2 m power lead and 10A Australian 3‑pin plug. Suitable for dog/pet baths, pressure boosting, circulation, transfer duties, irrigation, aquaculture, hydroponics, and washdown.
Suitable Applications
- Dog and pet baths
- Pressure boosting
- Circulation applications
- Transfer duties
- Irrigation
- Aquaculture
- Hydroponics
- Washing systems

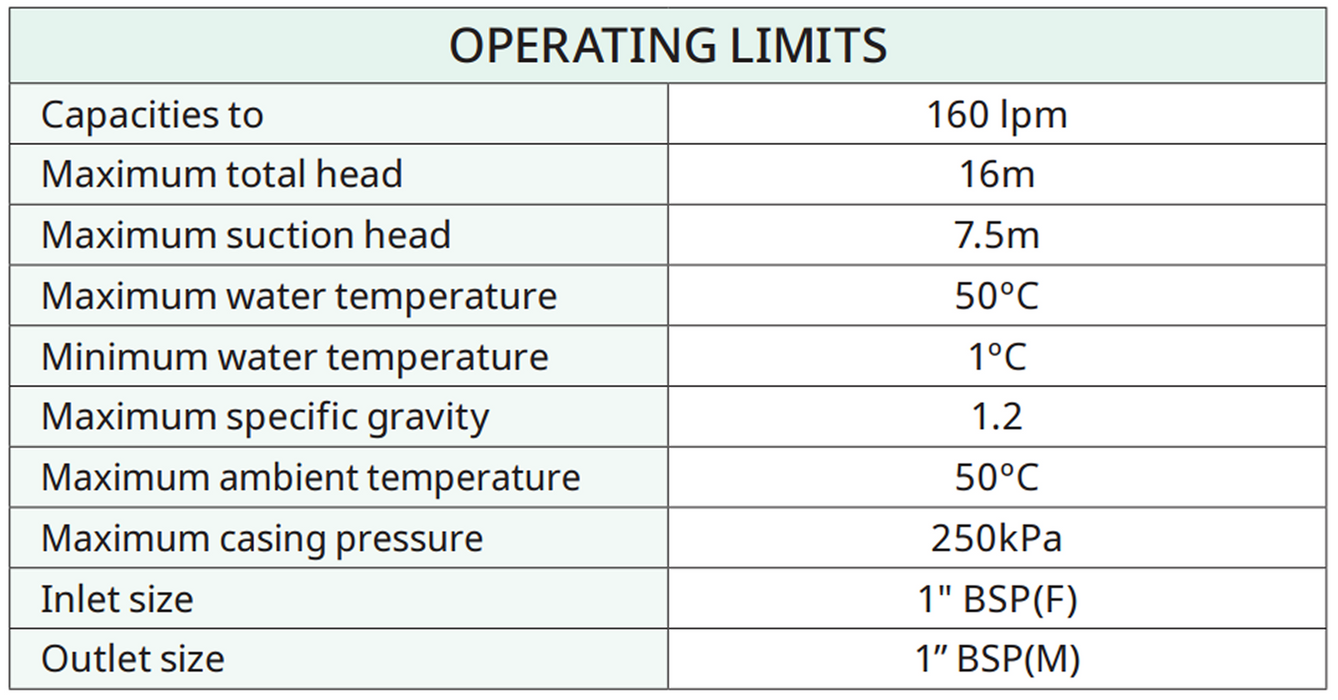

Key Specifications
| Product Name | Davey XF171D Electric Transfer Pump for Dog Spas |
|---|---|
| Product Number | 71101D |
| Model Number | XF171D |
| EAN | — |
| Pump Type | Single‑stage centrifugal transfer pump (Rilsan® nylon) |

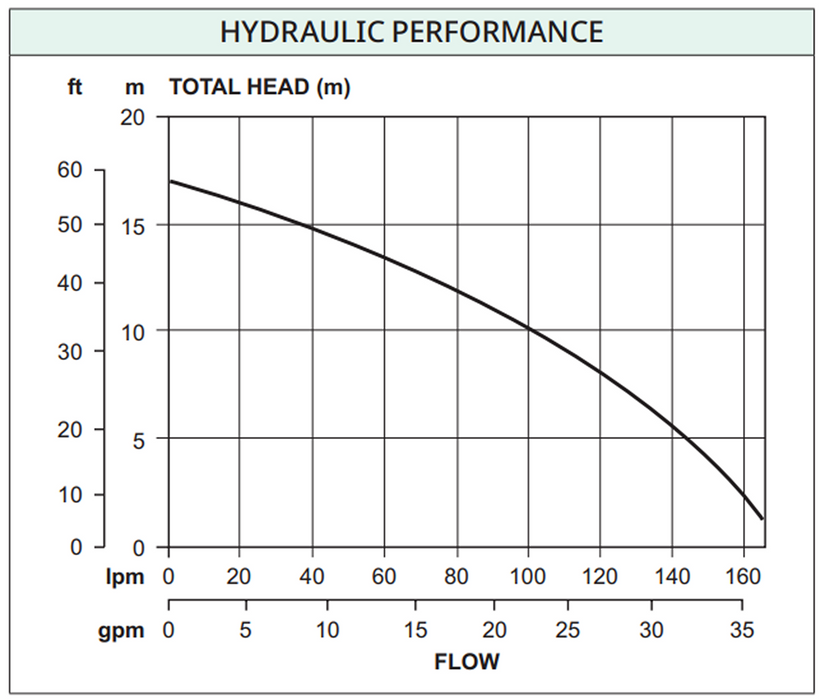

| Maximum Flow | 160 L/min (9.6 m³/h) |
| Maximum Head | 16 m |
| Maximum Suction Lift | 7.5 m |
| Maximum Water Temperature | 50 °C |
| Minimum Water Temperature | 1 °C |
| Maximum Ambient Temperature | 50 °C |
| Maximum Casing Pressure | 250 kPa |
| Maximum Specific Gravity | 1.2 |
| Inlet Connection | 1” BSP(F) |
| Outlet Connection | 1” BSP(M) |
| Pump Casing / Impeller / Suction Cover Material | Glass filled nylon 12 (Rilsan®) |
| Pump Shaft Material | 304 stainless steel |
| Mechanical Seal | Ceramic (stationary) / Carbon (rotating) / Nitrile rubber |

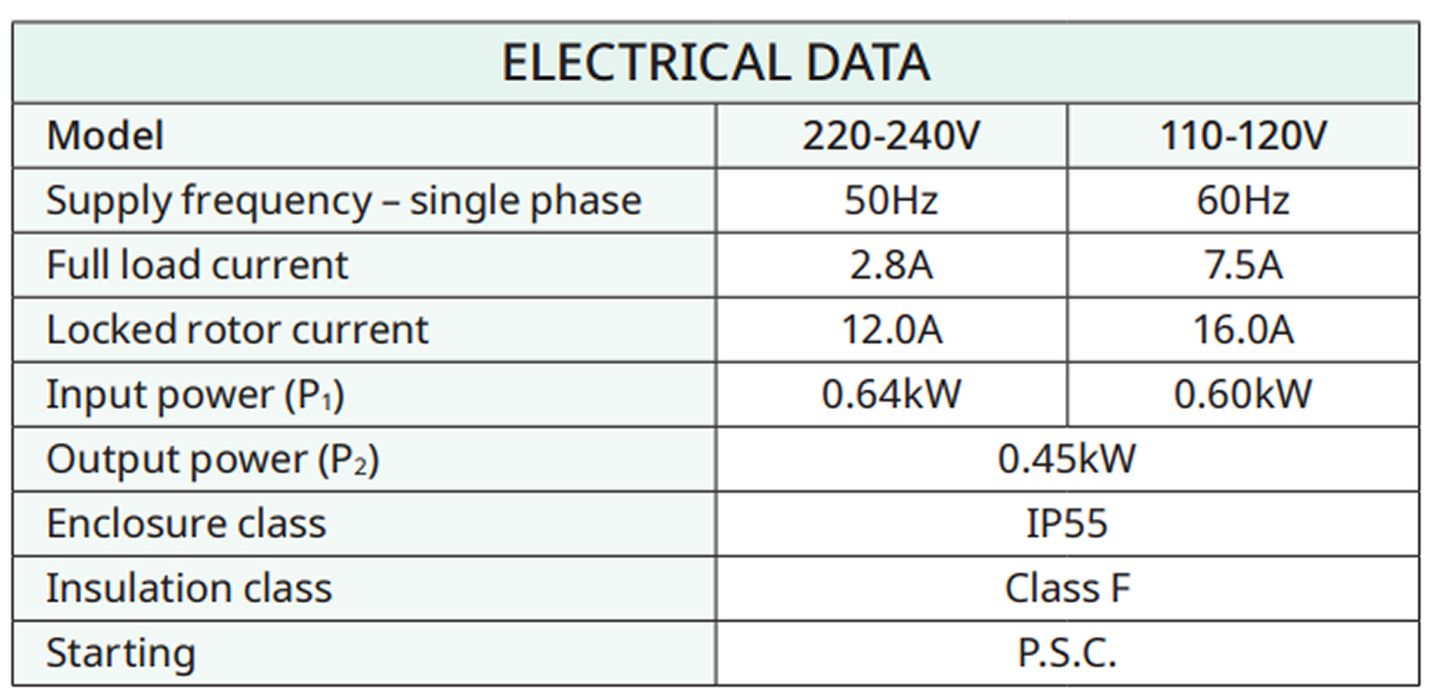

| Motor Power (P2) | 0.45 kW |
| Motor Power (P1) | 0.64 kW |
| Voltage / Frequency | 220‑240 V, 50 Hz |
| Phase | Single |
| Full Load Current | 2.8 A |
| Locked Rotor Current | 12.0 A |
| Insulation Class | F |
| Enclosure Class | IP55 |
| Motor Speed | 2850 rpm |
| Starting Method | Permanent Split Capacitor (P.S.C.) |
| Power Lead Length | 2 m (with 10A Australian 3‑pin plug) |
| Net Weight | 6.7 kg |

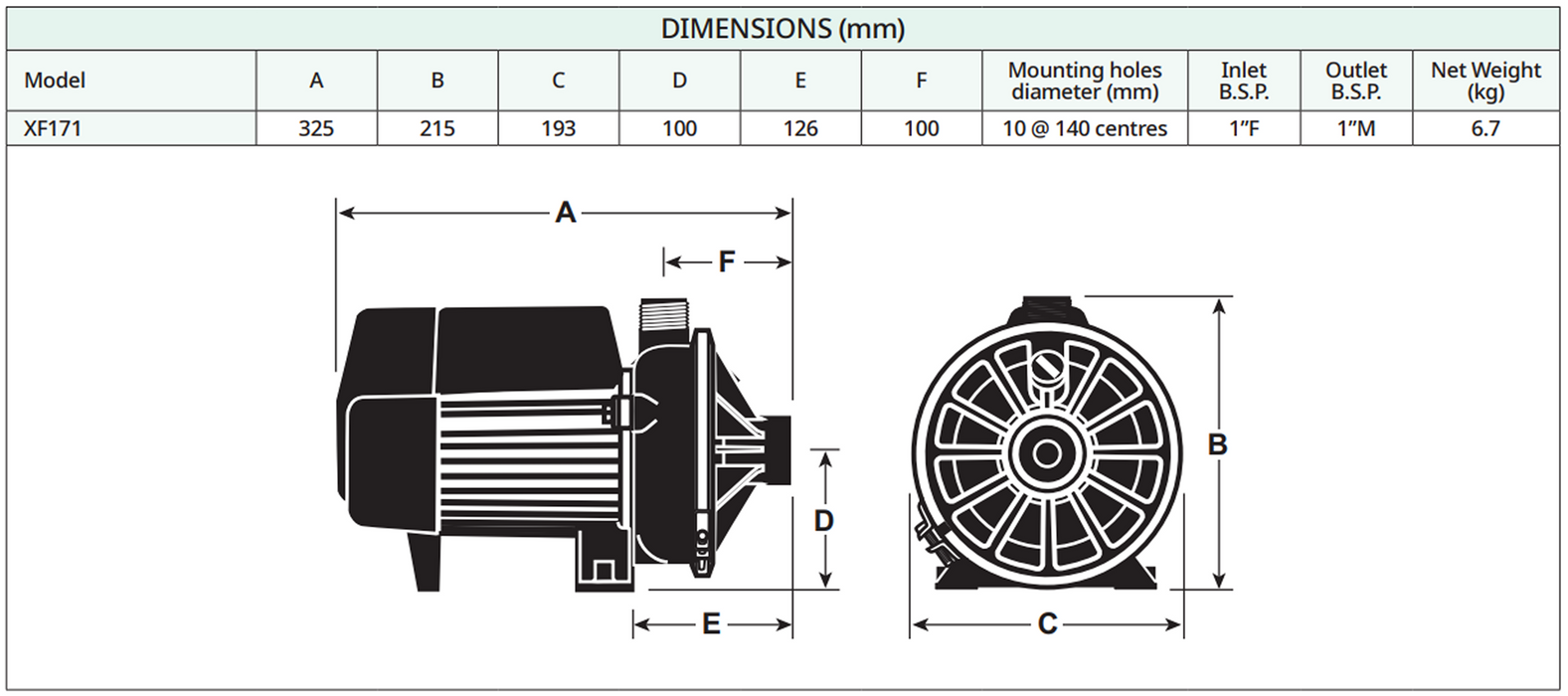

| Dimensions (L × W × H) | 325 × 215 × 193 mm |
| Approvals | ISO 9001, ISO 14001 |
Documentation & Downloads
| XF Series Electric Transfer Pump for Dog Spas Datasheet | Download |
| XF Electric Transfer Pumps Installation & Operating Instructions | Download |
Installation Note: Installations with suction lift require a good quality foot valve to avoid loss of prime. Prime by filling pump body and suction line through priming plug hole located above suction inlet. Subject to compliance with Davey recommendations and compliance with statutory requirements applicable to installation and operation of chemical pumps.
