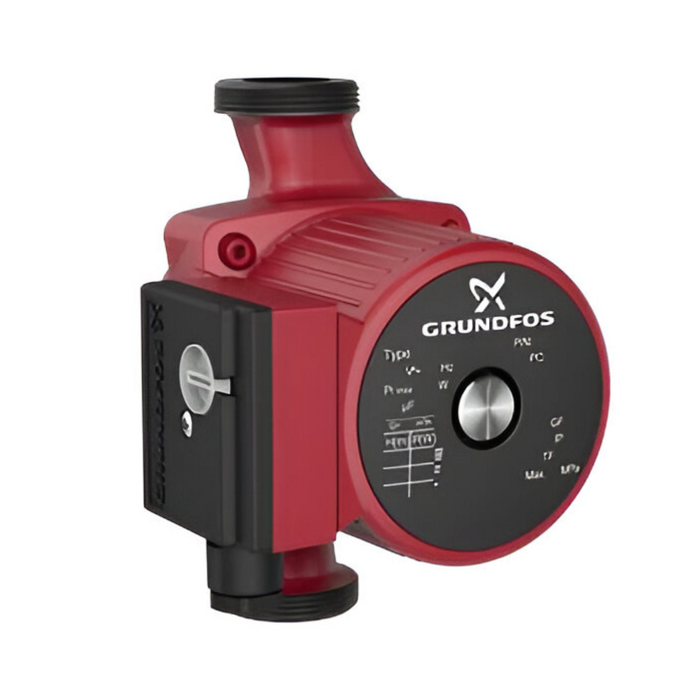

Grundfos UPS 25-80 180 Circulator Pump – 1½" Connection – 95906429
by Grundfos
SKU 95906429
Original price
$771.40
-
Original price
$771.40
Original price
$771.40
$771.40
-
$771.40
Current price
$771.40
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos UPS 25-80 180 is a three-speed circulator pump designed for commercial and domestic heating systems, including hot water re-circulation and mixing loops in large systems. Its canned-rotor design ensures maintenance-free operation with bearings lubricated by the pumped liquid. The pump features a durable cast-iron and composite construction, compact design, and does not require additional motor protection.
Key Features:
- Three-speed pump selector for flexible system operation
- Canned-rotor type – pump and motor form an integral unit
- Ceramic shaft and radial bearings with carbon axial bearing
- Stainless steel rotor can and bearing plate
- Corrosion-resistant composite impeller (PES+30% GF)
- Cast iron pump housing (EN-GJL-150)
- No additional motor protection required
- Terminal box positioned at 9H
Key Specifications:
| Product Model | UPS 25-80 180 |
| Product Number | 95906429 |
| Pump Type | Three-speed circulator |
| Connection Size | 1½ inch |
| Port-to-Port Length | 180 mm |
| Rated Flow | 4.8 m³/h |
| Rated Head | 4.676 m |
| Maximum Head | 80 dm |
| TF Class | 110 |
| Pumped Liquid | Water |
| Liquid Temperature Range | -25 – 110 °C |
| Selected Liquid Temperature | 60 °C |
| Density | 983.2 kg/m³ |
| Maximum Operating Pressure | 10 bar |
| Ambient Temperature Range | 0 – 40 °C |
| Power Input (Speed 1) | 114 W |
| Power Input (Speed 2) | 159 W |
| Maximum Power Input | 160 W |
| Current (Speed 1) | 0.5 A |
| Current (Speed 2) | 0.7 A |
| Current (Speed 3) | 0.7 A |
| Capacitor Size | 3.5 µF |
| Enclosure Class | X2D |
| Insulation Class | F |
| Ex-Protection Standard | CONTACT |
| Pump Housing | Cast iron, EN 1561 EN-GJL-150, ASTM 30B |
| Impeller | Composite, PES+30% GF |
| Terminal Box Position | 9H |
| Net Weight | 4.36 kg |
| Gross Weight | 4.64 kg |
| Shipping Volume | 0.008 m³ |
| Approvals | EAC, RCM |
| Country of Origin | DK |
