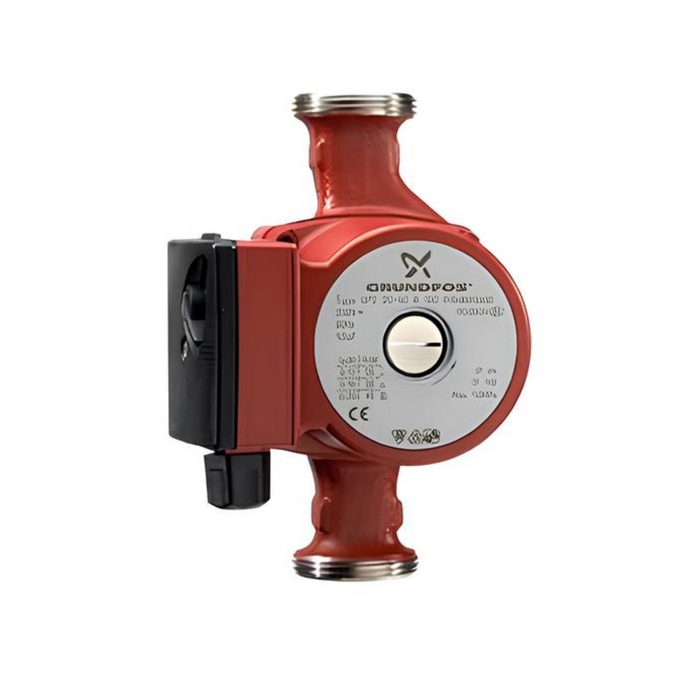

Grundfos UPS 25-60 N 180 Circulator Pump – Stainless Steel – 1½" Connection – 96913085
by Grundfos
SKU 96913085
Original price
$615.00
-
Original price
$615.00
Original price
$615.00
$615.00
-
$615.00
Current price
$615.00
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos UPS 25-60 N 180 is a high-efficiency stainless-steel circulator pump designed for domestic heating, hot-water recirculation, and underfloor heating systems. Its canned-rotor design ensures maintenance-free operation, with bearings lubricated by the pumped liquid. The pump can also be connected to an on/off time switch for energy-efficient operation during peak hot-water periods.
Key Features:
- Canned rotor type: integral pump and motor without shaft seal, with only two gaskets for sealing
- Maintenance-free operation with bearings lubricated by the pumped liquid
- Three-step speed selector for optimal system performance
- Stainless-steel pump housing (EN 1.4308) for corrosion resistance
- Composite corrosion-resistant impeller (PES+30% GF)
- Stainless steel rotor can, shaft, and bearing plate
- 1-phase motor, no additional motor protection required
- Terminal box position: 9H
Key Specifications:
| Product Model | UPS 25-60 N 180 |
| Product Number | 96913085 |
| Connection Size | 1½ inch |
| Port-to-Port Length | 180 mm |
| Rated Flow | 1.91 m³/h |
| Rated Head | 3.1 m |
| Maximum Head | 60 dm |
| TF Class | 110 |
| Pumped Liquid | Water |
| Liquid Temperature Range | 2 – 110 °C |
| Selected Liquid Temperature | 60 °C |
| Density | 983.2 kg/m³ |
| Maximum Operating Pressure | 10 bar |
| Ambient Temperature Range | 0 – 40 °C |
| Power Input | Speed 1: 50 W, Speed 2: 55 W, Max: 60 W |
| Mains Frequency | 50 Hz |
| Rated Voltage | 1 x 230 V |
| Current | Speed 1: 0.21 A, Speed 2: 0.25 A, Speed 3: 0.28 A |
| Capacitor Size | 2.5 µF |
| Enclosure Class | IP44 |
| Insulation Class | F |
| Thermal Protection | Impedance protected |
| Approvals | CE, VDE, EAC, WEEE, RCM |
| Net Weight | 2.86 kg |
| Gross Weight | 2.97 kg |
| Shipping Volume | 0.004 m³ |
| Country of Origin | RS |
| Danish VVS No. | 380481061 |
| Swedish RSK No. | 5803097 |
| Finnish LVI No. | 4615616 |
| Materials – Pump Housing | Stainless Steel, EN 1.4308 |
| Materials – Impeller | Composite, PES+30% GF |
Docs / Download
| DUAL HOT WATER CIRCULATORS (Product brochure) |
