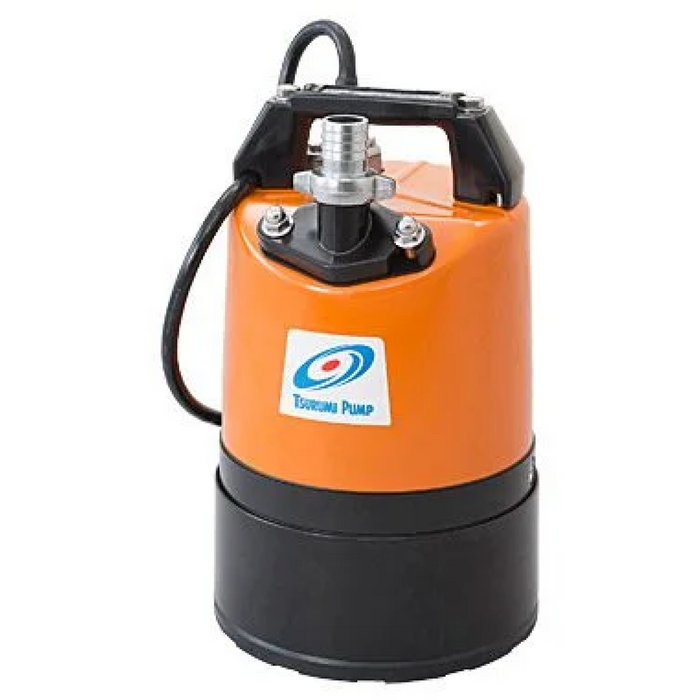

Tsurumi LSC Series Ultra Low-Level Drainage Pump – LSC1.4S
📢 For orders over $100, FREE Shipping Australia-wide
Warranty: Manufacturer’s Warranty

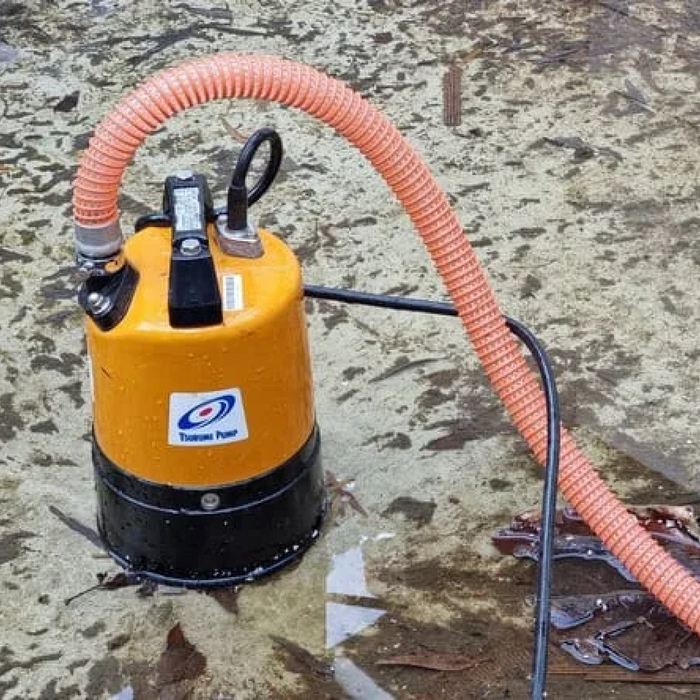

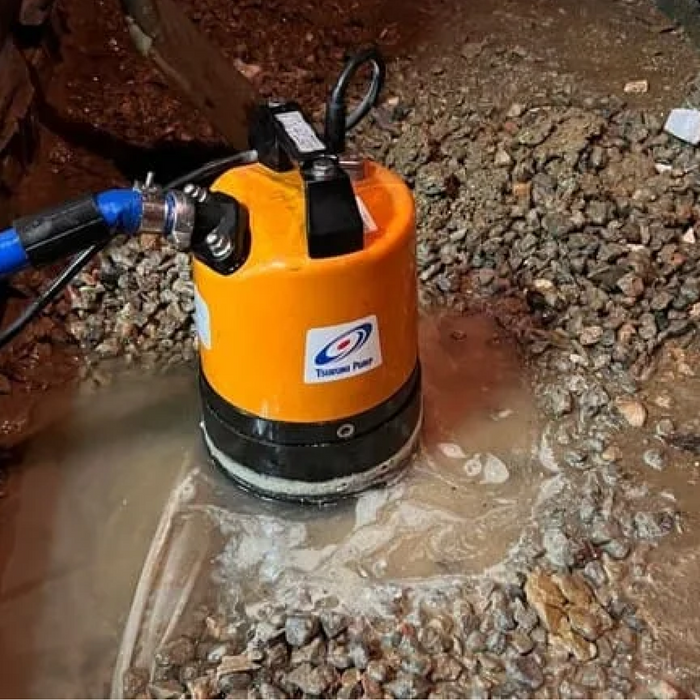

The Tsurumi LSC1.4S is a single-phase submersible portable residue drainage pump designed for ultra low-level water removal down to approximately 1mm, leaving surfaces almost completely dry. Its specially designed bottom plate and swing check valve prevent reverse-flow, while the multi-directional hose coupling allows vertical or inclined discharge to prevent hose folding. The pump features dual inside mechanical seals with silicon carbide faces, an Oil Lifter, an anti-wicking cable entry, and an automatic thermal cut‑off protector for motor safety. This Australian version is rated for 50Hz operation (240V supply) and is well‑suited for construction, maintenance, and emergency drainage across Australia and other 50Hz regions.
Suitable Applications
- Construction site floor drainage
- Rooftop water removal
- Basement and pit drainage
- Emergency flood water removal
- Maintenance and cleaning operations
- Removal of residual water from concrete surfaces
Key Specifications
| Product Name | LSC1.4S |
| Pump Type | Submersible ultra low‑level residue drainage pump |
| Discharge Bore | 25 mm (multi‑directional hose coupling) |
| Motor Output | 0.48 kW |
| Phase | Single‑phase |
| Starting Method | Capacitor Run |
| Speed | 3000 min⁻¹ (at 50Hz) |
| Maximum Head | 11 m |
| Maximum Flow | 2.83 L/sec (0.17 m³/min) |
| Minimum Water Level | 1 mm |
| Shaft Seal | Dual inside mechanical seals with silicon carbide face and Oil Lifter |
| Liquid Temperature Range | 0 to 40°C |
| Connections | 25 mm discharge (multi‑directional hose coupling) |
| Impeller Material | Not specified (refer to Tsurumi) |
| Casing Material | Synthetic rubber (see note) |
| Bearing | Permanently lubricated, deep‑groove, double‑shielded C3 ball bearings |
| Supply Voltage (Australia) | 240V (50Hz) |
| Rated Current | Not specified in provided documentation (refer to Tsurumi) |
| Enclosure Class | IP68 |
| Insulation Class | E |
| Motor Protection | Automatic thermal cut‑off protector (MTP type for 0.48kW) |
| Lubricating Oil | Not specified (refer to Tsurumi) |
| Shaft Material | Not specified (refer to Tsurumi) |
| Cable | H07RN‑F, 10m, with plug (Australian plug type not specified) |
| Automatic Control | None (manual operation) |
| Stand Material | Rubber stand (prevents floor scratching) |
| Dry Weight (excluding cable) | 12 kg |
Documentation & Downloads
| Single‑phase Portable Pumps Catalogue (LB/HS/HSD/LSC/LSP Series) | Download |
