Signal SD-ULS10 Ultrasonic Level Sensor for SDS Two-Wire Irrigation Controllers
📢 For orders over $100, FREE Shipping Australia-wide
The Signal SD-ULS10 Ultrasonic Level Sensor is a non-contact fluid level monitoring device designed for integration with Signal SDS Series Two-Wire Irrigation Controllers. Mounted above the fluid surface, the SD-ULS10 uses ultrasonic technology to measure water or liquid levels in tanks, reservoirs, sumps, and similar storage systems without direct contact with the liquid. When connected through a compatible Signal DataNode, level information can be transmitted to the SDS controller and SignalCloud™ for live monitoring, automation, alarms, and pump protection. The sensor is well suited to irrigation, rainwater harvesting, bore water, and fertigation applications where reliable high- and low-level control is required.
Suitable Applications
- Irrigation tank and reservoir level monitoring
- Sump water level monitoring
- Pump dry-run protection
- Automatic pump start and stop control
- Low-level irrigation shutdown
- High-level tank and overflow alerts
- Rainwater harvesting systems
- Bore water storage tanks
- Fertigation and chemical solution reservoirs
- Agricultural water storage systems
- Commercial landscape irrigation systems
- Remote tank monitoring through compatible SignalCloud™ systems
Key Specifications
| Product Name | Signal SD-ULS10 Ultrasonic Level Sensor |
| Model | SD-ULS10 |
| Product Type | Non-Contact Ultrasonic Fluid Level Sensor |
| Measurement Technology | Ultrasonic |
| Measurement Method | Non-Contact Level Detection from Above the Fluid Surface |
| Typical Fluids | Water and Compatible Irrigation Fluids |
| Output Type | Analog 4–20 mA or Digital Switch Output, Depending on Sensor Configuration |
| SDS Integration | Via Compatible Signal DataNode |
| Compatible DataNode Types | Analog or Switch-Type DataNode Depending on Sensor Configuration |
| Compatible Controllers | Signal SDS-50, SDS-75, and SDS-100 via Compatible DataNode Input |
| Power Supply | 12–24 VDC via Compatible SDS Controller/DataNode Configuration |
| Mounting | Top-Mount Above Fluid Surface |
| Controller Feedback | Real-Time Level Monitoring through Compatible SDS System |
| Cloud Monitoring | Compatible with SignalCloud™ when Integrated through Supported SDS Hardware |
| Automation Functions | Level-Based Start/Stop, Pump Cut-Off, Irrigation Hold, and Alarm Logic |
| Enclosure | Weather-Resistant Field Housing |

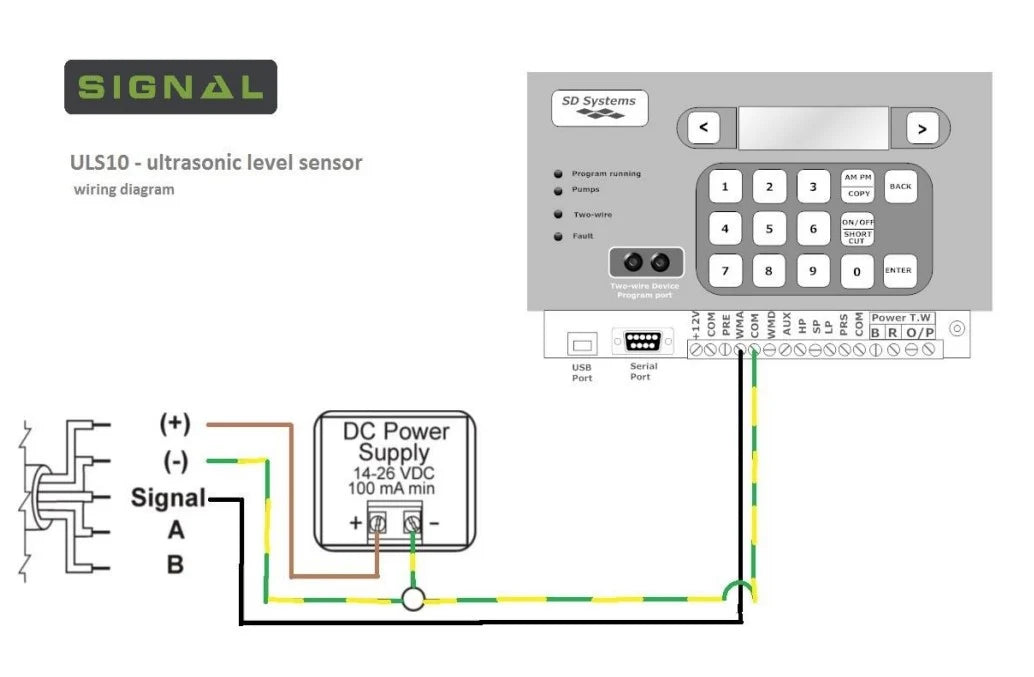

| Installation Documentation | Sensor Wiring Guide Supplied |
Features
- Uses ultrasonic technology to measure fluid level without direct contact with the liquid
- Suitable for tanks, reservoirs, sumps, and irrigation water storage systems
- Integrates with compatible SDS controllers through a Signal DataNode
- Provides real-time level information for monitoring and automated controller logic
- Supports analog 4–20 mA or digital switch configurations depending on the selected sensor setup
- Can be used to trigger irrigation start or stop sequences based on tank level
- Can pause irrigation automatically during low-level conditions
- Supports pump cut-off logic to help prevent dry-running
- Can generate high-level alarms to help reduce tank overflow risk
- Compatible with SignalCloud™ for supported remote monitoring configurations
- Top-mounted design keeps the sensor out of direct contact with stored liquid
- Weather-resistant enclosure is suitable for outdoor and agricultural environments
- Supplied wiring information helps simplify installation and commissioning
Documentation & Downloads
| Signal SD-ULS10 Ultrasonic Level Sensor Datasheet | Download |
