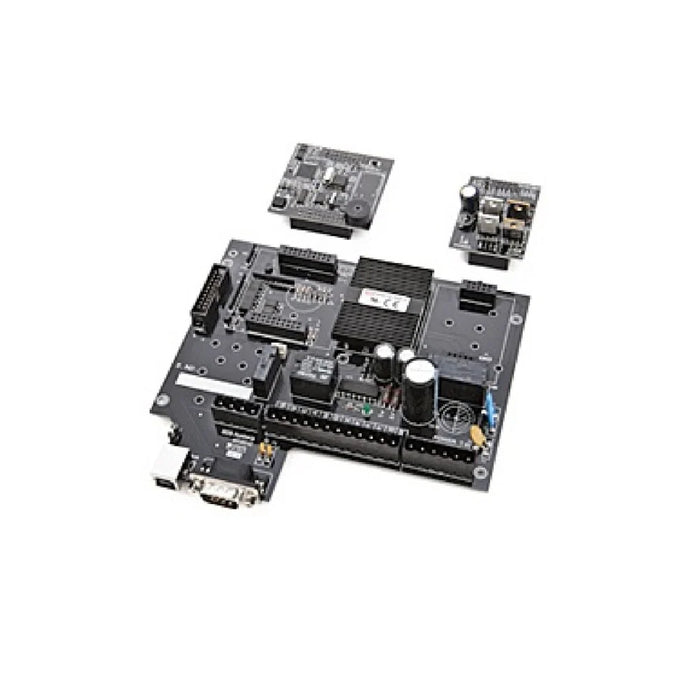

Signal SD-LB Plug-In Controller Logic Boards for SDS Series Two-Wire Irrigation Controllers
by Signal
SKU SD-75-LB
Original price
$1,011.28
-
Original price
$1,498.66
Original price
$1,011.28
$1,011.28
-
$1,498.66
Current price
$1,011.28
📢 For orders over $100, FREE Shipping Australia-wide
The Signal SD-LB Plug-In Controller Logic Boards are genuine replacement modules designed for Signal SDS Series Two-Wire Irrigation Controllers. Acting as the logic and communication core of the controller, these boards manage irrigation program execution, two-wire communications, SignalCloud™ connectivity, SDS-LINK app functions, and overall controller operation. The modular plug-in design allows faulty logic boards to be identified and replaced quickly in the field without returning the complete controller for servicing, helping reduce downtime and maintenance costs across commercial, landscape, and agricultural irrigation systems.
Suitable Applications
- Replacement of faulty or damaged SDS controller logic boards
- On-site repairs of Signal SDS Series irrigation controllers
- Commercial landscape irrigation systems
- Agricultural and farm irrigation systems
- Two-wire irrigation controller maintenance
- Preventative maintenance spare-part inventories
- Contractor and irrigation service vehicles
- Critical irrigation sites requiring rapid controller restoration
- SDS-50, SDS-75, and SDS-100 controller servicing
Key Specifications
| Product Name | Signal SD-LB Plug-In Controller Logic Boards |
| Product Type | Replacement Controller Logic and Communication Board |
| Controller Series | Signal SDS Series Two-Wire Irrigation Controllers |
| Compatible Controllers | SDS-50, SDS-75, and SDS-100 |
| Installation Type | Modular Plug-In Replacement |
| Primary Function | Controller Logic, Program Execution, Two-Wire Communication, and System Management |
| Diagnostics | Integrated LED Status Indicators for Fault Identification |
| Cloud Compatibility | Maintains Compatible SignalCloud™ Functions when Installed in the Correct SDS Controller |
| Mobile App Compatibility | Maintains SDS-LINK App Compatibility |
| Controller Housing Compatibility | Designed for Original Corresponding SDS Controller Housing |
| Power System Compatibility | Compatible with Original SDS Controller Power Architecture |
| Service Method | Field-Replaceable Module without Replacing the Complete Controller |
Available Models
| SD-50-LB | Replacement Logic Board for Signal SDS-50 48-Station Two-Wire Irrigation Controller |
| SD-75-LB | Replacement Logic Board for Signal SDS-75 72-Station Two-Wire Irrigation Controller |
| SD-100-LB | Replacement Logic Board for Signal SDS-100 96-Station Two-Wire Irrigation Controller |
Features
- Genuine replacement logic boards designed specifically for Signal SDS Series controllers
- Available for SDS-50, SDS-75, and SDS-100 controller models
- Modular plug-in architecture allows rapid replacement of faulty controller electronics
- Controls irrigation program execution and core controller operating functions
- Manages communication between the controller and compatible devices on the SDS two-wire network
- Maintains compatible SignalCloud™ remote management capability after correct installation
- Maintains compatible SDS-LINK mobile app functionality
- Integrated LED status indicators assist with identifying board or controller faults
- Designed to work with the original SDS motherboard, output module, keypad, housing, and power system
- Allows individual controller components to be serviced without replacing the entire irrigation controller
- Suitable for contractor field servicing and preventative maintenance inventories
- Built for continued use in commercial, landscape, and agricultural irrigation applications
Benefits
- Reduced Controller Downtime: A faulty logic board can be replaced individually, allowing the irrigation controller to be returned to service without replacing or transporting the complete unit.
- Lower Repair Costs: Modular servicing allows the affected electronic component to be replaced rather than purchasing an entirely new controller.
- Fast Field Diagnosis: Integrated LED status indicators help technicians identify controller faults and determine which module requires attention.
- Simple On-Site Servicing: Plug-in board construction allows maintenance to be completed quickly using the controller’s existing modular architecture.
- Maintains System Functionality: Correct replacement boards restore the controller’s programming, two-wire communication, cloud connectivity, and mobile management capabilities.
- Ideal as a Critical Spare: Keeping the correct logic board on hand can significantly reduce downtime at commercial, agricultural, or other irrigation sites where continuous controller availability is important.
