HydroSTART PRO Submersible Pump Controller (3PH 2 Pump) - FPP-82243

MATelec Australia’s HydroSTART PRO Controller is the flagship dual pump controller in the Australian Market. Designed for the professional, this controller features the highest quality enclosure, premium Schneider switchgear, intuitive capacitive touch keypad and Matelec Australia’s Market Leading HydroSTART Pro Control module.

The unit comes complete with pump current sensing and a wide range of electronic overload protection for both single and three phase pumps. A full suite of control inputs and functionality has been incorporated into the design to enhance the controller’s flexibility and cover an even wider range of pumping applications.

Product Details

Enclosure Options

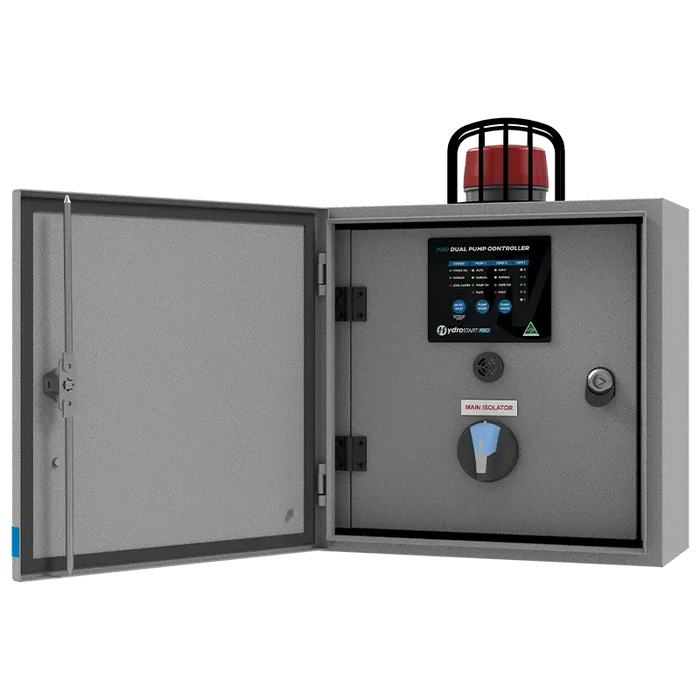

• Grey powder coated galvanised mild steel IP66 with inner door

• Enclosure size: 400x400x200mm
• Enclosure size will increase for optional additions.

Protection

• Inner door mounted main isolator with door interlock
• Premium Schneider Circuit Breakers for individual pump protection/isolation
• Low voltage control and input circuitry
• Premium Schneider Contactors for pump switching (three phase panels)
• Electronic short and overload protection of alarms
• Din rail mounted terminal connections

Control & Interface

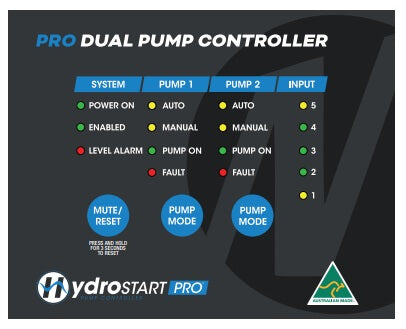

• HydroSTART dual pump capacitive touch keypad interface
• Indicator lights for system, pump and input status, level alarm
• Buttons for alarm mute/reset and pump mode selection

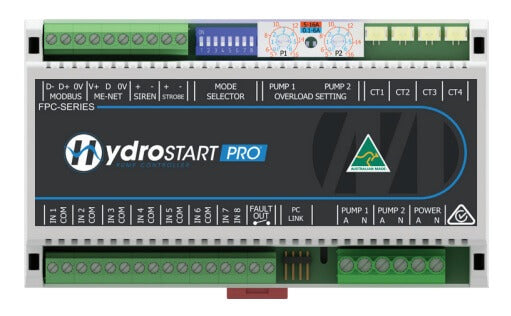

• HydroSTART PCB control module with dip-switches for adjusting configuration
• Visual (strobe) and audible (buzzer) alarms
• Pump current sensing providing adjustable overload & other protections

Inputs

• three phase (400Vac) power supply
• 6x digital inputs for float or pressure switches, optional prime loss flow switch and system enable
• Standard terminal setup: Low level, duty stop, duty start, standby start, high level and system enable

Outputs

• 2x pump supply outputs
• BMS volt free output for common fault
• Modbus RTU Serial RS485 connections for SCADA

Functions

• Level control mode – Level empty operation controlled by up to 5 float switches
• Pressure control mode – Pressure boost operation controlled by up to 3 pressure switches
• Duty sharing and alternation – Alternates on pump start and after set run times
• Staggered pump start – Prevents excessive current draw and reduces water surge
• Manual pump control – Manual mode with optional timeout
• System enable input – Enables/disables system in auto mode
• Static duty mode – No duty alternation
• Smart chirp mode alarms – Audible alarm silences after 5 minutes, chirps every 5 minutes

Fault Protection

• High level alarm – Delayed alarm with auto/manual reset depending on mode
• Low level protection – Shuts down pumps, manual reset only
• Low pressure protection – Shuts down pumps if input closed for 60 seconds
• Prime loss protection – Shuts down pumps if no flow for 30 seconds
• Pump anti-seize protection – Runs pumps periodically during low use
• Pump current sensing – Adjustable overload, undercurrent and zero current protection
