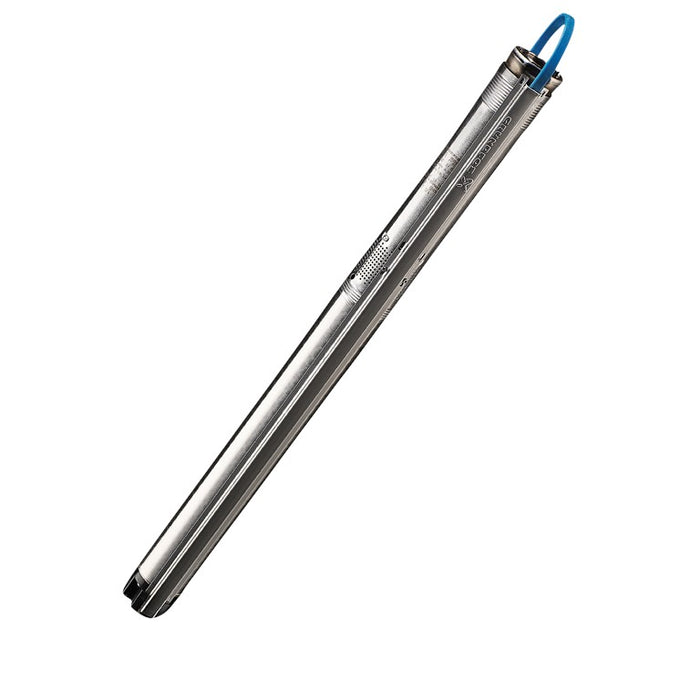

Grundfos SQ 3-30 N Submersible Pump – 96160419
by Grundfos
SKU 96160419
Original price
$986.15
-
Original price
$986.15
Original price
$986.15
$986.15
-
$986.15
Current price
$986.15
📢 For orders over $100, FREE Shipping Australia-wide
3" multi-stage, submersible pump designed for domestic water supply, liquid transfer in tanks, irrigation and environmental applications. The pump has "floating" impellers, each with its own tungsten carbide/ceramic bearing.
The pump features soft starting and protection against dry-running, upthrust, overvoltage, undervoltage, overload and overtemperature.
The motor is a single-phase motor of the permanent magnet rotor type ensuring optimum efficiency within a wide load range. The motor is fitted with a replaceable end cover with socket.
Suitable for:
- Domestic ground water intake
- Domestic water pressure boosting
- Ground water intake
- Submersible pumps
Product Details
| Product name | SQ 3-30 N |
| Product No | 96160419 |
| EAN | 5700398875154 |
| Pump No | 96080721 |
| Motor No | 96160858 |
| Model | C |
| Valve | Built-in non-return valve |
| Sales region | Australia |
Performance
| Rated flow | 3 m³/h |
| Rated head | 26 m |
| Stages | 2 |
| Pump speed | 10700 rpm |
| Curve tolerance | ISO9906:2012 3B |
Liquid
| Pumped liquid | Water |
| Liquid temperature range | 0 – 35 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
Materials
| Pump | Stainless steel (EN 1.4401 / AISI 316) |
| Impeller | Composite (ZYTEL 70G30 HSLR PA6.6-GF30) |
| Motor | Stainless steel (DIN W.-Nr. 1.4401 / AISI 316) |

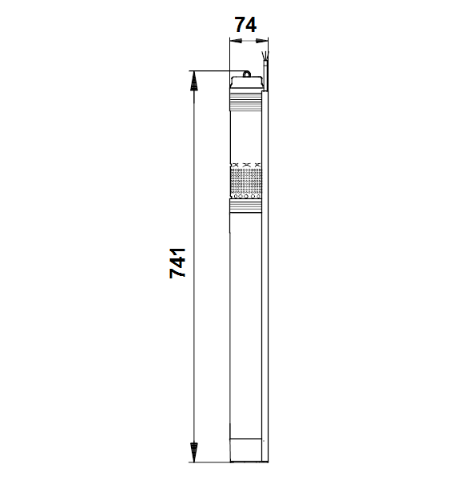

Installation
| Maximum operating pressure | 15 bar |
| Pump outlet | RP 1 1/4 |
| Minimum borehole diameter | 76 mm |
Electrical Data
| Motor type | MS3 N |
| Power input (P1) | 1 kW |
| Rated power (P2) | 0.7 kW |
| Pump required power (P2) | 0.46 kW |
| Mains frequency | 50 Hz |
| Rated voltage | 1 × 200–240 V |
| Rated current | 5.3 A |
| Power factor | 1.00 |
| Rated speed | 10700 rpm |
| Start method | Direct-on-line |
| Enclosure class | IP68 |
| Insulation class | F |
| Built-in motor protection | Yes |
| Thermal protection | Internal |
| Cable length | 1.5 m |
| Controls | CU 300 / CU 301 (no communication) |
Approvals
| Certifications | CE, PCBC, RCM, EAC, CN RoHS Exempt, Morocco, UKCA, SEPRO |
Weight & Shipping
| Net weight | 4.8 kg |
| Gross weight | 5.4 kg |
| Shipping volume | 0.0092 m³ |
