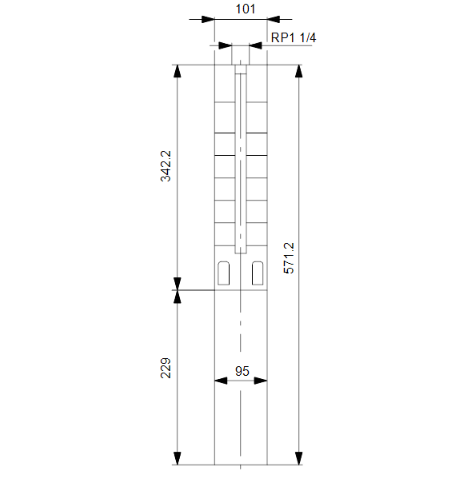

Grundfos SP 1A-9 Submersible Borehole Pump – 08001K09 (3 x 415V, MS402 Motor)
by Grundfos
SKU 08001k09
Original price
$1,327.97
-
Original price
$1,327.97
Original price
$1,327.97
$1,327.97
-
$1,327.97
Current price
$1,327.97
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos SP 1A-9 (08001K09) is a stainless-steel submersible borehole pump designed for pumping clean water in domestic, agricultural, and community water systems. All steel components are made from EN 1.4301 (AISI 304), ensuring high corrosion resistance. Approved for drinking water (ACS, DM174), this pump is fitted with a 0.37 kW MS402 motor with sand shield, lip seal, water-lubricated journal bearings, and a volume compensating diaphragm. It is a canned submersible motor with high mechanical stability and efficiency, suitable for water temperatures up to 40 °C. The pump supports direct-on-line (DOL) starting and can be installed vertically or horizontally.
Applications & Features
- Domestic groundwater intake and pressure boosting
- Irrigation systems: rotor, spray, pivot, and lateral
- Community and municipal water supply
- Livestock and wildlife watering
- Groundwater transfer and frost protection
- Water treatment, fertigation, chemigation & dosing
- Solar boosting and solar-powered water solutions
- Drinking water approved (ACS, DM174)
Key Specifications:
| Product No. | 08001K09 |
| Pump Type | Submersible Borehole Pump |
| Rated Flow | 1 m³/h |
| Rated Head | 35 m |
| Stages | 9 |
| Motor Type | MS402 |
| Rated Power (P2) | 0.37 kW |
| Voltage | 3 x 380-400-415 V, 50 Hz |
| Rated Current | 1.30-1.50 A |
| Starting Current | 380-400 % |
| Cos φ – Power Factor | 0.60-0.70 |
| Motor Diameter | 4 inch |
| Connection Size | Rp 1 1/4 inch |
| Maximum Outlet Pressure | 5.4 bar |
| Material | Stainless Steel (EN 1.4301 / AISI 304) |
| Ingress Protection | IP68 |
| Net Weight | 10.9 kg |
Documentation & Downloads:
| Document | Download |
|---|---|
| Flow Sleeves (Quick Guide) | 📄 Download PDF |
| SP – Installation & Operating Instructions | 📄 Download PDF |
| SP A & SP Pumps – Data Booklet | 📄 Download PDF |
| SP Accessories – Data Booklet | 📄 Download PDF |
