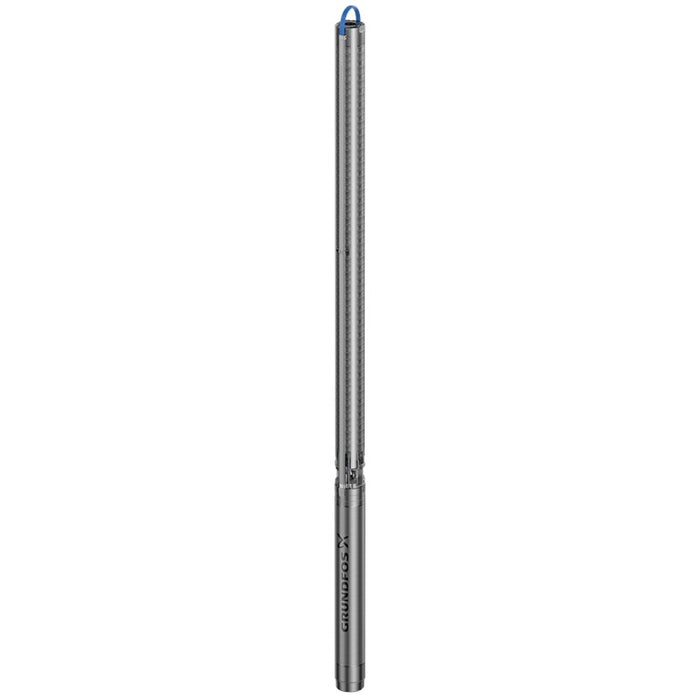

Grundfos SP 3A-29 Submersible Borehole Pump – 96652648 (3 x 415V, MS4000 Motor)
📢 For orders over $100, FREE Shipping Australia-wide
Grundfos SP 3A-29 is a stainless-steel submersible borehole pump designed for pumping clean water from deep wells and boreholes. It can be installed vertically or horizontally, and all wetted parts are made from EN 1.4301 (AISI 304) stainless steel for superior corrosion resistance. The pump carries drinking water approvals (ACS, DM174) and is ideal for domestic, agricultural, and community water supply systems. This model is fitted with a robust 2.2 kW MS4000 motor featuring high efficiency, water-lubricated bearings, and external thermal protection. Suitable for liquid temperatures up to 40 °C. Built-in temperature transmitter included.
Suitable for:
- Domestic ground water intake
- Domestic water pressure boosting
- Ground water intake
- Irrigation
- Community water supply
- Rotor & spray irrigation
- Ground water transfer
- Livestock & Wildlife Watering
- Water Treatment Fertigation, Chemigation & Dosing
- Pivot & Lateral Irrigation
- Frost protection
- Solar boosting and water supply solutions
- Controls & Digital Groundwater Management
- Solar Controls & Digital Water Management
- Solar Water Treatment Fertigation & Dosing
- Municipal solar solutions
- Agriculture solar solutions
- Livestock watering with solar solutions
- Community solar solutions
Key Specifications:
| Product name | SP 3A-29 |
| Product No. | 96652648 |
| EAN number | 5700836831087 |
| Rated flow | 3 m³/h |
| Rated head | 129 m |
| Stages | 29 |
| Motor type | MS4000 |
| Rated power (P2) | 2.2 kW |
| Rated voltage | 3 × 380-400-415 V |
| Rated current | 6-6-6.3 A |
| Starting current | 420-440-450 % |
| Power factor (cos φ) | 0.8-0.74-0.69 |
| Rated speed | 2850-2860-2880 rpm |
| Start method | Direct-on-line (DOL) |
| Enclosure / Insulation class | IP68 / Class F |
| Approvals | CE, EAC, UKCA, SEPRO, MOROCCO |
| Drinking water approvals | ACS, DM174 |
| Curve tolerance | ISO 9906:2012 3B |
| Return valve | Yes |
| Materials | Stainless steel EN 1.4301 / AISI 304 |
| Liquid temperature range | -15 .. 40 °C |
| Max operating pressure | 60 bar |
| Connection size | Rp 1 1/4 inch |
| Motor diameter | 4 inch |
| Minimum borehole diameter | 105 mm |
| Net weight | 24.6 kg |
| Cable length / Type | 1.7 m / FLAT |
