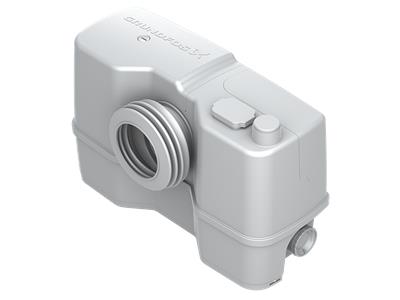

Grundfos SOLOLIFT2 WC-3: LIFTING STATION SMALL FOR BASE STAND TOILET – 97775325
by Grundfos
SKU 97775325
Original price
$1,366.75
-
Original price
$1,366.75
Original price
$1,366.75
$1,366.75
-
$1,366.75
Current price
$1,366.75
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos SOLOLIFT2 WC-3 is a compact, ready-to-install automatic lifting station designed for domestic wastewater containing faeces. It is ideal for installations where wastewater cannot be discharged by gravity, such as basements or remote sanitary locations. The unit is specifically designed for connection to a toilet and can also handle wastewater from washbasins, showers, and bidets. Featuring a VORTEX impeller with an integrated grinder, the SOLOLIFT2 WC-3 ensures reliable pumping of sewage containing toilet paper and solids while maintaining low switching levels for flexible installation in confined spaces.
Key Specifications:
| Product Model | SOLOLIFT2 WC-3 |
| Product Number | 97775325 |
| Application | Domestic wastewater with faeces |
| Rated Flow | 1.37 l/s |
| Maximum Flow | 2.48 l/s |
| Rated Head | 6.21 m |
| Maximum Head | 8.5 m |
| Pump Speed | 2800 rpm |
| Impeller Type | VORTEX with GRINDER |
| Max Particle Size | 25 mm |
| Liquid Temperature Range | 0 – 50 °C |
| Selected Liquid Temperature | 20 °C |
| Tank Volume | 9 l |
| Inlet Connection | Smooth pipe Ø32/36/40, 36/40/50, DN100 (1–4 inch) |
| Outlet Connection | Smooth pipe Ø22–40 mm (0.5–1.25 inch) |
| Pressure Rating | PN 1.5 |
| Power Input (P1) | 620 W |
| Rated Power (P2) | 0.42 kW |
| Rated Voltage | 1 × 220–240 V |
| Mains Frequency | 50 Hz |
| Rated Current | 3 A |
| Enclosure Class | IP44 |
| Insulation Class | F |
| Thermal Protection | THERMIK S06-150-05 |
| Power Cable | H05VV-F-3G, 1.2 m, AU plug |
| Net Weight | 7.3 kg |
| Gross Weight | 9.3 kg |
| Country of Origin | RS |
| Approvals | CE, CHROHS, MORO, RCM, WATERMARK |
| Standard | EN 12050-3 |
Documentation & Downloads:
| Document | Download |
|---|---|
| GRUNDFOS Pumps for Home and Garden – Product Brochure | 📄 Download PDF |
