Grundfos Hydro Multi-E 3 CRE 3-8 U2 A-A-I-I-DU Booster Set – 99614272

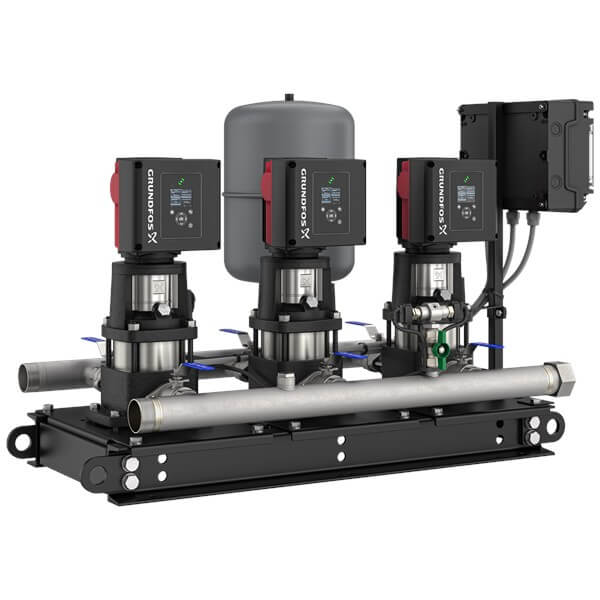

Grundfos Hydro Multi-E is an energy‑efficient pressure boosting system for clean water, consisting of 3 parallel‑connected, frequency‑controlled CRE 3‑8 multistage centrifugal pumps mounted on a black‑painted mild steel base frame. The unit delivers a maximum flow of 16.2 m³/h and a maximum head of 76 m. The inlet and outlet manifolds are made of AISI 316 stainless steel, connections are R2 internal thread per DIN ISO 7/1, and the system includes a diaphragm tank (24 l), isolating valves, non‑return valve, pressure gauges, and two pressure transmitters. Each pump is driven by an IE5 high‑efficiency PM motor (P2 = 0.75 kW, IP54, 3 x 380‑415 V, 50/60 Hz). The integrated PI controller maintains constant pressure regardless of flow variations and can be operated via the graphical display or Grundfos GO.

Suitable Applications

• Commercial water pressure boosting
• District heating
• District cooling
• Industrial water supply and transfer
• Water distribution
• Community water supply
• Rotor and spray irrigation
• Ground water transfer
• Livestock and wildlife watering
• Water treatment fertigation, chemigation and dosing
• Pivot and lateral irrigation
• Frost protection
• Solar boosting and water supply solutions
• Controls and digital groundwater management
• Solar controls and digital water management
• Solar water treatment fertigation and dosing
• Municipal solar solutions
• Agriculture solar solutions
• Livestock watering with solar solutions
• Community solar solutions

Key Specifications

Product Name	Hydro Multi-E 3 CRE 3-8 U2 A-A-I-I-DU
Product Number	99614272
EAN	5713831934554
Pump Type	Booster set with 3 parallel‑connected frequency‑controlled CRE multistage centrifugal pumps
Number of Pumps	3

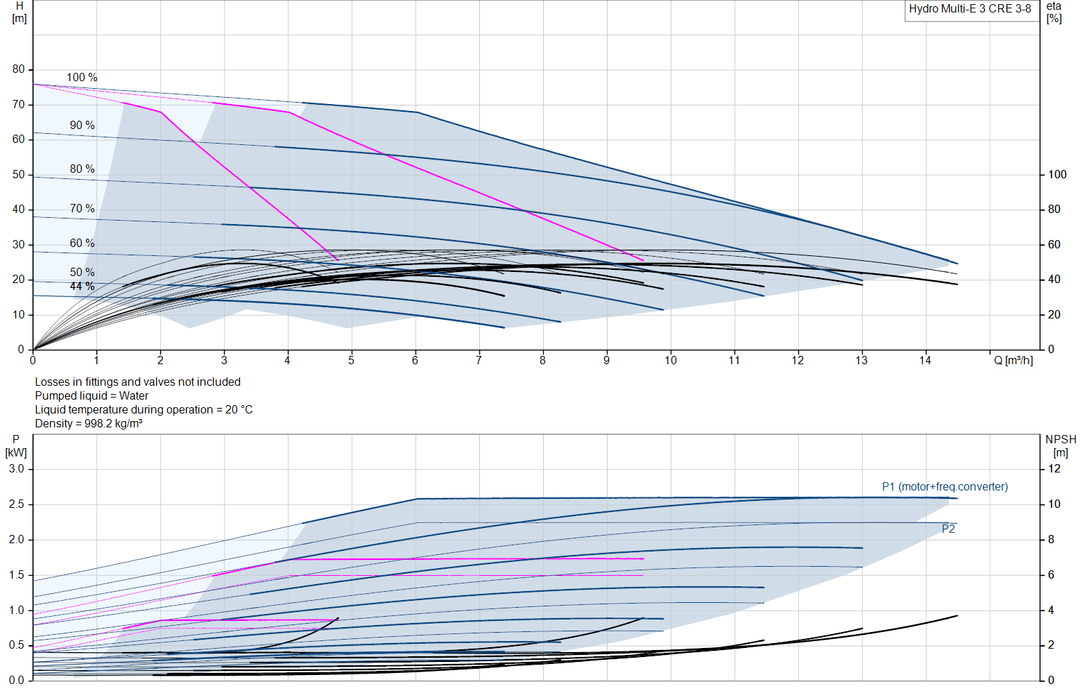

Rated Flow	16.2 m³/h
Rated Head	76 m
Liquid Temperature Range	5 .. 60 °C

Maximum Operating Pressure 10 bar Connections Manifold inlet/outlet: R2 internal thread, Flange standard: DIN ISO 7/1 Base / Head Material Pump housing: Cast iron; Manifolds: Stainless steel (AISI 316) Motor Power (P2) 0.75 kW Voltage 3 x 380-415 V Frequency 50 / 60 Hz Rated Current 5.55 A Motor Efficiency Class IE5 Enclosure Class IP54 Net / Gross Weight 140 kg / 169 kg Shipping Volume 1.01 m³ Tank Volume 24 l Diaphragm Tank Yes Earth Connection PE Pump Name CRE 3-8 Minimum Flow System 1.3 m³/h Maximum Ambient Temperature 40 °C Maximum Permissible Inlet Pressure PN 10 bar Flange Standard DIN ISO 7/1 Manifold Inlet / Outlet R 2 / R 2 Pumped Liquid Water Density 998.2 kg/m³ Start Method electronically Language MULTI Sales Region APAC
