Grundfos Hydro Multi-E 3 CRE 10-10 U2 A-A-I-I-DU Booster Set – 99657286
📢 For orders over $100, FREE Shipping Australia-wide

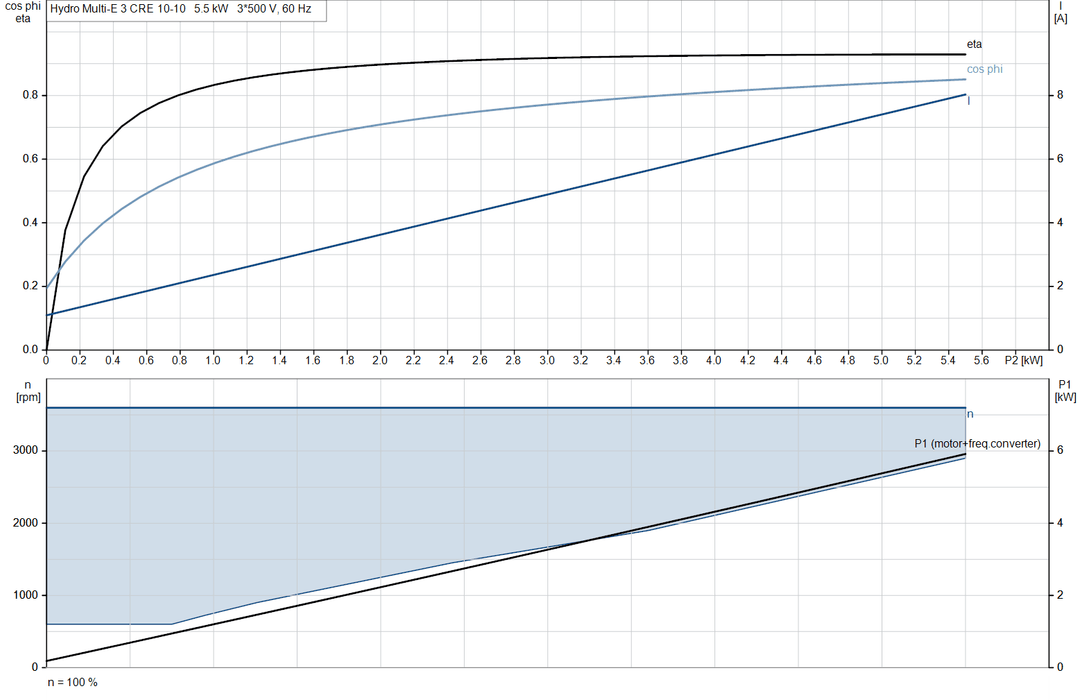

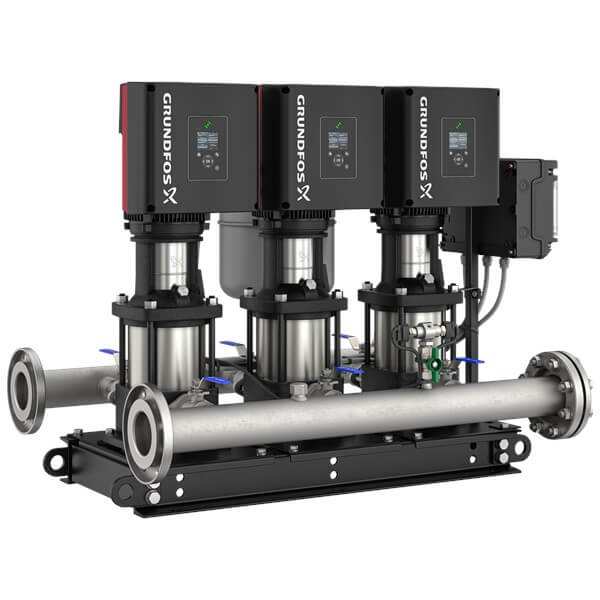

Grundfos Hydro Multi-E is an energy‑efficient pressure boosting system for clean water, consisting of 3 parallel‑connected, frequency‑controlled CRE 10‑10 multistage centrifugal pumps mounted on a black‑painted mild steel base frame. The unit delivers a maximum flow of 54.3 m³/h and a maximum head of 149 m. The inlet and outlet manifolds are made of AISI 316 stainless steel with DN 80 connections per DIN2642, and the system includes a diaphragm tank (24 l), isolating valves, non‑return valve, pressure gauges, and two pressure transmitters. Each pump is driven by an IE5 high‑efficiency PM motor (P2 = 5.5 kW, IP54, 3 x 381‑415 V, 60 Hz). The integrated PI controller maintains constant pressure regardless of flow variations and can be operated via the graphical display or Grundfos GO.
Suitable Applications
- Commercial water pressure boosting
- District heating
- District cooling
- Industrial water supply and transfer
- Water distribution
- Community water supply
- Rotor and spray irrigation
- Ground water transfer
- Livestock and wildlife watering
- Water treatment fertigation, chemigation and dosing
- Pivot and lateral irrigation
- Frost protection
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Municipal solar solutions
- Agriculture solar solutions
- Livestock watering with solar solutions
- Community solar solutions
Key Specifications
| Product Name | Hydro Multi-E 3 CRE 10-10 U2 A-A-I-I-DU |
| Product Number | 99657286 |
| EAN | 5713832545100 |
| Pump Type | Booster set with 3 parallel‑connected frequency‑controlled CRE multistage centrifugal pumps |
| Number of Pumps | 3 |

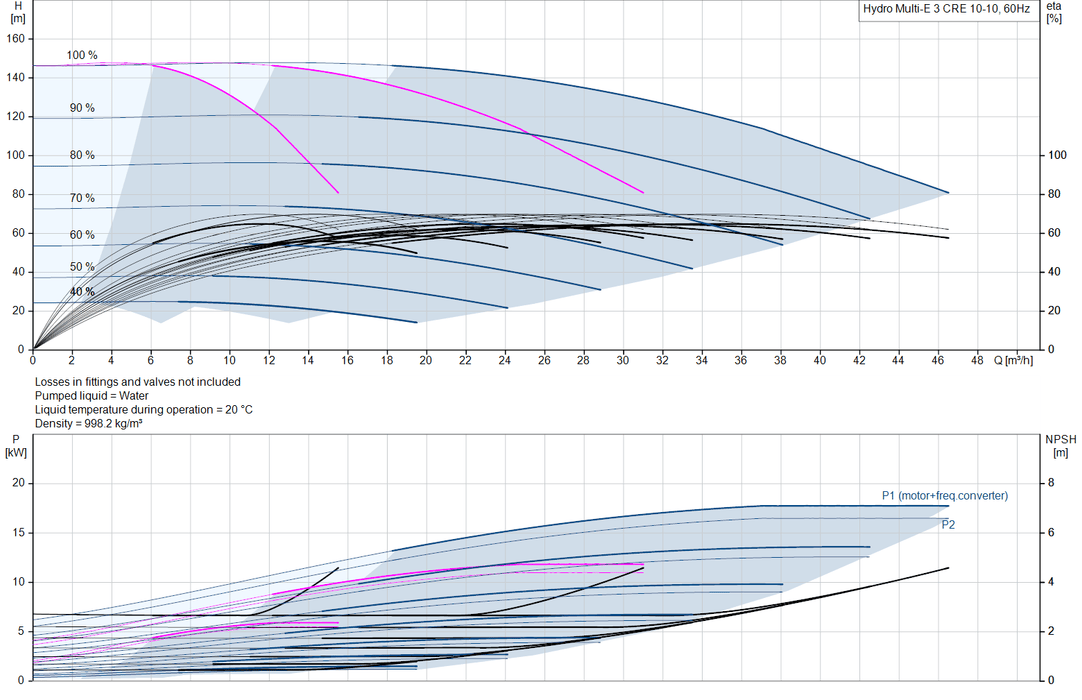

| Rated Flow | 54.3 m³/h |
| Rated Head | 149 m |
| Minimum Flow System | 4.8 m³/h |
| Liquid Temperature Range | 5 .. 60 °C |
| Maximum Operating Pressure | 16 bar |
| Maximum Permissible Inlet Pressure | PN 16 bar |

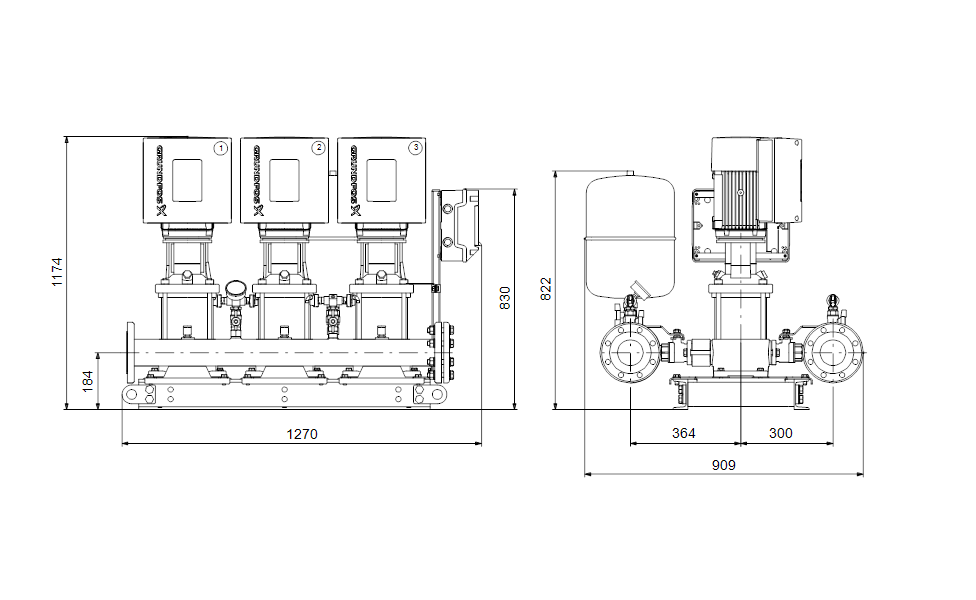

| Connections | Manifold inlet/outlet: DN 80, Flange standard: DIN2642 |
| Base / Head Material | Pump housing: Cast iron; Manifolds: Stainless steel (AISI 316) |
Documentation & Downloads
| HYDRO MULTI-E (>3.0 kW) (QUICK GUIDE) | Download |
| Hydro Multi-E, CR(I)E (<2.2 kW) (Quick Guide) | Download |
| Hydro Multi-E, CRIE APAC | Download |
| Hydro Multi-E CME | Download |
| Mounting of sensor for Hydro Booster (Quick Guide) | Download |
| HYDRO MULTI-E (Product brochure) | Download |
