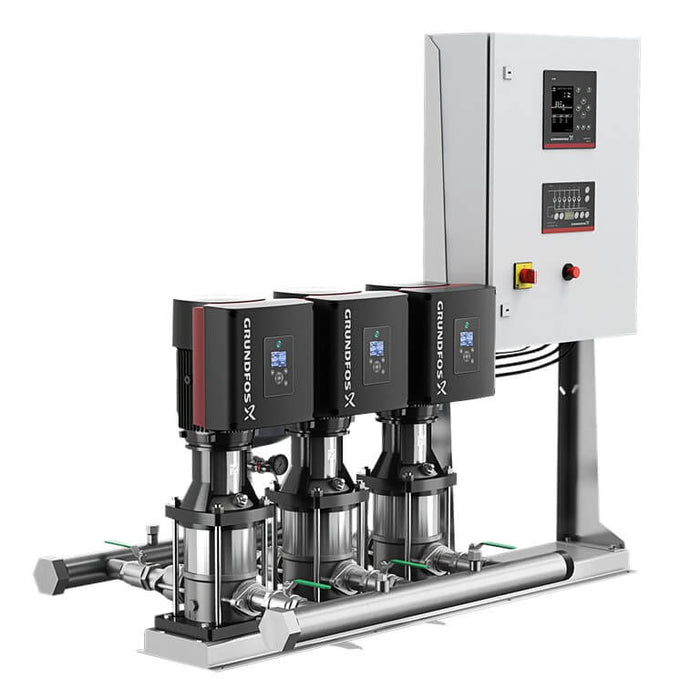

Grundfos Hydro MPC-E is a complete pressure boosting system with 3 parallel‑connected, frequency‑controlled CRIE 5‑16 multistage centrifugal pumps mounted on a common base frame. All wetted parts are made of stainless steel EN 1.4301 (CRI). The pumps are equipped with cartridge shaft seals and driven by Grundfos MGE IE5 premium‑efficiency motors (P2 = 4 kW, IP54, 3 x 380‑415 V, 50/60 Hz). The unit delivers a rated flow of 21 m³/h and a maximum flow of 30.6 m³/h with a rated head of 120 m and maximum head of 160 m. The inlet and outlet manifolds are made of stainless steel EN 1.4571/AISI 316 Ti with R2" internal thread (PN 16), and include non‑return valves, isolating valves, pressure gauge, pressure transmitter, and a diaphragm tank (18 l). The system is controlled by a Grundfos CU 352 pump controller (IP54) with constant‑pressure PID control, automatic cascade operation, pump changeover, and monitoring functions.
Suitable Applications
- Commercial heating
- Commercial water pressure boosting
- District heating
- District cooling
- Wash and clean
- Industrial heating
- Cooling
- Industrial water supply
- Desalination
- Drinking water treatment
- Water distribution
- Irrigation
- Community water supply
- Wastewater treatment
- Rotor & spray irrigation
- Ground water transfer
- Pivot
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
- Booster systems with frequency-controlled pumps
Key Specifications
| Product Name | Hydro MPC-E 3 CRIE 5-16 |
| Product Number | 99726091 |
| EAN | 5713833448554 |
| Pump Type | Booster system with 3 parallel‑connected frequency‑controlled CRIE multistage centrifugal pumps |
| Number of Pumps | 3 |
| Rated Flow | 21 m³/h |
| Max. Flow | 30.6 m³/h |
| Rated Head | 120 m |
| Max. Head | 160 m |
| Main Pump Name | CRIE 5-16 |
| Main Pump Product No | 99239254 |
| Liquid Temperature Range | 5 .. 60 °C |
| Maximum Operating Pressure | 16 bar |
| Pressure Rating | PN 16 |
| Connections | Manifold inlet/outlet: R 2" internal thread |
| Manifold Material | EN 1.4571 / AISI 316 Ti |
| Earth Connection | N, PE |
| System Design | A |
| Range of Ambient Temperature | 5 .. 40 °C |
| Motor Power (P2) | 4 kW |
| Voltage | 3 x 380-415 V |
| Frequency | 50 / 60 Hz |
| Rated Current of System | 24 A |
| Number of Phases (Main Pump) | 3 |
| Start Method | Variable frequency drives |
| Enclosure Class | IP54 |
| Radio Interference Suppression | EMC DIRECTIVE(2014/30/EU) |
| Control Type | E (CU 352) |
| Dry Running Protection, Mechanical | NONE |
| Tank Volume | 18 l |
| Diaphragm Tank | Yes |
| Net / Gross Weight | 224 kg / 528 kg |
| Sales Region | Australia |
| Config. file no. pump | 99058898 |
| Config. file no. Control MPC | 98271947 |
| Config. file no. Hydro MPC | 98272025 |
| Country of Origin | AU |
| Custom Tariff No. | 8413709062 |
