Grundfos Hydro MPC-E 2 CRNE 45-3 Booster Set – 99734655
📢 For orders over $100, FREE Shipping Australia-wide

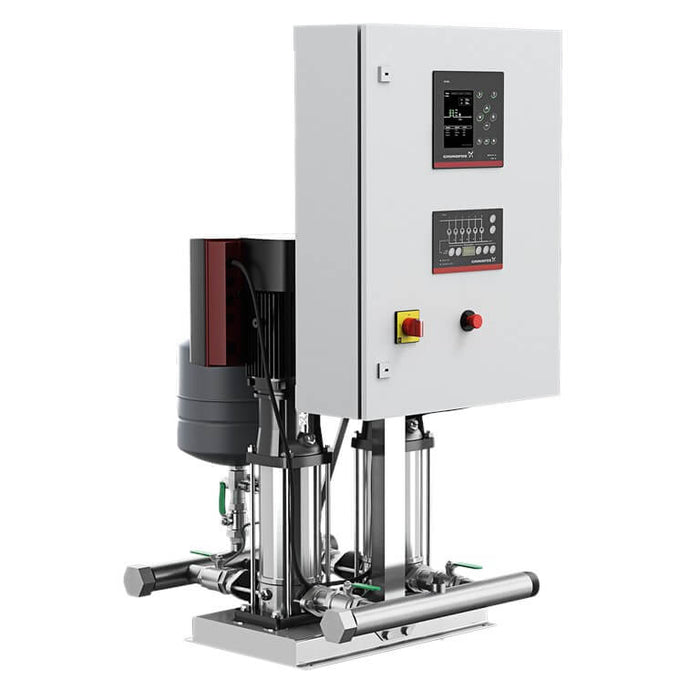

Grundfos Hydro MPC-E is a compact pressure boosting system with 2 parallel‑connected, frequency‑controlled CRNE 45‑3 multistage centrifugal pumps mounted on a common base frame. All wetted parts are made of stainless steel EN 1.4301 (CRNE). The pumps are equipped with cartridge shaft seals and driven by Grundfos MGE IE5 premium‑efficiency motors (P2 = 18.5 kW, IP54, 3 x 380‑415 V, 50/60 Hz). The unit delivers a rated flow of 108 m³/h and a maximum flow of 140 m³/h with a rated head of 86 m and maximum head of 110 m. The inlet and outlet manifolds are made of stainless steel EN 1.4571/AISI 316 Ti with DN150 connections (PN 16), and include non‑return valves, isolating valves, pressure gauge, pressure transmitter, and a diaphragm tank (18 l). The system is controlled by a Grundfos CU 352 pump controller (IP54) with constant‑pressure PID control, automatic cascade operation, pump changeover, and monitoring functions.
Suitable Applications
- Commercial heating
- Commercial water pressure boosting
- District heating
- District cooling
- Wash and clean
- Industrial heating
- Cooling
- Industrial water supply
- Desalination
- Drinking water treatment
- Water distribution
- Irrigation
- Community water supply
- Wastewater treatment
- Rotor & spray irrigation
- Ground water transfer
- Pivot
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
- Booster systems with frequency-controlled pumps
Key Specifications
| Product Name | Hydro MPC-E 2 CRNE 45-3 |
| Product Number | 99734655 |
| EAN | 5713833554644 |
| Pump Type | Booster system with 2 parallel‑connected frequency‑controlled CRNE multistage centrifugal pumps |
| Number of Pumps | 2 |

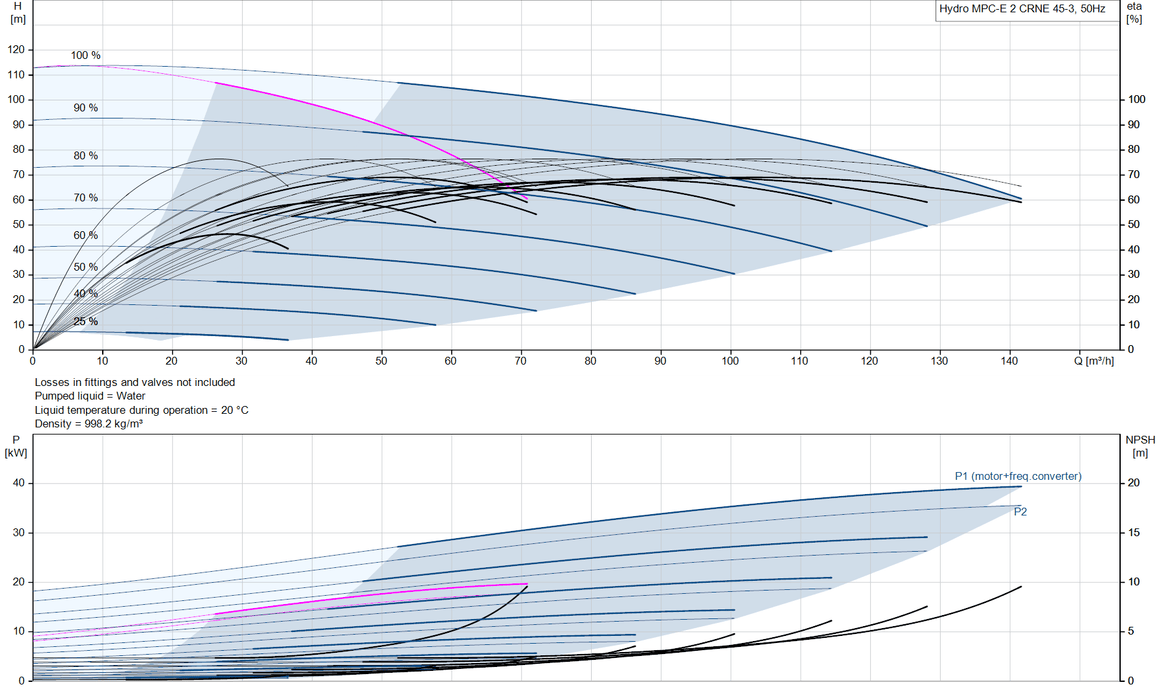

| Rated Flow | 108 m³/h |
| Max. Flow | 140 m³/h |
| Rated Head | 86 m |
| Max. Head | 110 m |
| Main Pump Name | CRNE 45-3 |
| Main Pump Product No | 96123438 |
| Liquid Temperature Range | 5 .. 60 °C |
| Maximum Operating Pressure | 16 bar |
| Pressure Rating | PN 16 |

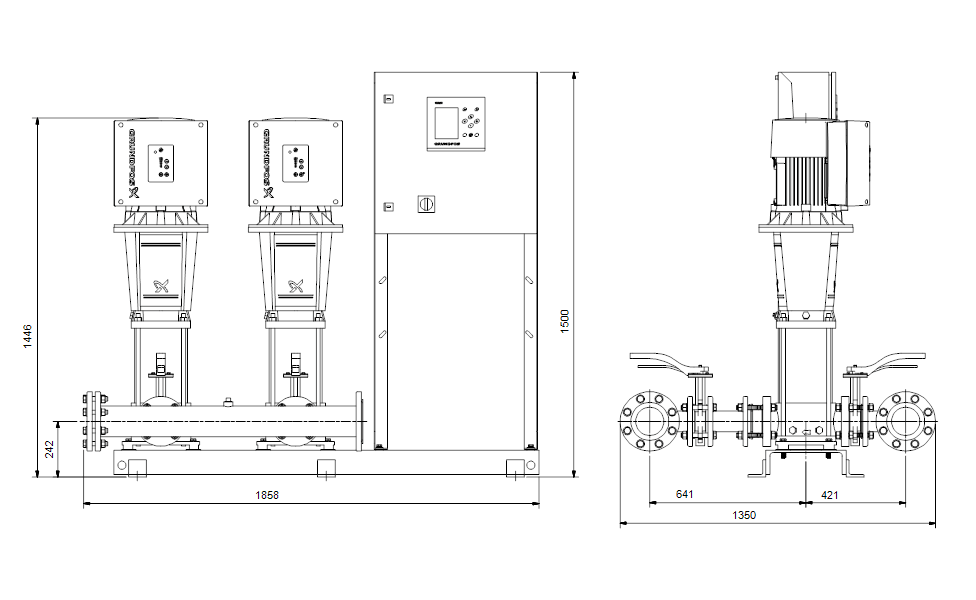

| Connections | Manifold inlet/outlet: DN150 |
| Manifold Material | EN 1.4571 / AISI 316 Ti |
| Earth Connection | N, PE |
| System Design | A |
| Range of Ambient Temperature | 5 .. 40 °C |
| Motor Power (P2) | 18.5 kW |
| Voltage | 3 x 380-415 V |
| Frequency | 50 / 60 Hz |
| Rated Current of System | 71.8 A |
| Number of Phases (Main Pump) | 3 |
| Start Method | Variable frequency drives |
| Enclosure Class | IP54 |
| Radio Interference Suppression | EMC DIRECTIVE(2014/30/EU) |
| Control Type | E (CU 352) |
| Dry Running Protection, Mechanical | NONE |
| Tank Volume | 18 l |
| Diaphragm Tank | Yes |
| Net / Gross Weight | 804 kg / 906 kg |
| Sales Region | Australia |
| Config. file no. pump | 95139531 |
| Config. file no. Control MPC | 98271946 |
| Config. file no. Hydro MPC | 98272018 |
| Country of Origin | AU |
| Custom Tariff No. | 8413709062 |
